Seaflo
DP101004023A

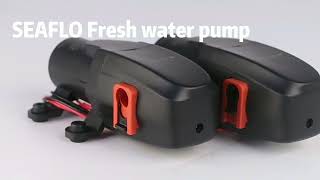

Seaflo Water Pressure Pump - 23A Series 12V 1.0 GPH / 3.8 LPH
Product Overview
The water pressure pump - 23A series has: A 2 chamber diaphragm pump, an on-demand long life pressure switch. Is self-priming and capable of being run dry. Compact housing, ignition protected and quiet running with rubber feet for vibration and noise reduction.
- Multiple connector options
- Bypass technology reduces cycling
- Industry standard mount pattern
- Marine grade blocked wiring
- Waterproof grade IP54 with extra cover 60°C (140°F) temperature limit
- Shut-off pressure 35 PSI: 25 PSI±5 PSI (±0.3 bar) Shut-off pressure 40 PSI: 30 PSI±5 PSI (±0.3 bar) Shut-off pressure 70 PSI: 56 PSI±5 PSI (±0.3 bar)
- Valves: EPDM Diaphragm: Santoprene Inlet/Outlet Ports: 5/8" quick connector
- CE, RoHS
- 4 Year Warranty
Details
| Weight2 | 700 g |
|---|---|
| Brand | Seaflo |
| Voltage | 12 V |
| Flow Rate | 1.0 GPH / 3.8 LPH |
| Control Type | Switch & Bypass |
| Wire Connector | 18 AWG x 35 cm |
| Priming Capabilities | 1.5 m / 5' |
| Max Draw | 3.8 A |
| Shut off pressure PSI BAR | 40 / 2.8 |
| Barcode | 6971170933037 |
| Manufacturer Warranty | 4 Years |
