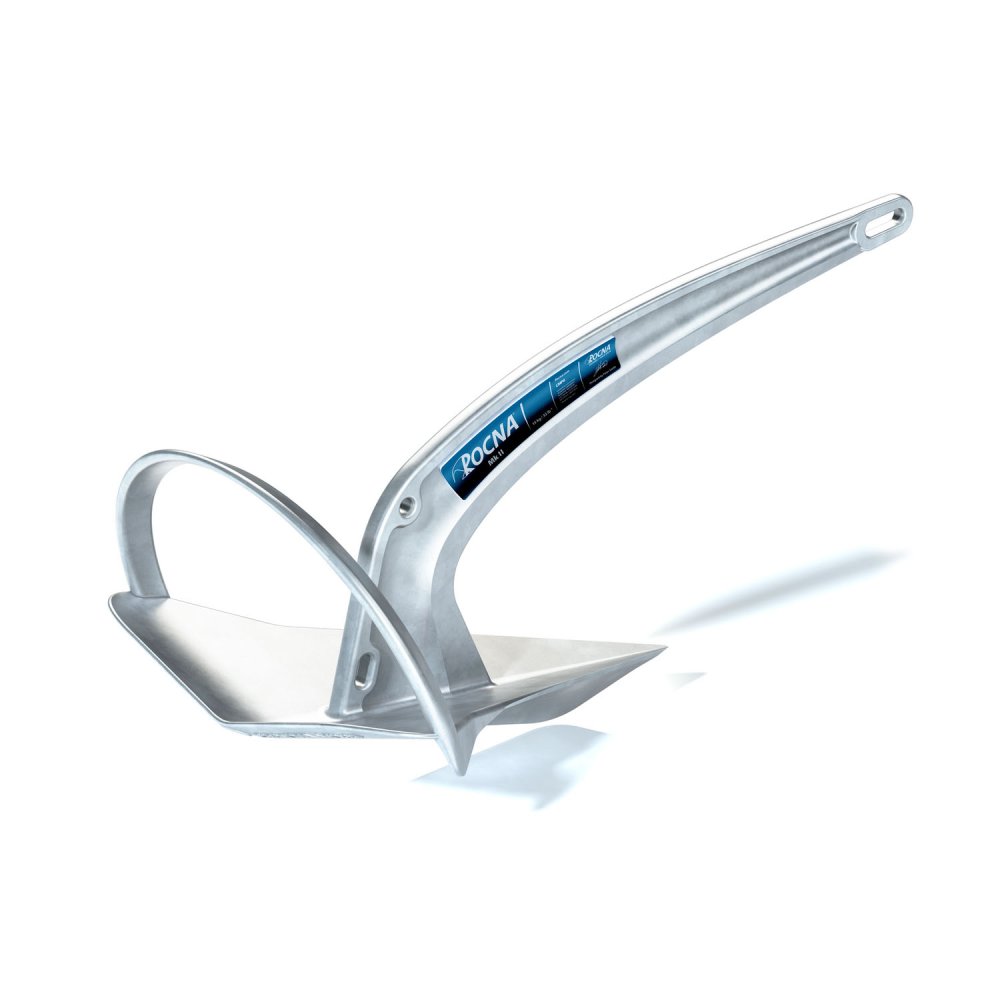

Rocna Mk2 Galvanised Anchor

Product Overview

The Rocna Mk2 Anchor is based on the original and proven design pattern but refines every element close to perfection. This range is a true multi-purpose anchor range that sets and holds in most seabeds, from soft mud to hard sand, clay, grass, and kelp. Precision setting: The roll-foil™ (A) ensures that the anchor always arrives at the ideal angle for penetration, and helps the skids guide the fluke tip which chisels into the seabed for an instant reliable burial. A concave fluke (C) gives the greatest resistance. In soft seabeds, this provides the secure holding power you need. On hard or weedy sea floors, the weighted chisel tip (B) cuts through and bites deep.
Roll-Foil™: Sculpted from the Rocna roll-bar, the patented roll-foil™ (A) provides even surer self-righting for the most dependable set. The roll-foil’s sections vary in profile, each designed for its own dynamic role: to provide extra assistance if the anchor lands upside-down, to help during setting for deeper penetration and greater holding once buried (1), and to improve soil flow for reduced clogging.
I+V PROFILE™ SHANK: Working with high tensile steel, the Rocna Mk II shank (E) is further strengthened by our patented I+V profile™ design. This computer optimized I-beam geometry brings higher resistance to bending, and the Mk II has the toughest Rocna shank of all. The I+V profile also further improves setting performance as the lower V-edge cuts into the seabed. This helps the anchor penetrate more easily to a deep and secure burial.
FLUKE: The Rocna fluke (C) has been redesigned and optimized for weight distribution, penetration, and strength. It enjoys a new weighted and reinforced tip (B). Steel moved (2) from where it is extraneous, to where it aids. The tried-and-true Rocna fluke is increased in surface area (3), for a substantial boost in holding power. And all attained with no trade-offs.


Details

Material Galvanised steel
Brand Rocna
Product CodeProduct TitleMaterialQty Per PackABCDEFSWidthWeightBrand
RM2004GS Rocna Mk2 Galvanised Anchor 4kg Galvanised Steel 1 529 mm 365 mm 152 mm 132 m 99 mm 93 mm 66 mm 271 mm 4 kg Rocna
RM2006GS Rocna Mk2 Galvanised Anchor 6kg Galvanised Steel 1 606 mm 418 mm 174 mm 151 mm 114 mm 107 mm 75 mm 310 mm 6 kg Rocna
RM2009GS Rocna Mk2 Galvanised Anchor 9kg Galvanised Steel 1 694 mm 479 mm 199 mm 172 mm 130 mm 122 mm 86 mm 355 mm 9 kg Rocna
RM2012GS Rocna Mk2 Galvanised Anchor 12kg Galvanised Steel 1 763 mm 527 mm 219 mm 190 mm 143 mm 135 mm 95 mm 390 mm 12 kg Rocna
RM2015GS Rocna Mk2 Galvanised Anchor 15kg Galvanised Steel 1 822 mm 568 mm 236 mm 204 mm 154 mm 145 mm 102 mm 421 mm 15 kg Rocna
RM2020GS Rocna Mk2 Galvanised Anchor 20kg Galvanised Steel 1 905 mm 625 mm 260 mm 225 mm 170 mm 160 mm 112 mm 463 mm 20 kg Rocna
RM2025GS Rocna Mk2 Galvanised Anchor 25kg Galvanised Steel 1 975 mm 673 mm 280 mm 242 mm 183 mm 172 mm 121 mm 499 mm 25 kg Rocna
RM2033GS Rocna Mk2 Galvanised Anchor 33kg Galvanised Steel 1 1069 mm 738 mm 307 mm 266 mm 200 mm 189 mm 133 mm 547 mm 33 kg Rocna
RM2040GS Rocna Mk2 Galvanised Anchor 40kg Galvanised Steel 1 1140 mm 787 mm 328 mm 284 mm 214 mm 201 mm 141 mm 583 mm 40 kg Rocna
RM2050GS Rocna Mk2 Galvanised Anchor 50kg Galvanised Steel 1 1228 mm 848 mm 353 mm 305 mm 230 mm 217 mm 152 mm 628 mm 50 kg Rocna
