Scanstrut Pole Mounts
Product Overview
SC100 pole mount range installs your radar onto the deck or transom of your boat. Supplied as a complete kit
- Two choices of heights; 1.9 m (6.4 ’) reco mmended for deck mounting and 2.5 m (8.3 ’) reco mmended for transom mounting
- Constructed in 6082 Aluminium and polyester powder coated with extra durable and gloss white finish
Details
| Brand | scanstrut |
|---|
Related file downloads
| Filename | Format | ||
|---|---|---|---|
 |
SC110-Technical-Drawing.pdf | Click to download | |
|
SC111-Technical-Drawing.pdf | Click to download | |
|
SC101- Installation instructions.pdf | Click to download | |
|
SC117 - Installation Instructions.pdf | Click to download | |
|
SC120-Installation-Instructions.pdf | Click to download |
| Product Code | Product Title | Height | Brand |
|---|---|---|---|

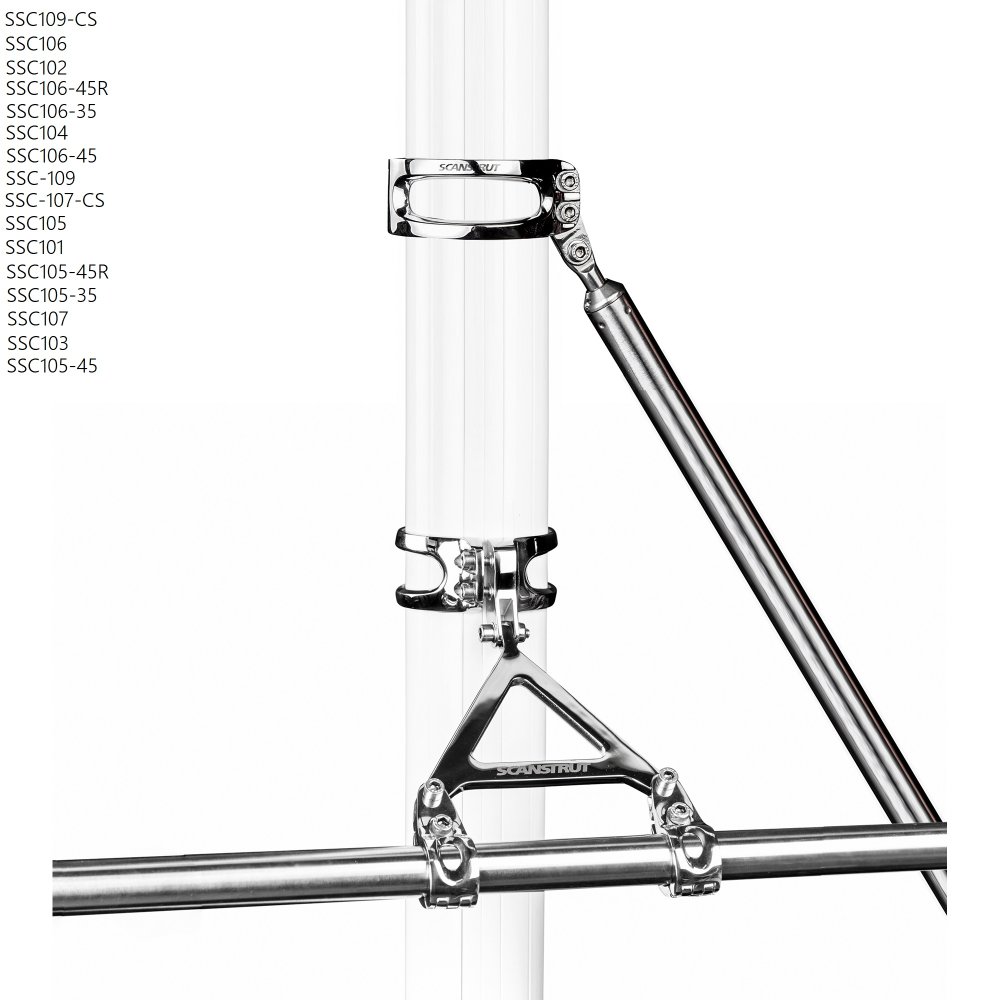

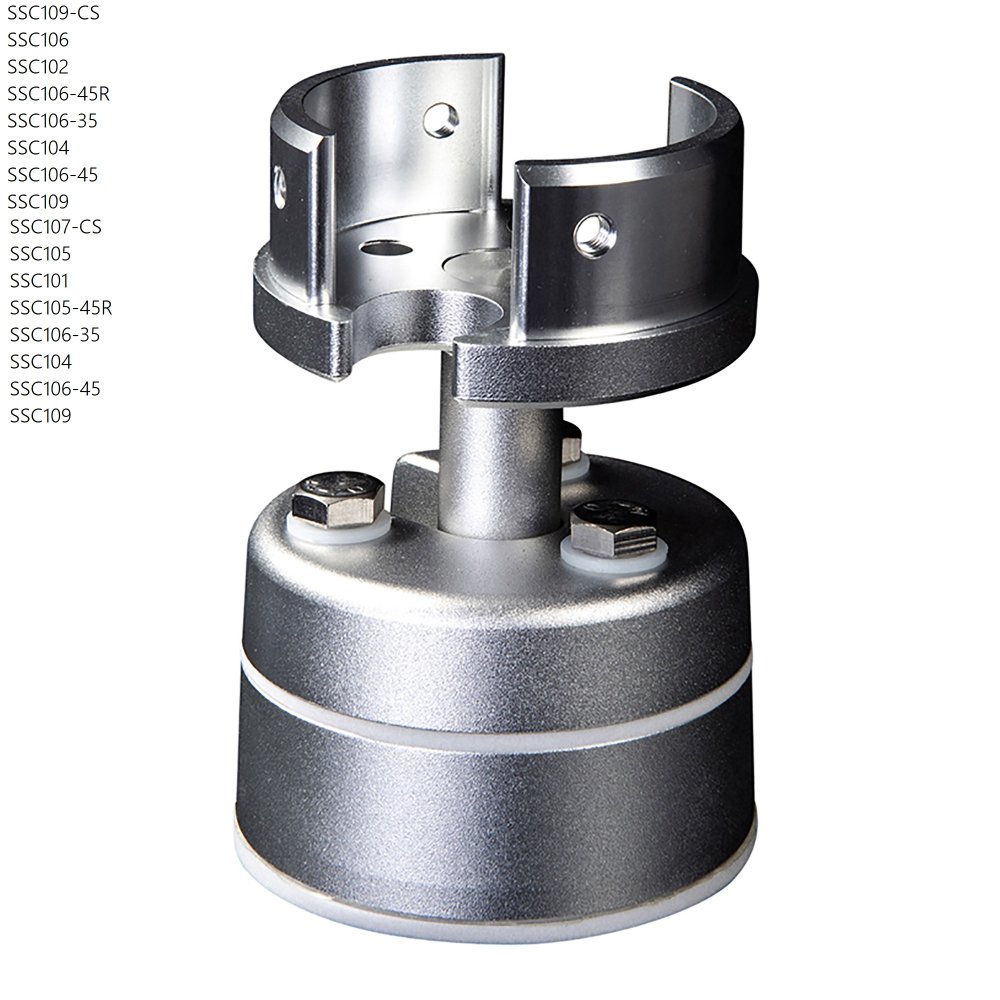

| SSC101 | Scanstrut 1.9 M (6.4’) Complete Pole System For Raymarine, Garmin & Navico Radomes | 1.9 mtr | Scanstrut |
| SSC102 | Scanstrut 2.5 M (8.3 ’) Complete Pole System For Raymarine, Garmin & Navico Radomes | 2.5 mtr | Scanstrut |
| SSC103 | Scanstrut 1.9 M (6.4 ’) Complete Pole System For All Other 2 kW/4 KW Radomes | 1.9 mtr | Scanstrut |
| SSC104 | Scanstrut 2.5 M (8.3 ’) Complete Pole System For All Other 2 kW/4 KW Radomes | 2.5 mtr | Scanstrut |
| SSC105 | Scanstrut 1.9 M (6.4’) Complete Pole System For Small Satcom Antennas | 1.9 mtr | Scanstrut |
| SSC105-35 | Scanstrut 1.9 M (6.4 ’) Complete Pole System For Raymarine 37STV, Intellian i3, Sea-Tel Coastal 14 | 1.9 mtr | Scanstrut |
| SSC105-45 | Scanstrut 1.9 M (6.4 ’) Complete Pole System For 40 CM Satcom/tv Antennas | 1.9 mtr | Scanstrut |
| SSC105-45R | Scanstrut 1.9 M (6.4 ’) Complete Pole System For Raymarine STV45 / Intellian i4 | 1.9 mtr | Scanstrut |
| SSC106 | Scanstrut 2.5 M (8.3 ’) Complete Pole System For Small Satcom Antennas | 2.5 mtr | Scanstrut |
| SSC106-35 | Scanstrut 2.5 M (8.3 ’) Complete Pole System For Raymarine 37STV, Intellian i3, Sea-Tel Coastal 14 | 2.5 mtr | Scanstrut |
| SSC106-45 | Scanstrut 2.5 M (8.3 ’) Complete Pole System For 40 CM Satcom/tv Antennas | 2.5 mtr | Scanstrut |
| SSC106-45R | Scanstrut 2.5 M (8.3 ’) Complete Pole System For Raymarine STV45 / Intellian i4 | 2.5 mtr | Scanstrut |
| SSC107 | Scanstrut 1.9 M (6.4 ’) Complete Pole System For Iridium Pilot Antenna | 1.9 mtr | Scanstrut |
| SSC107-CS | Scanstrut 1.9 M / 75 in Satcom Pole Mount | 1.9 mtr | Scanstrut |
| SSC109 | Scanstrut 2.5 M (6.4’) Complete Pole System For Iridium Pilot Antenna | 2.5 mtr | Scanstrut |
| SSC109-CS | Scanstrut 2.5 M / 98 in Satcom Pole Mount | 2.5 mtr | Scanstrut |

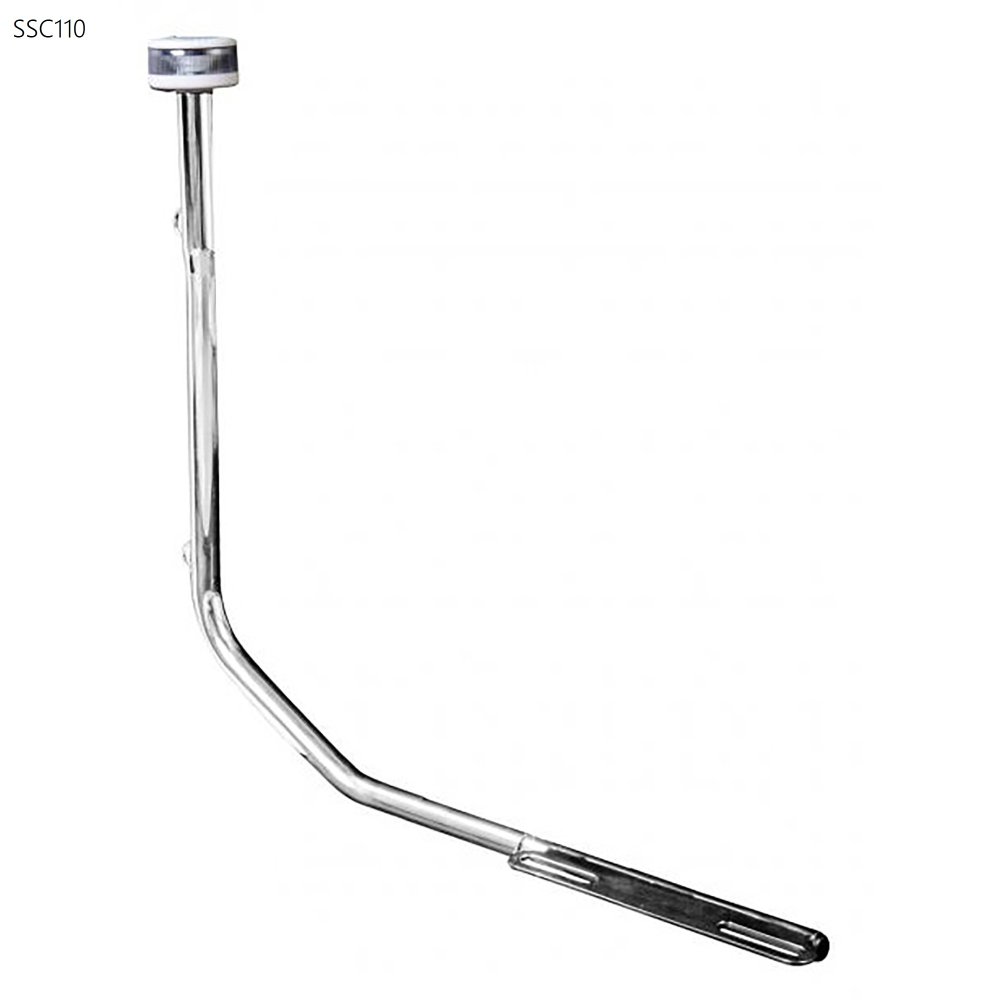

| SSC110 | Scanstrut Nav Light Mount - fits Perko 200 Series, Aqua Signal Series 25 & 40 (Port Mounted) | Scanstrut | |

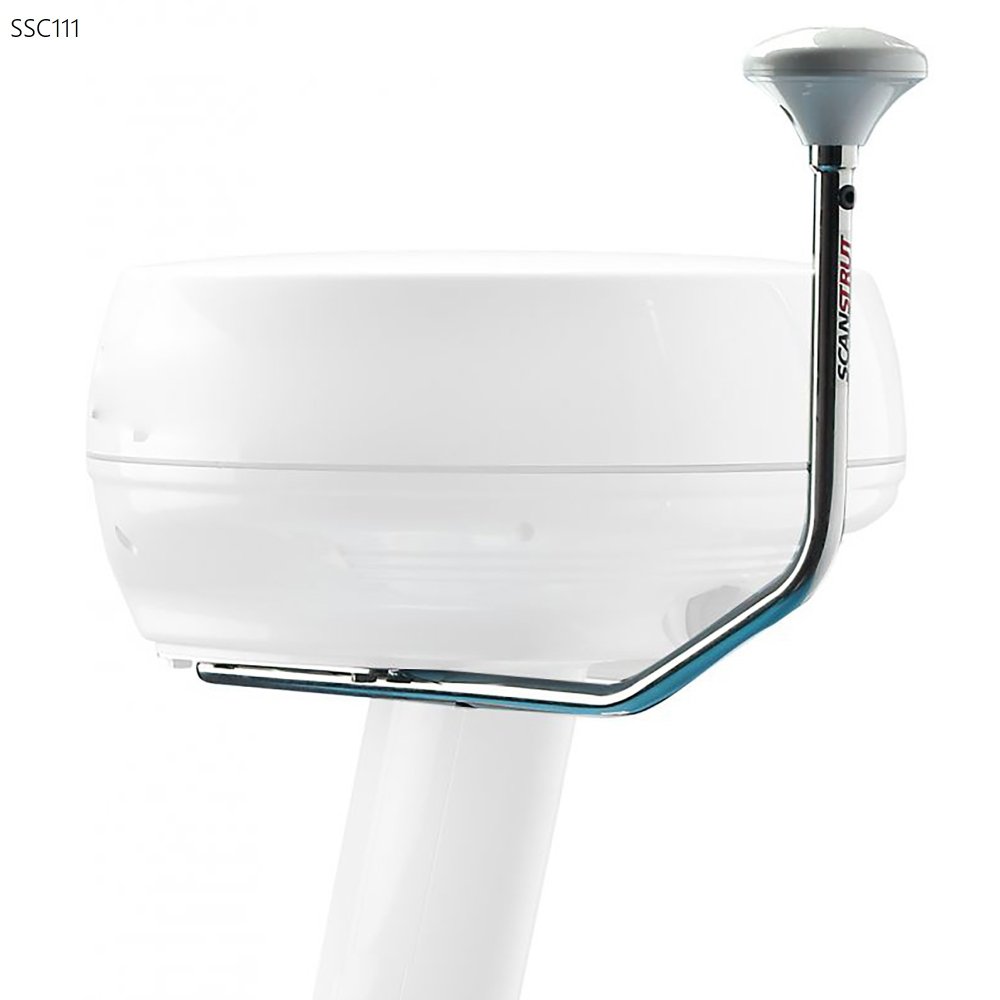

| SSC111 | Scanstrut GPS / VHF / Navtex Antenna Mount (starboard Mounted) | Scanstrut | |

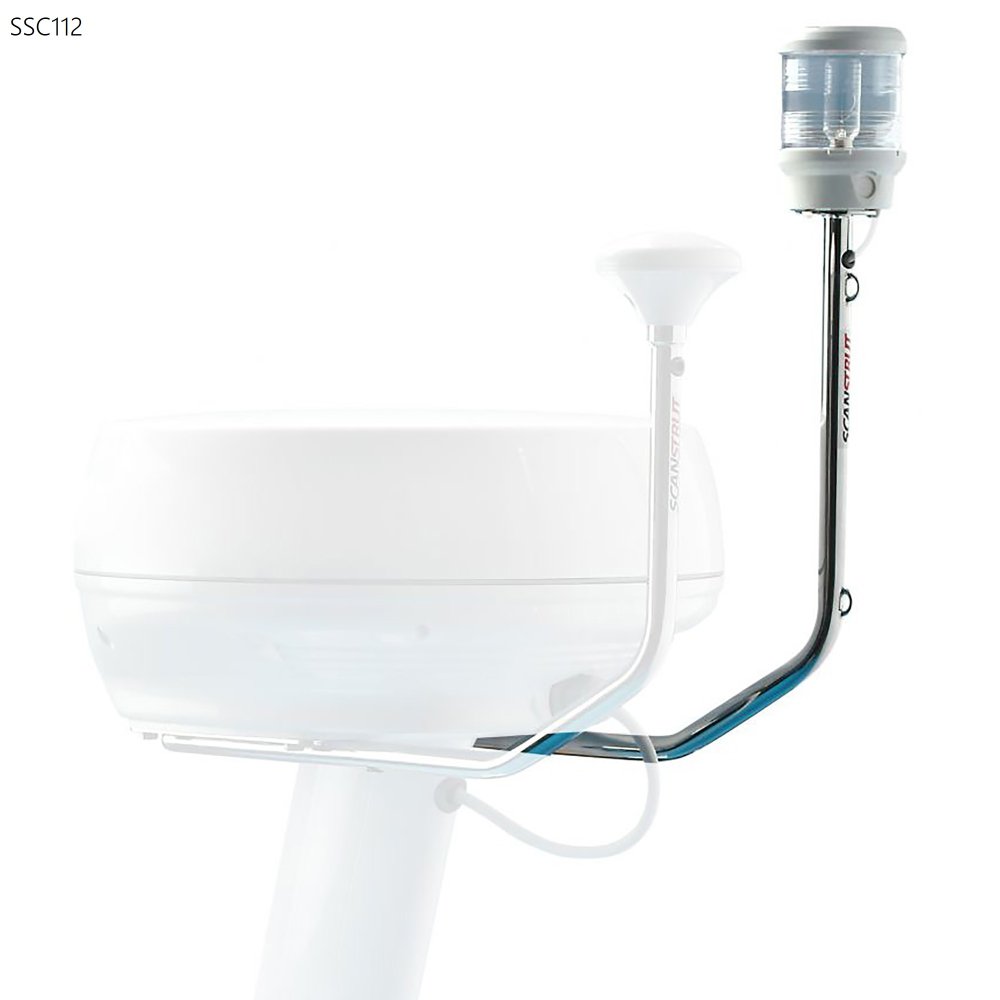

| SSC112 | Scanstrut GPS / VHF / Navtex Antenna Mount (Port Mounted) | Scanstrut | |

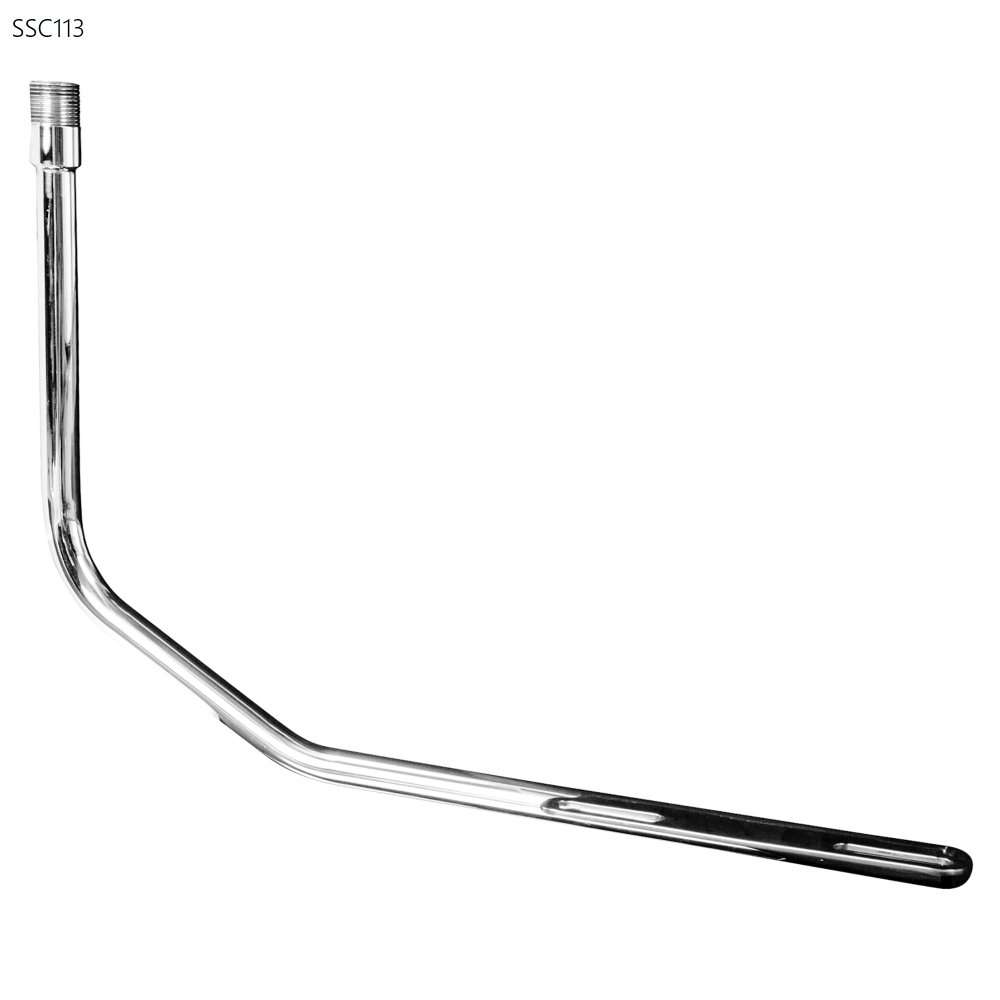

| SSC113 | Scanstrut Integrated Hella LED Nav Light Mount | Scanstrut | |

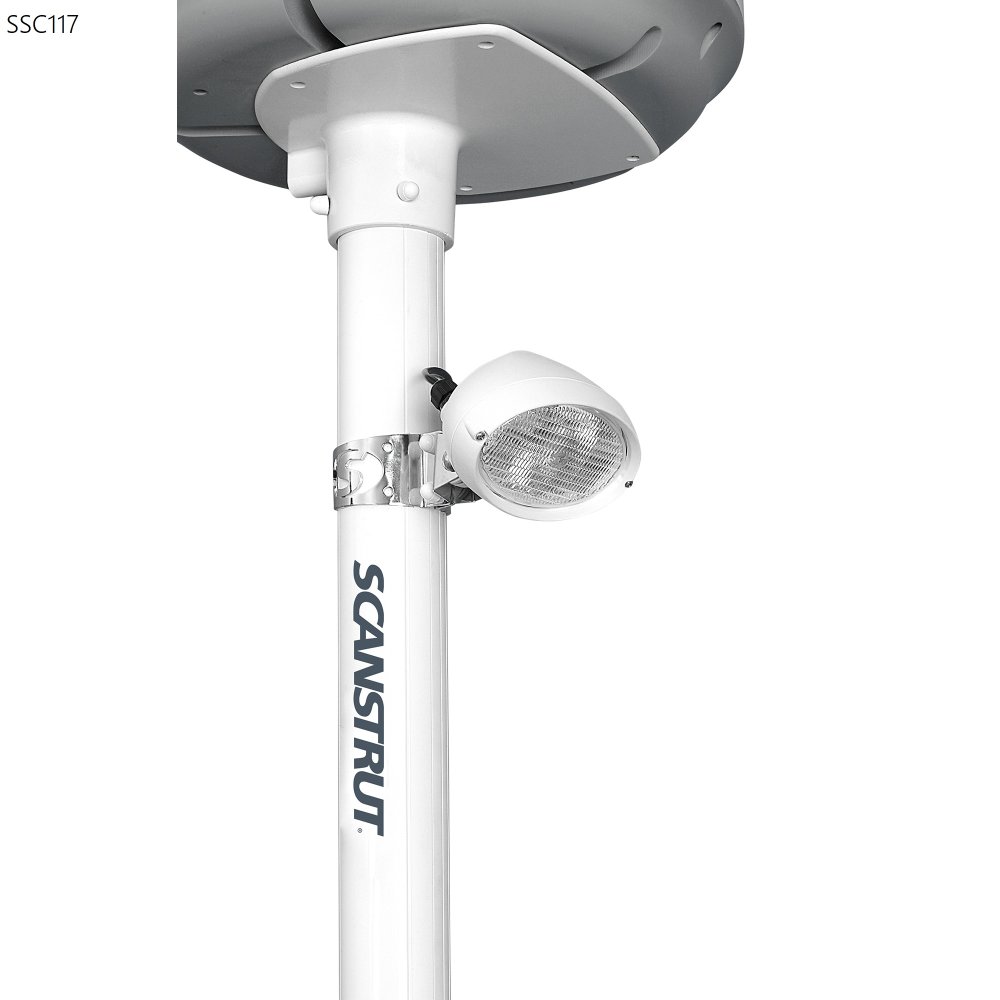

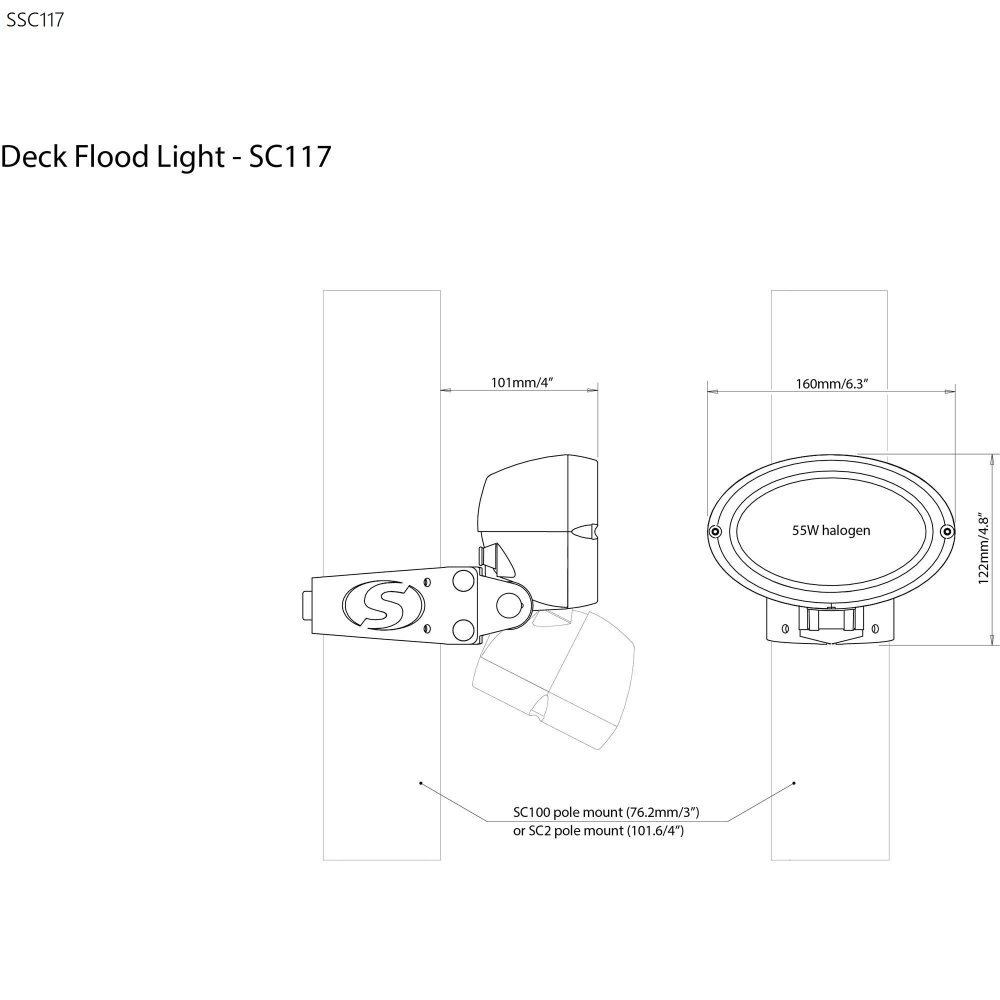

| SSC117 | Scanstrut Deck flood light - Module 70 LED (2500 Lumen) With all fixings | Scanstrut | |

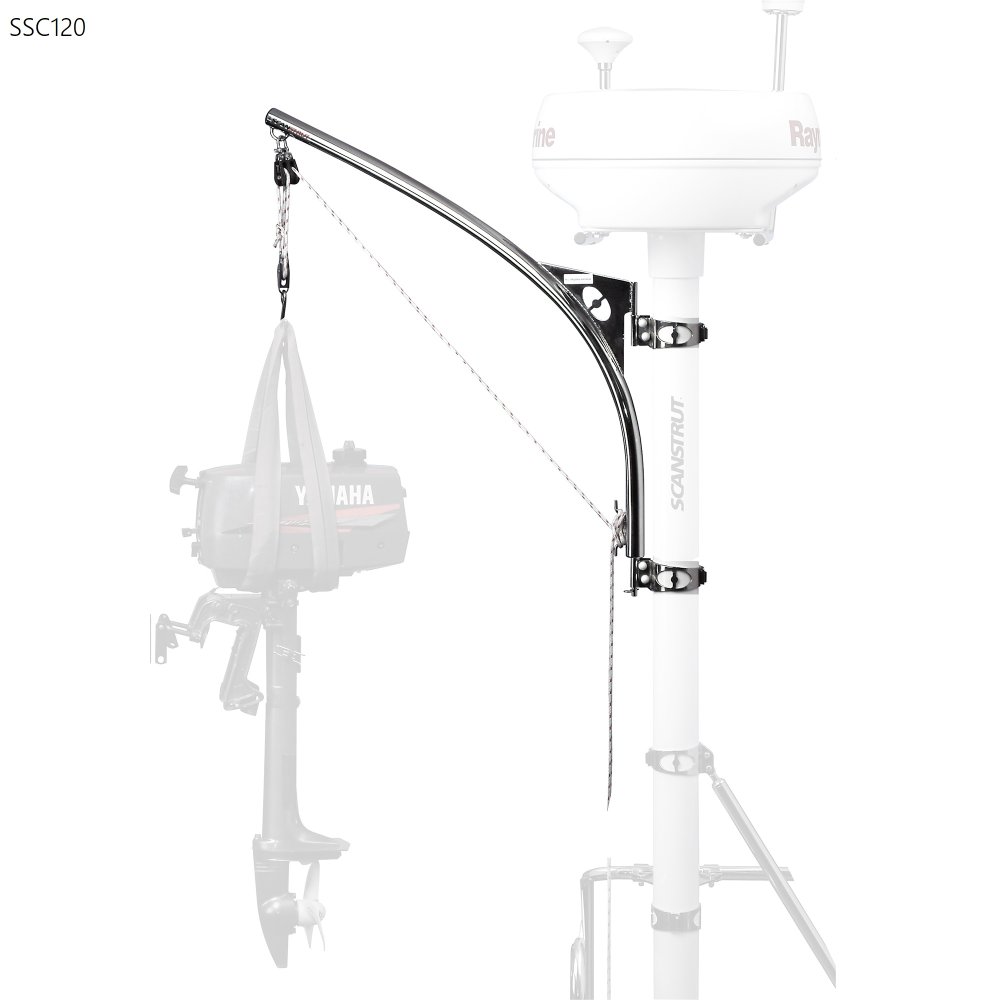

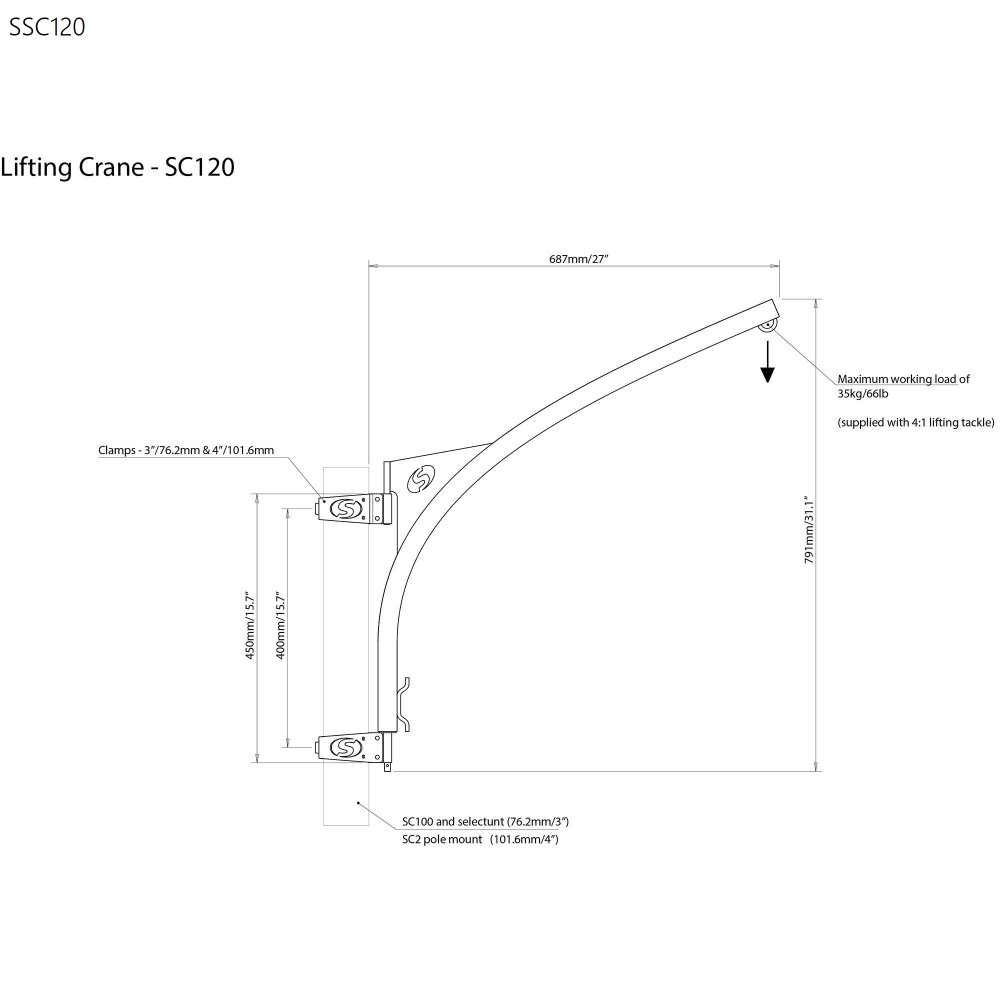

| SSC120 | Scanstrut LiFTing crane - complete With all fixings And tackle | Scanstrut |
