Scanstrut Aluminium Power Tower®
Product Overview
Aluminium PowerTower® has been designed and engineered to install your radar on the roof, T-top, flybridge or radar arch of your powerboat, providing the clearest view of the horizon allowing you to get the best performance from your radar in all conditions
- Pre-drilled mounting holes allow the radar to fasten straight to the PowerTower®
- No need to cut the radar’s connectors off for installation
- Available in 2 heights
- Available in Aft or Forward leaning designs
- Constructed from the best Marine grade Aluminium
- Range of accessories light bars can be bolted to the back of the PowerTower
Details
| Brand | Scanstrut |
|---|
Related file downloads
| Filename | Format | ||
|---|---|---|---|
 |
SAPT-150-01-BLK-Installation-Instructions.pdf | Click to download | |
|
SAPT-150-01-Installation-Instructions.pdf | Click to download | |
|
SAPT-250-02-Installation-Instructions.pdf | Click to download | |
|
SAPT6002-Installation-Instructions.pdf | Click to download | |
|
SAPT6003-Installation-Instructions.pdf | Click to download | |
|
SAPT-150-01-BLK-Technical-Drawing.pdf | Click to download | |
|
SAPT-150-01-Technical-Drawing.pdf | Click to download | |
|
SAPT-150-02-Technical-Drawing.pdf | Click to download | |
|
SAPT-250-01-BLK-Technical-Drawing.pdf | Click to download | |
|
SAPT6002-Technical-Drawing.pdf | Click to download | |
|
SAPT6003-Technical-Drawing.pdf | Click to download | |
|
SAPT-F-150-01-Technical-Drawing.pdf | Click to download | |
|
SAPT-F-150-02-Technical-Drawing.pdf | Click to download | |
|
SAPT-F-250-01-Technical-Drawing.pdf | Click to download | |
|
SAPT-F-250-02-Technical-Drawing.pdf | Click to download |
| Product Code | Product Title | Material | Colour | Height | Brand |
|---|---|---|---|---|---|

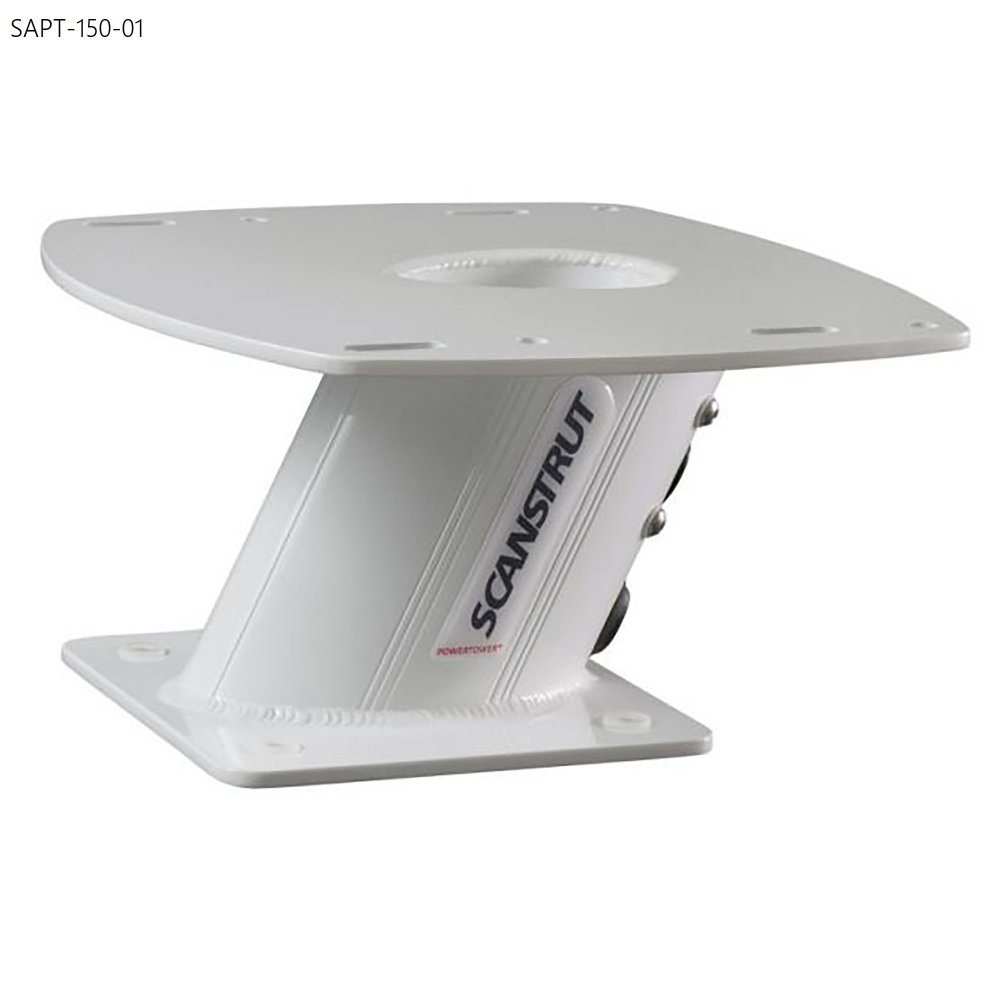

| SAPT-150-01 | Scanstrut Aluminium PowerTower® For Raymarine, Garmin & Navico 150 MM / 6 in Radomes | Aluminium | White | 150 mm | Scanstrut |

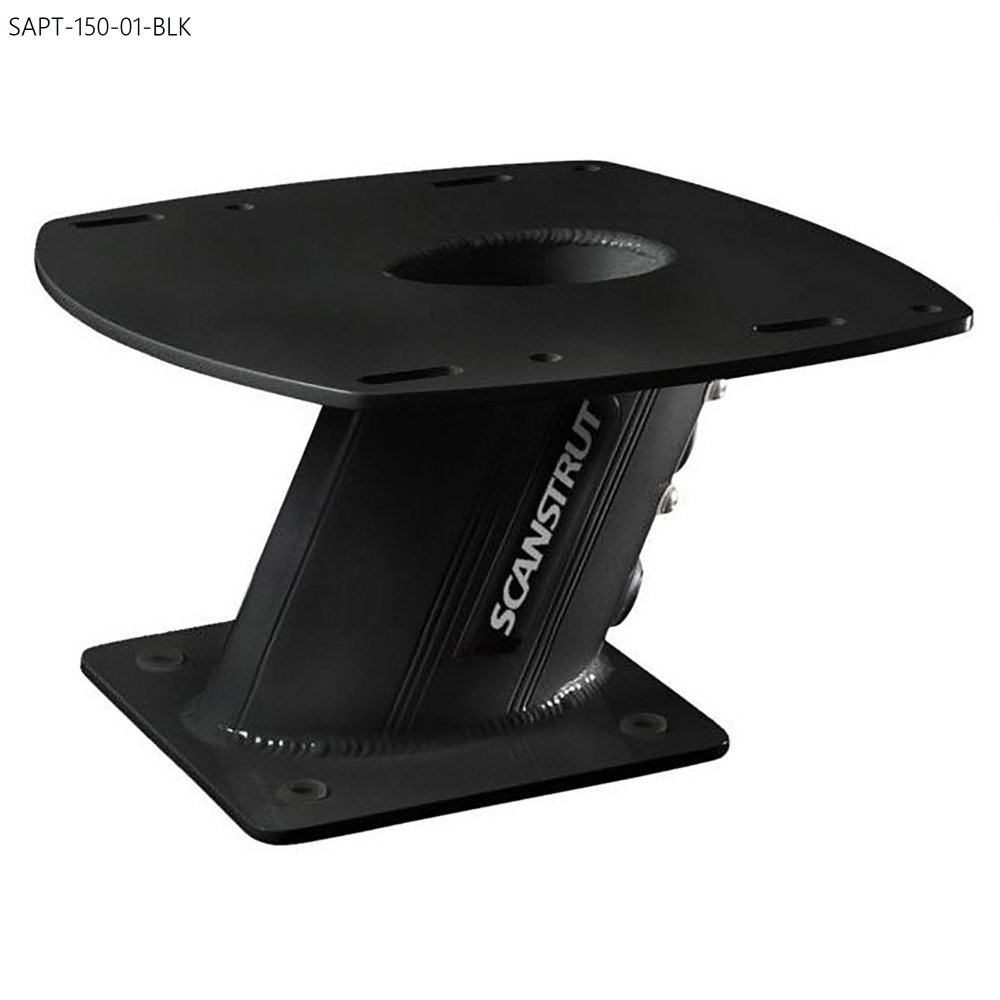

| SAPT-150-01-BLK | Scanstrut Aluminium PowerTower® For Raymarine, Garmin & Navico Radar 150 MM / 6 in | Aluminium | Black | 150 mm | Scanstrut |
| SAPT-150-02 | Scanstrut Aluminium PowerTower® For Furuno 150 MM / 6 in Radomes | Aluminium | White | 150 mm | Scanstrut |

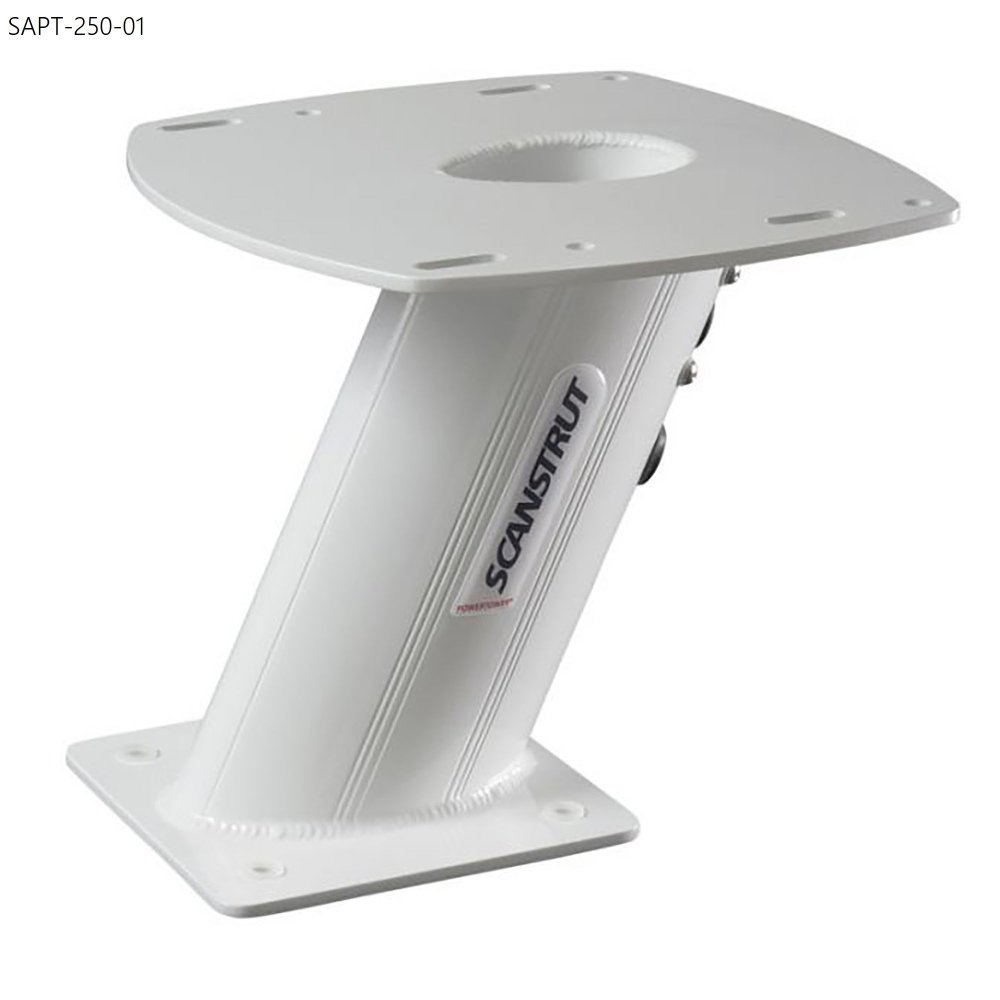

| SAPT-250-01 | Scanstrut Aluminium PowerTower® For Raymarine, Garmin & Navico 250 MM / 10" Radomes | Aluminium | White | 250 mm | Scanstrut |

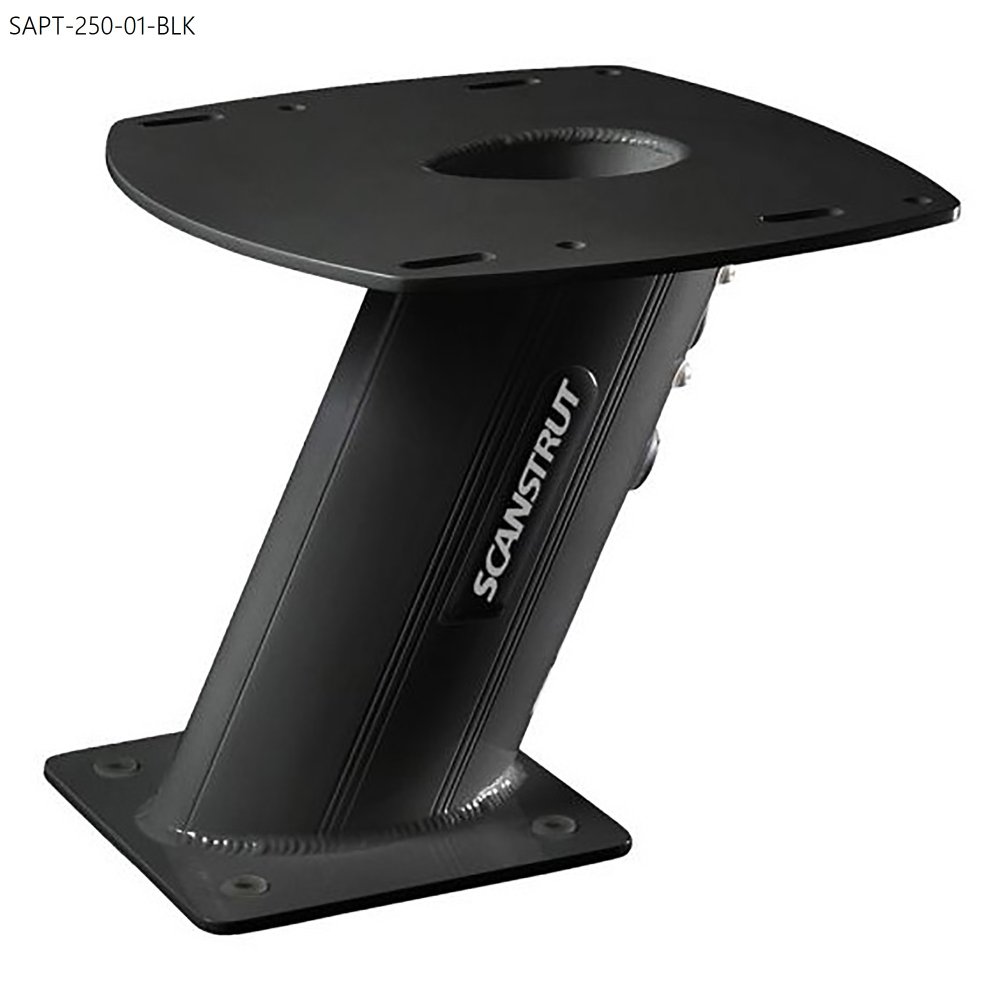

| SAPT-250-01-BLK | Scanstrut Aluminium PowerTower® For Raymarine, Garmin & Navico Radar 250 MM / 10 in | Aluminium | Black | 250 mm | Scanstrut |
| SAPT-250-02 | Scanstrut Aluminium PowerTower® For Furuno 250 MM / 10" Radomes | Aluminium | White | 250 mm | Scanstrut |

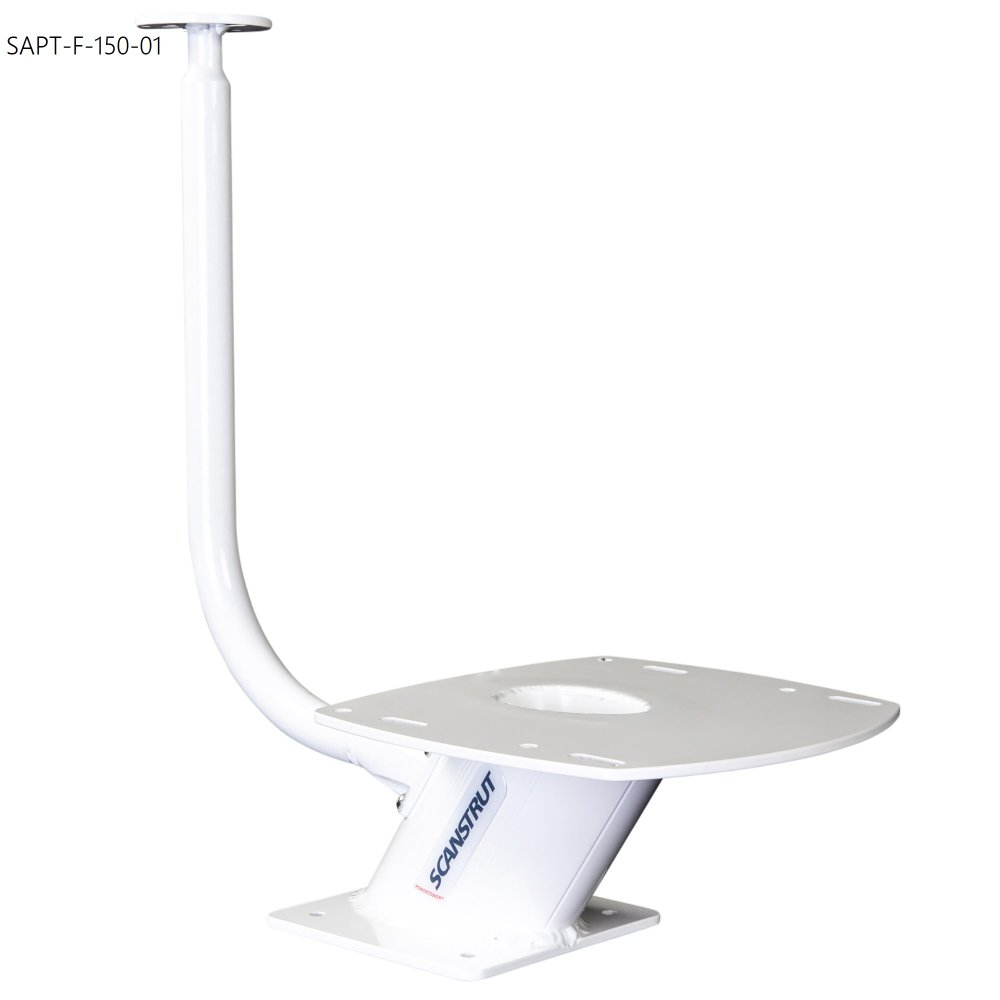

| SAPT-F-150-01 | Scanstrut Aluminium PowerTower® Forward Leaning 150 MM / 6 in For Radomes | Aluminium | White | 150 mm | Scanstrut |

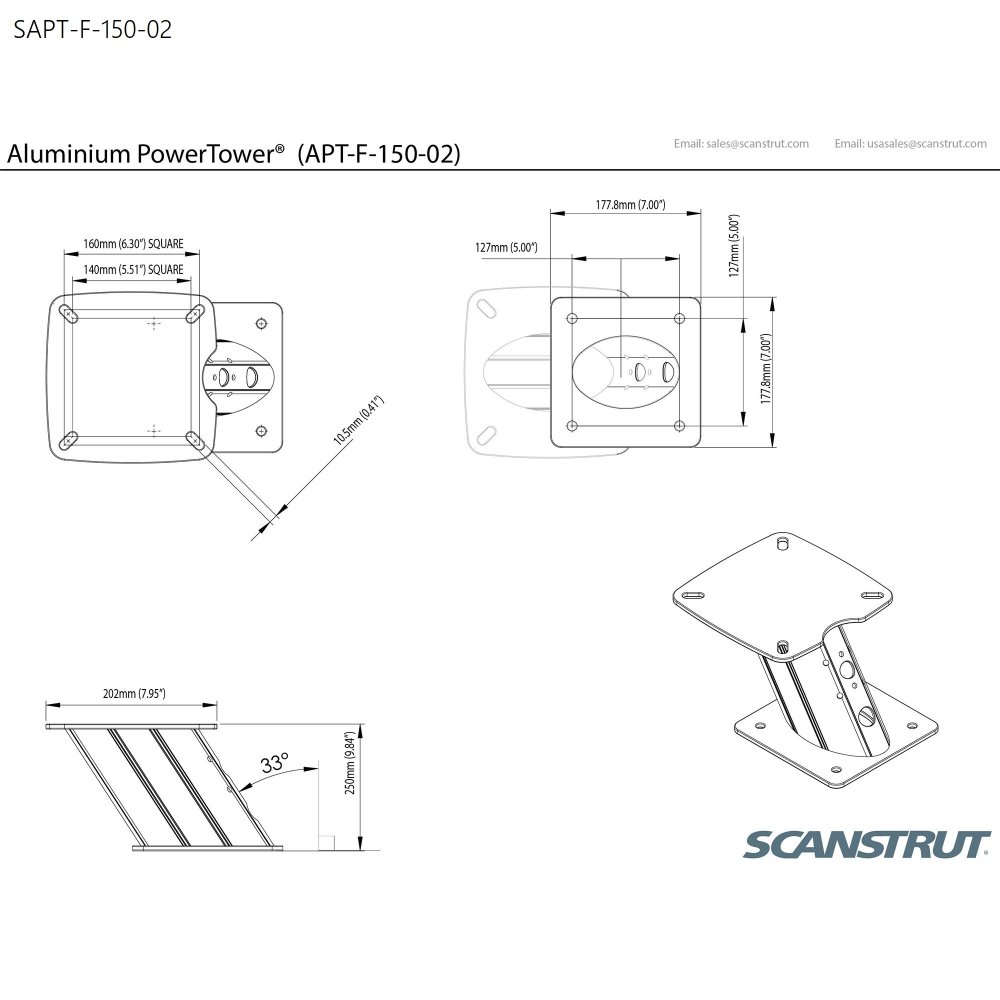

| SAPT-F-150-02 | Scanstrut Aluminium PowerTower® Forward Leaning For Furuno 150 MM / 6 in For Radomes | Aluminium | White | 150 mm | Scanstrut |

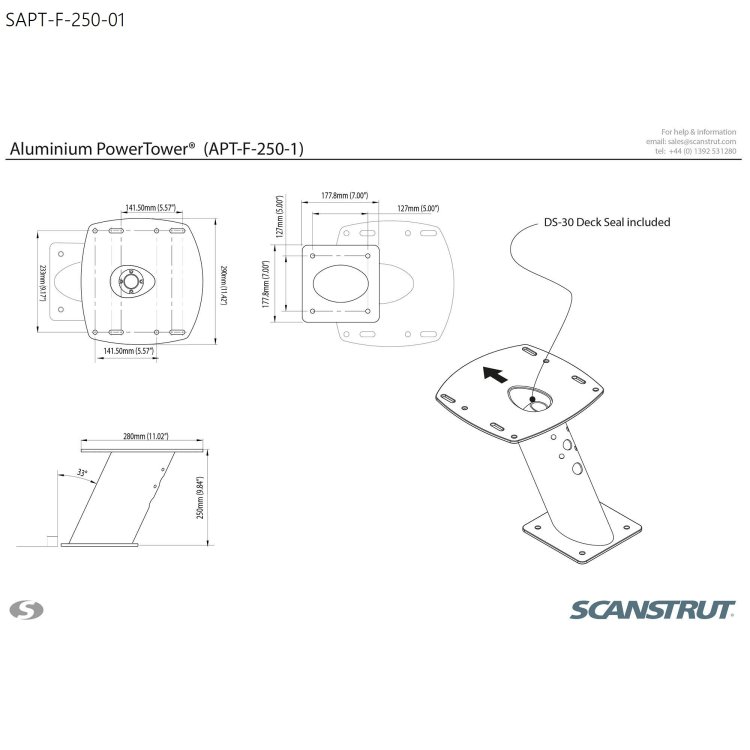

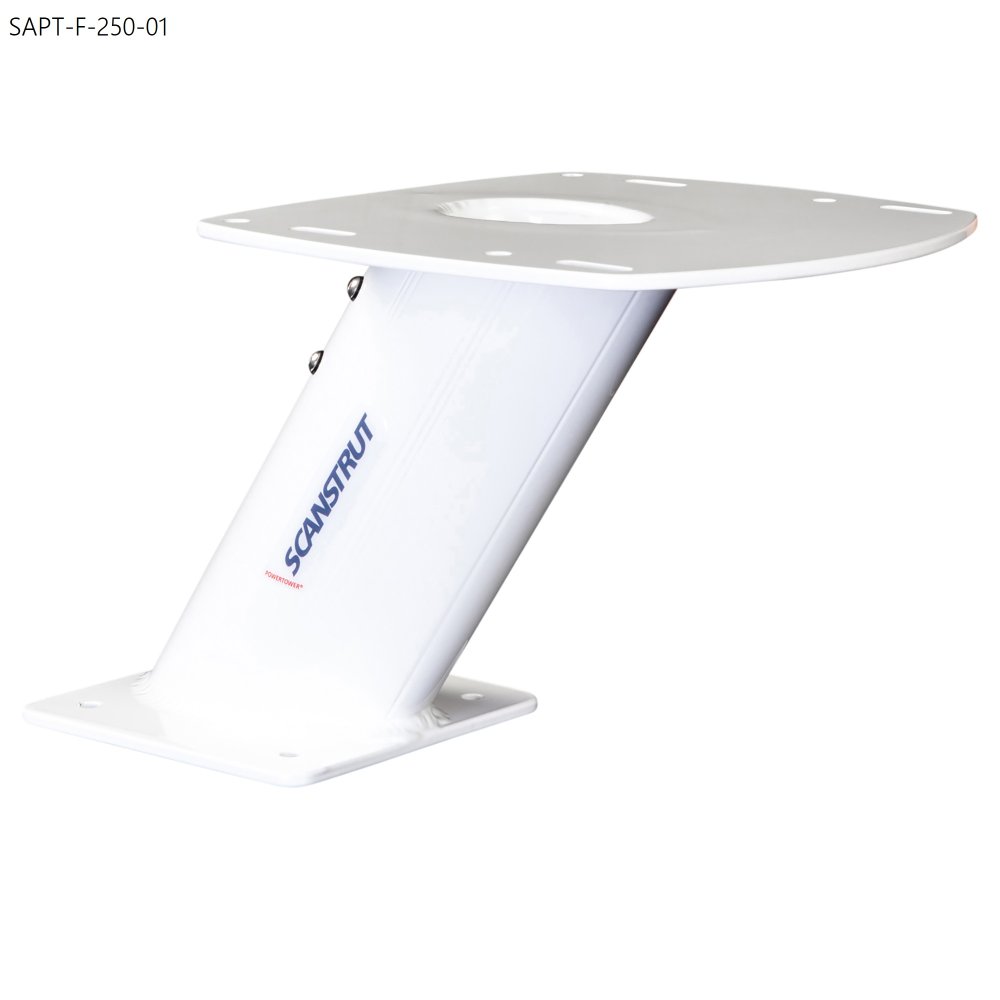

| SAPT-F-250-01 | Scanstrut Aluminium PowerTower® Forward Leaning 250 MM / 10 in For Radomes | Aluminium | White | 250 mm | Scanstrut |

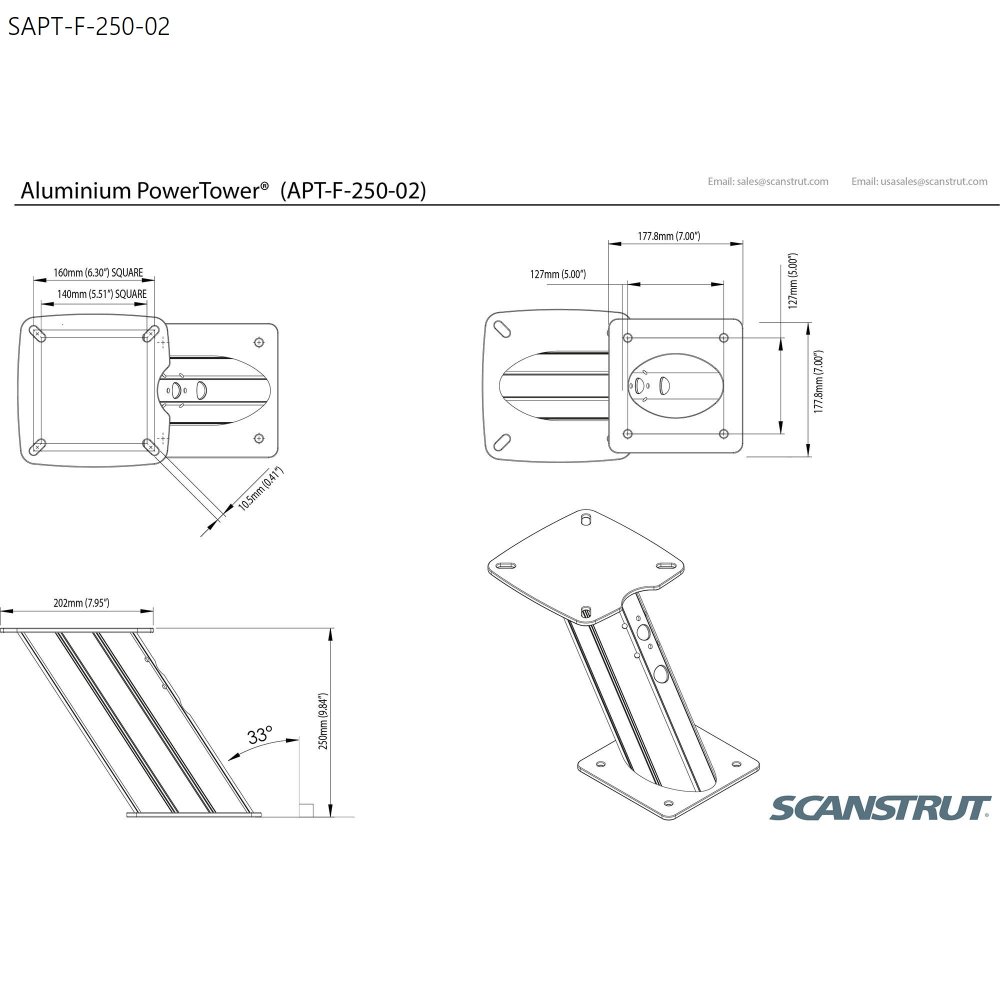

| SAPT-F-250-02 | Scanstrut Aluminium PowerTower® Forward Leaning For Furuno 250 MM / 10 in For Radomes | Aluminium | White | 250 mm | Scanstrut |

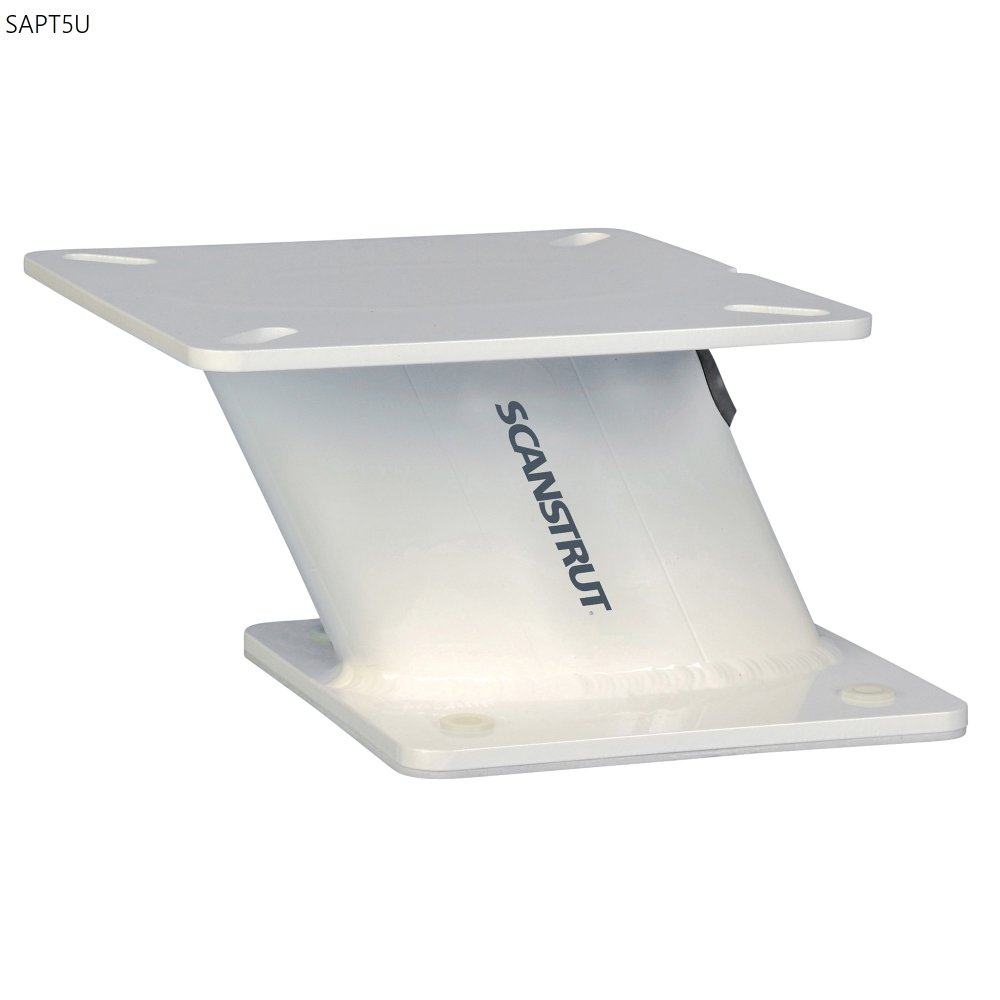

| SAPT5U | Scanstrut Aluminium PowerTower® For All Other Radomes 130 MM (5 in) | Aluminium | White | 130 mm | Scanstrut |
| SAPT6002 | Scanstrut Aluminium PowerTower® For 4 ’ / 6 ’ Open Array 150 MM (6 in) | 150 mm | Scanstrut | ||

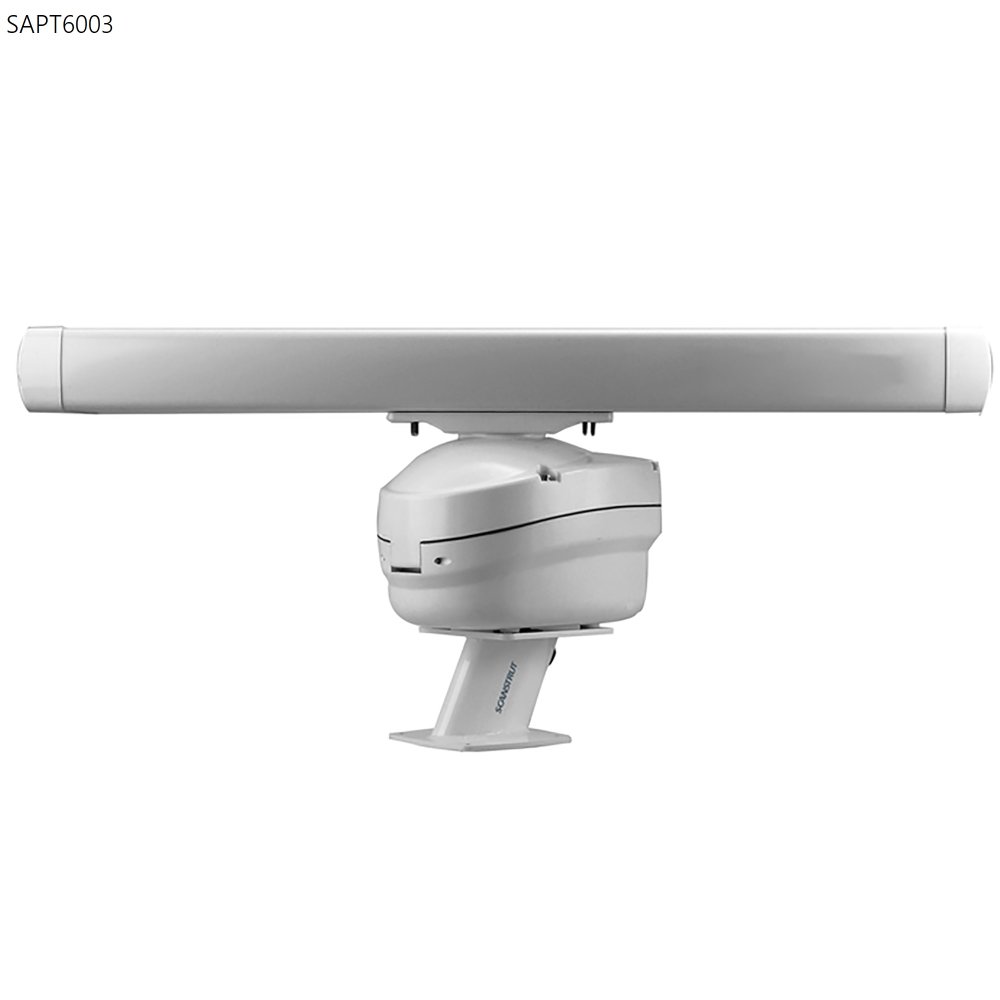

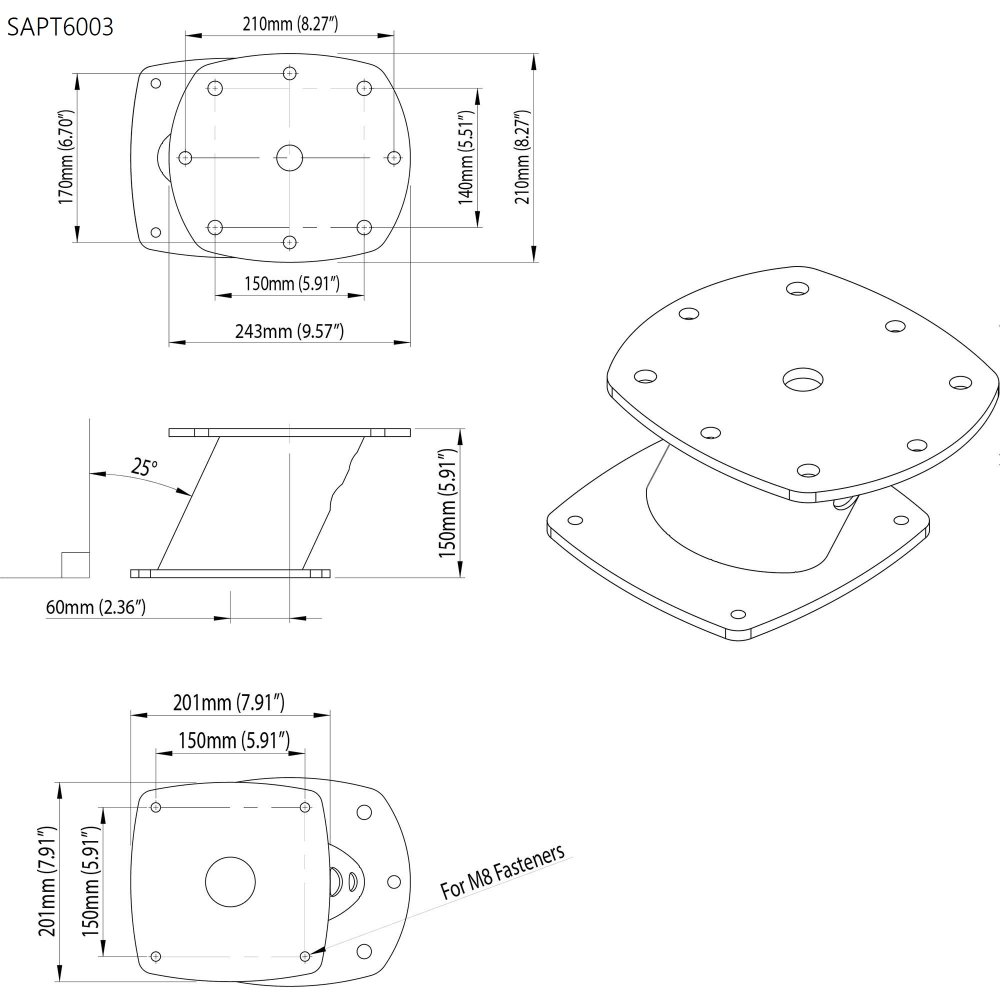

| SAPT6003 | Scanstrut Aluminium PowerTower® For Open Array – Raymarine (4 ’), Furuno (2 ’) & Navico Halo | Aluminium | White | Scanstrut |
