BEP
BEP-NC32YAM

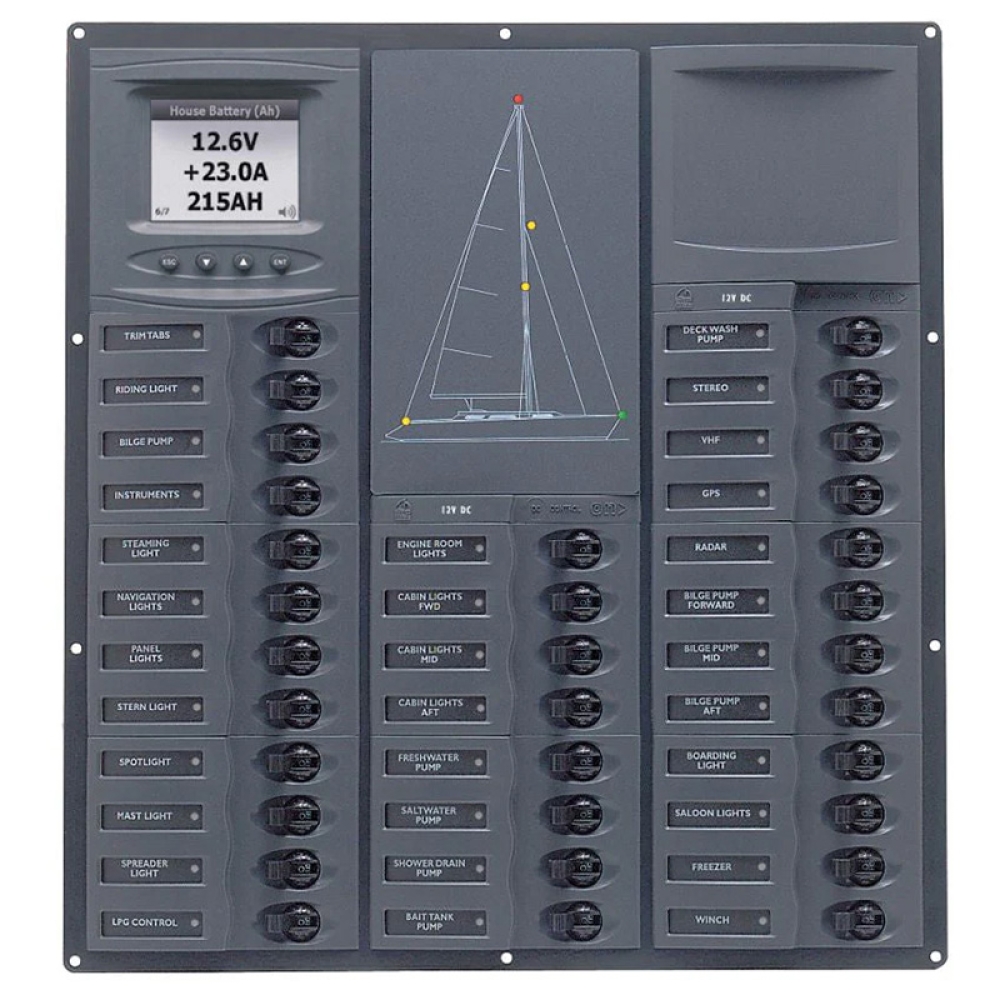

BEP Cruiser DC Branch Circuit Breaker Panel - 32 Circuits
Product Overview
BEP Marine uses the highest quality materials in its range of control panels, from the marine grade aluminium base plates to the Airpax magnetic hydraulic circuit breakers.
- 12 V / 24 V
- Mimic panel for quick reference of systems in operation
- Blank space for addition of extra meter
- Digital or analog readouts
- Depth for mounting 2.5" (64 mm) all panels
- Meter: Digital/Analogue Total Positions: 32 circuits
- Circuit Breakers (single pole): 7 x 5 A, 11 x 10 A, 11 x 15 A, 1 x 20 A, 1 x 25 A, 1 x 30 A
- Neg Bus: 24-Way
- Label Sheet: 1-4, 6
- This item may be subject to extended Leadtimes – please contact sales office for further details
Details
| Width | 351 mm |
|---|---|
| Height | 380 mm |
| Brand | BEP |
| Depth | 65 mm |
| Voltage | 12 / 24 V |
| Amps | 160 A |
