BEP
BEP-M56DCSM

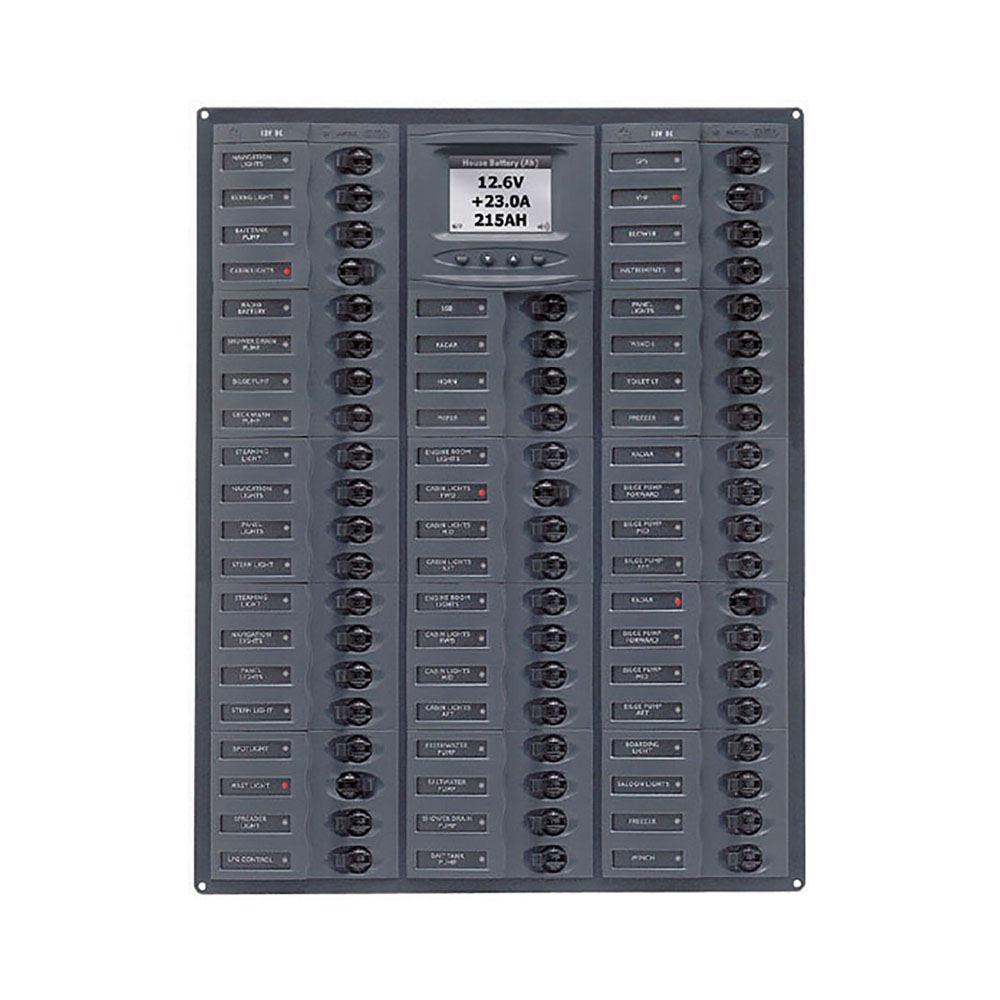

BEP Millennium DC Branch Circuit Breaker Panel - 56 Circuits
Product Overview
BEP Marine uses the highest quality materials in its range of control panels, from the marine grade aluminium base plates to the Airpax magnetic hydraulic circuit breakers.
- 12 V / 24 V
- Compact Sizing
- Battery monitoring using BEP multifunction meter (voltage on 3 battery banks, charge, discharge amps and amp-hours remaining on main battery bank)
- Depth for mounting 2.5" (64 mm) all panels
- Meter: Digital
- Total Positions: 56 circuits
- Neg Bus: 2 x 24-Way
- Circuit Breakers (single pole): 12 x 5 A, 18 x 10 A, 18 x 15 A, 4 x 20 A, 2 x 25 A, 2 x 30 A
- Label Sheet: 1-4, 6
- This item may be subject to extended Leadtimes – please contact sales office for further details
Details
| Width | 351 mm |
|---|---|
| Height | 455 mm |
| Brand | BEP |
| Depth | 65 mm |
| Voltage | 12 / 24 V |
| Amps | 160 A |
