BEP
ME001150

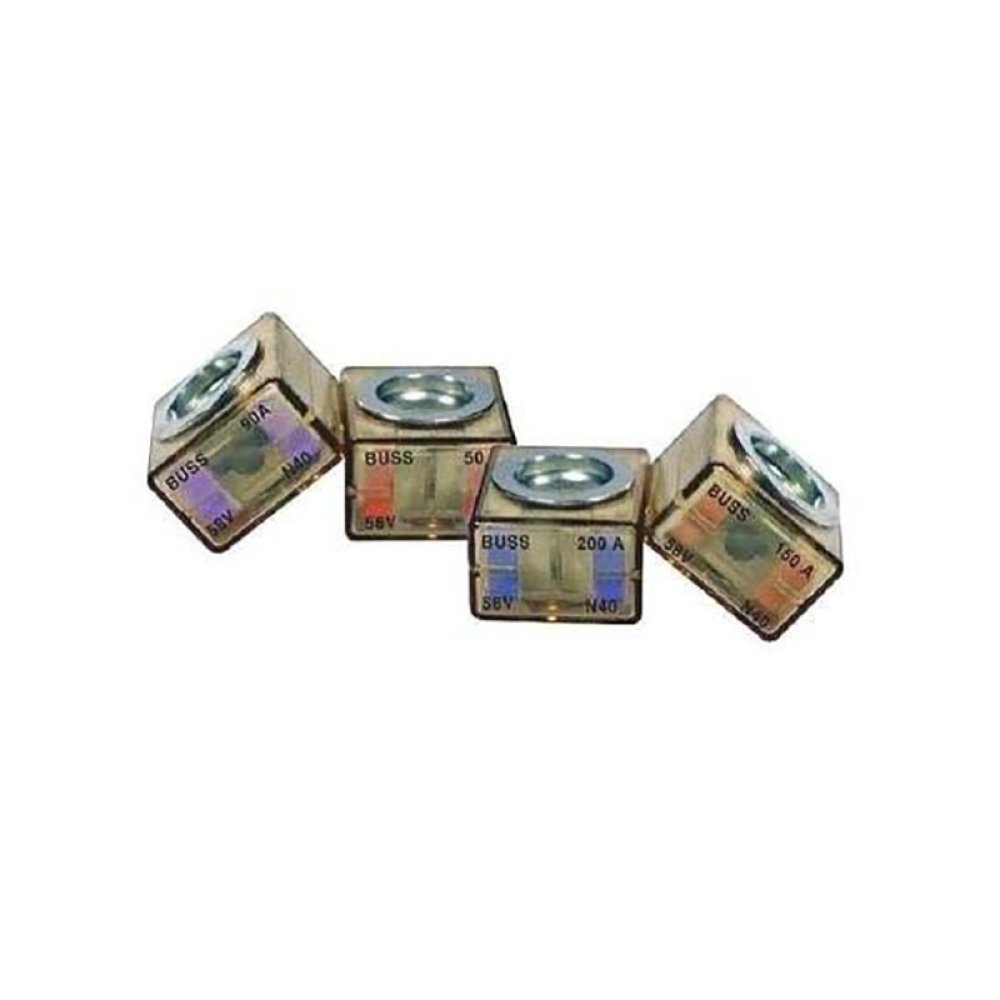

Marine Rated Battery Fuse
Product Overview
• Weatherproof IP66 design • Compact heavy-duty protection • Insulated cap to prevent short circuit • Ignition protected • Easy Installation • Suitable for high capacity battery banks
- Voltage Rating: 58 V DC Maximum
- Amperage Rating: 30 A - 300 A
- Ignition protected: Per SAEJ1117
- Interrupt rating: 10000A @ 14 V DC, 5000 A @ 32 V DC, 2000 A @ 58 V DC
- Torque rating: maximum 12Nm (106 in-lbs)
- Material: ceramic body, housing and cover: UL-rated 94V0
- Thermoplastic, ring terminals - Tin plated
- Compliances - ISO 8820-6
Details
| Brand | BEP |
|---|
| Product Code | Product Title | Brand |
|---|---|---|
| BEP-MRBF100A | BEP Marine Rated Battery Fuse - 100 A | BEP |
| BEP-MRBF125A | BEP Marine Rated Battery Fuse - 125 A | BEP |
| BEP-MRBF150A | BEP Marine Rated Battery Fuse - 150 A | BEP |
| BEP-MRBF200A | BEP Marine Rated Battery Fuse - 200 A | BEP |
| BEP-MRBF300A | BEP Marine Rated Battery Fuse - 300 A | BEP |
| BEP-MRBF50A | BEP Marine Rated Battery Fuse - 50 A | BEP |
| BEP-MRBF80A | BEP Marine Rated Battery Fuse - 80 A | BEP |
