Blue Gee
BG04009

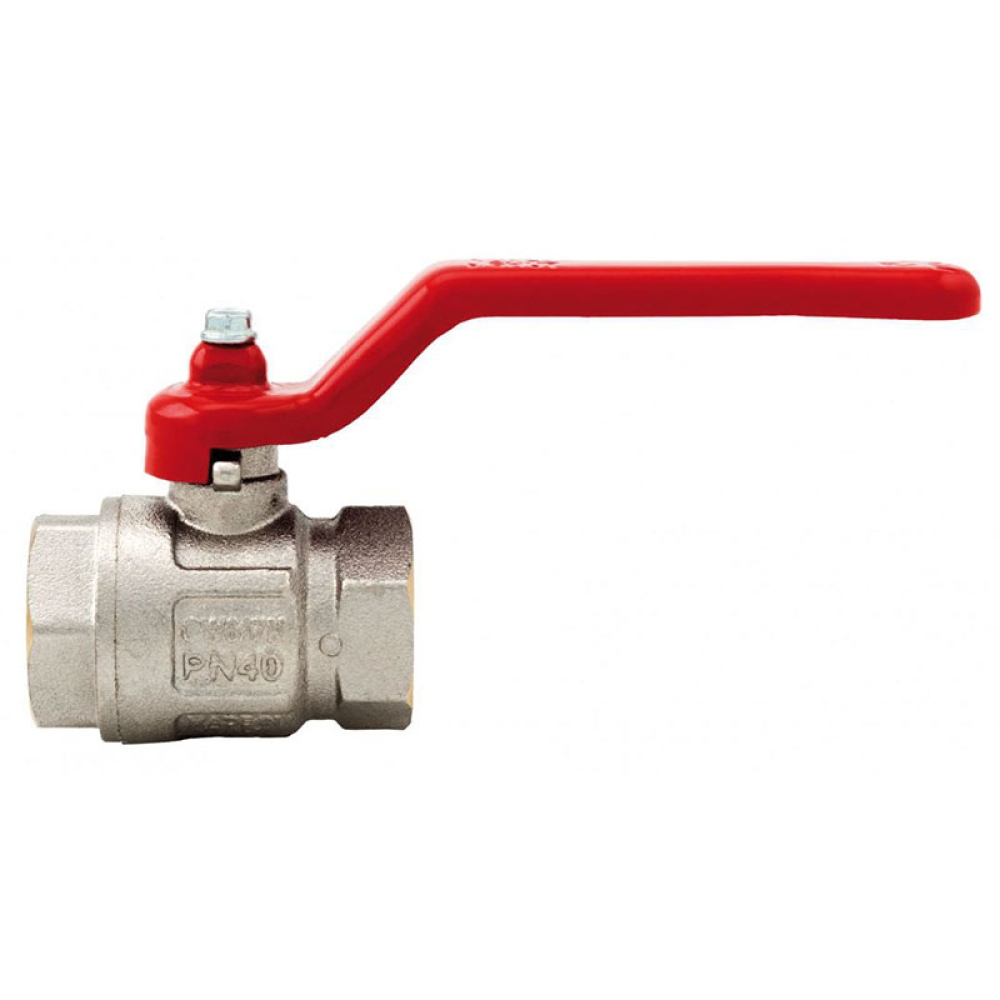

BlueGee Nickel Plated Brass Female/Female Lever Ball Valve 2 1/2 in
Product Overview
- Female/Female or male/female thread
- Lever handle in steel (aluminium in the sizes 2"1/2, 3" and 4") or T handle
- Body in nickel-plated brass
- Ball Chrome-plated brass CW617N
- Minimum and maximum working temperatures: -20°C, 150°C in absence of steam
- Threads: ISO 228 (equivalent to DIN EN ISO 228 and BS EN ISO 228)
- kg / cm² bar: 18
- lbs - psi: 261
Details
| Material | Nickel Plated Brass |
|---|---|
| Brand | Blue Gee |

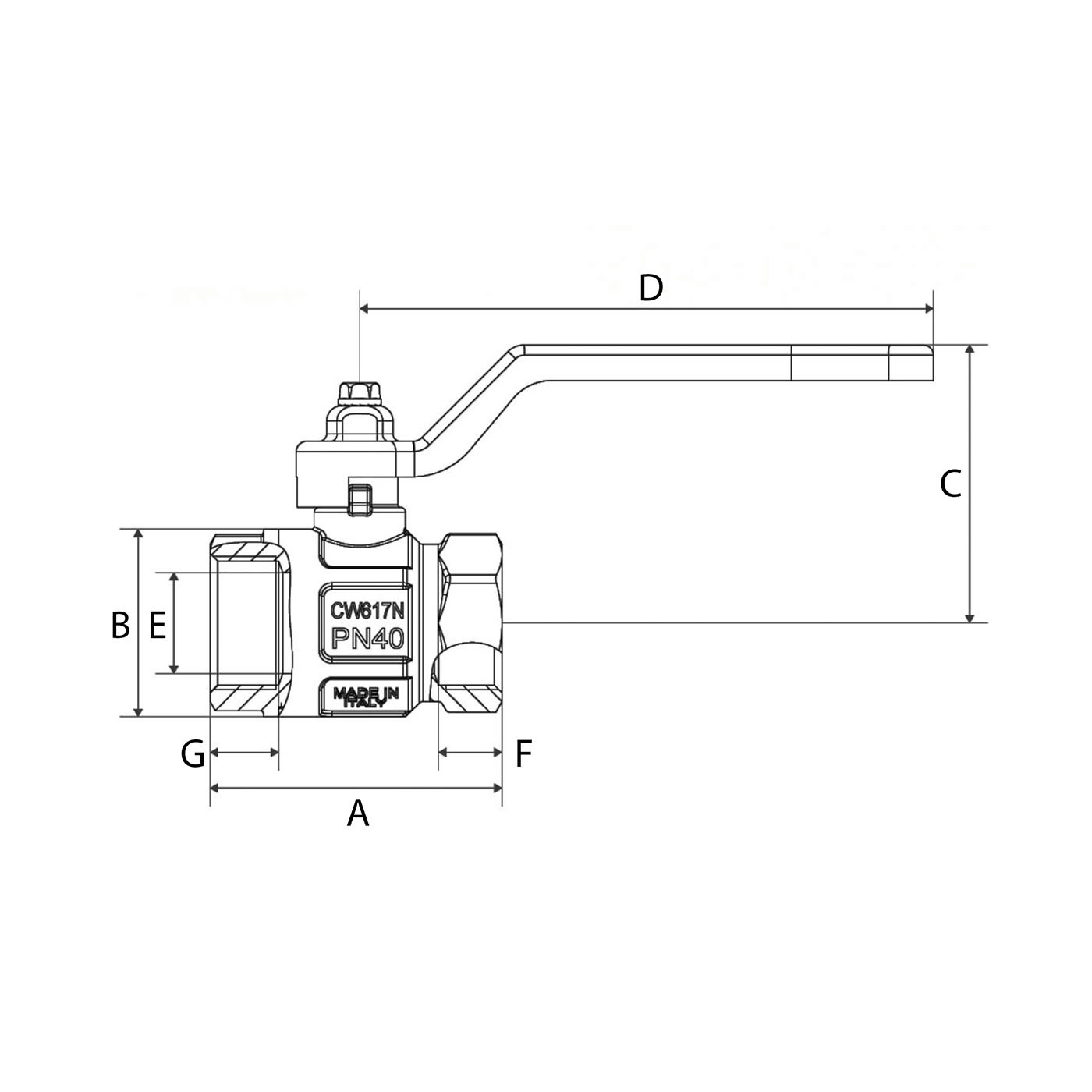

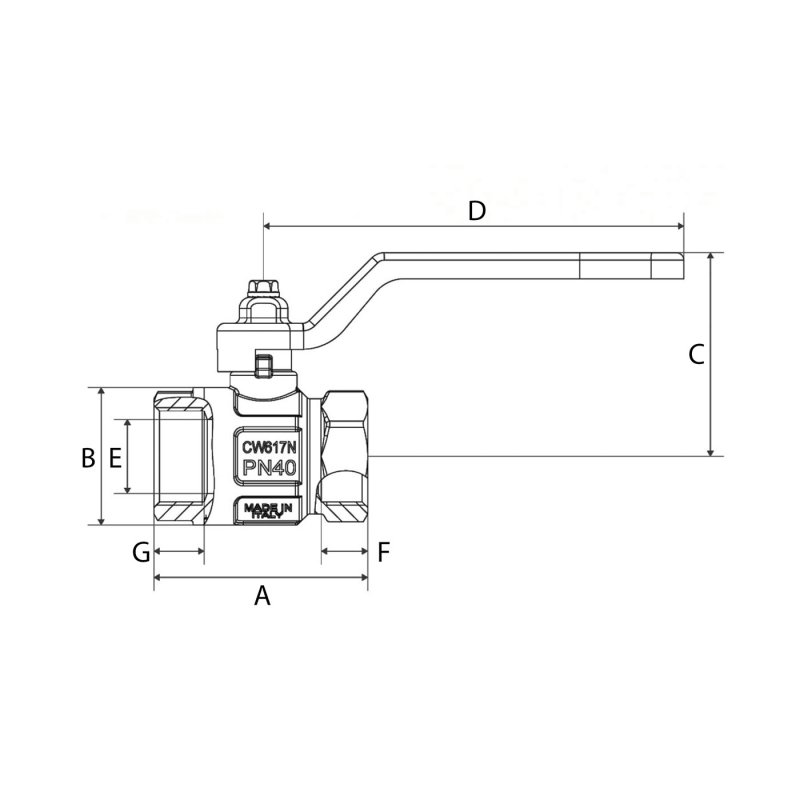

| A | 134.5 mm |
| B | 109 mm |
| C | 115 mm |
| D | 197 mm |
| E | 65 mm |
| F | 24 mm |
| G | 24 mm |
| Size | 2 1/2 in |
| DN | 65 mm |
| Barcode | 8023298007447 |
