Guidi
1533-100006

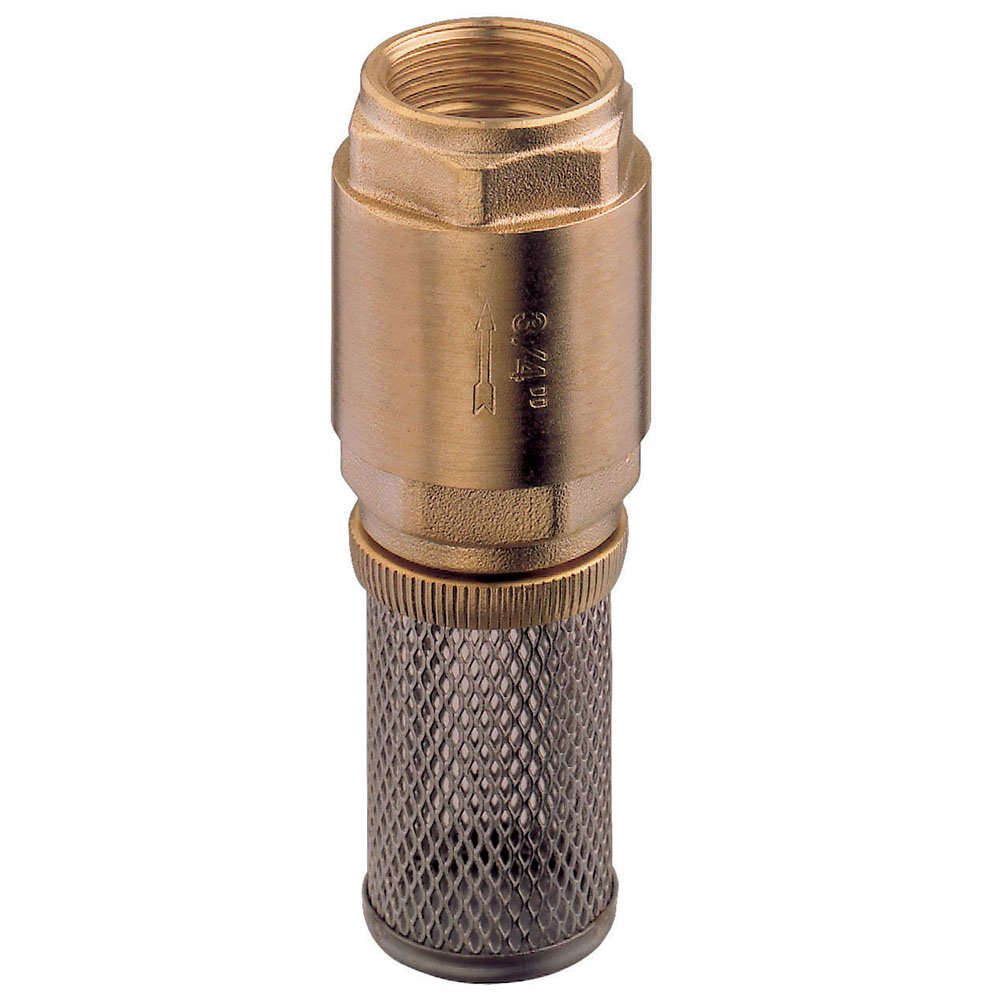

Guidi Brass Foot-Valve with Stainless steel Filter 1 in
Product Overview
Guidi foot-valve made from CW617N and CC753S brass with POM/NBR nitrile closing system and complete stainless steel filter. The check valve can only be installed vertically and is typically installed at a pump or at the bottom of a pipe or hose to ensure the pump stays primed. BSP parallel thread ISO 228.
- THREAD : G = ISO 228/1 (BS 2779) BSP
Details
| Weight2 | 285 g |
|---|---|
| Material | Brass |
| Qty Per Pack | 1 |
| Brand | Guidi |
| Packaging Type | LOOSE |

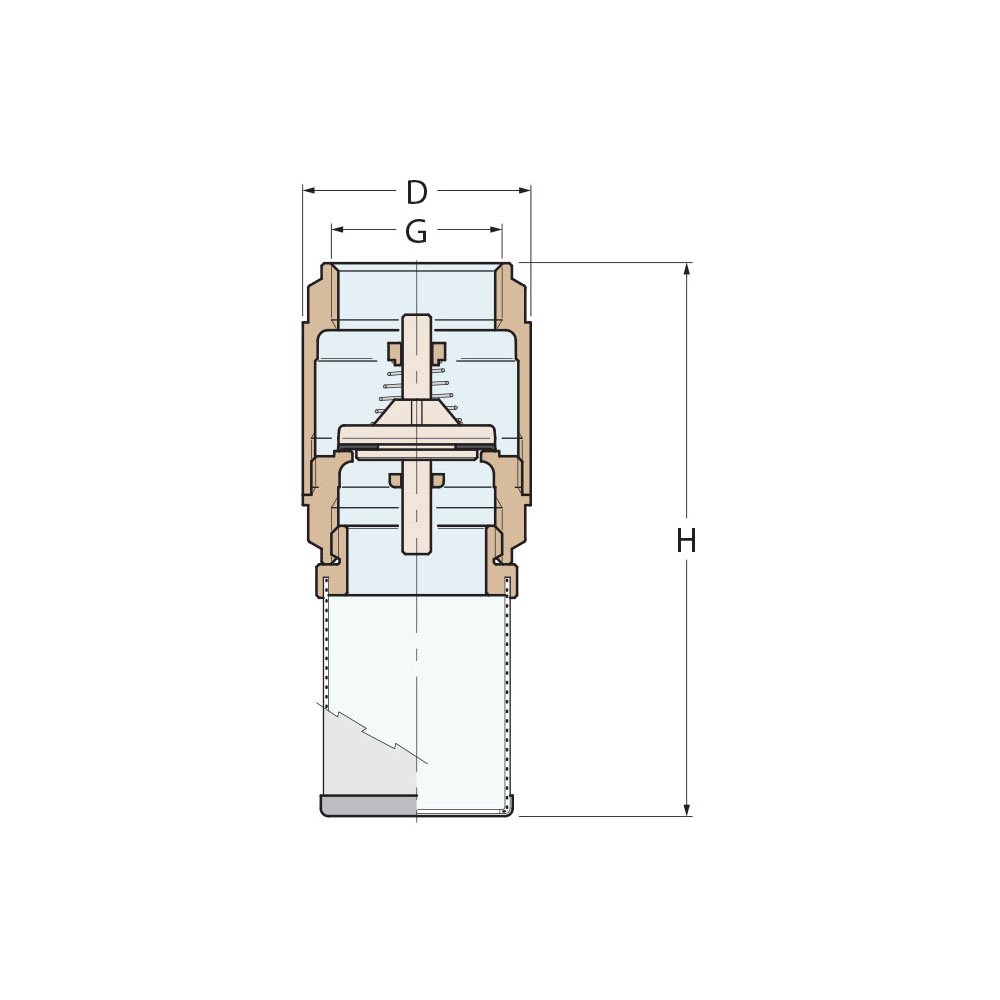

| D | 44 mm |
| H | 113 mm |
| G | 1 in |
| Range | Loose Packed |
| Size | 1" |
| PN | 16 |
| Barcode | 0001533100006 |
