Guidi
1900-120003
Guidi Nickel Plated Brass 3 Way Diverter Valve in T in Flow - F-F-F - 3/8 in
Product Overview

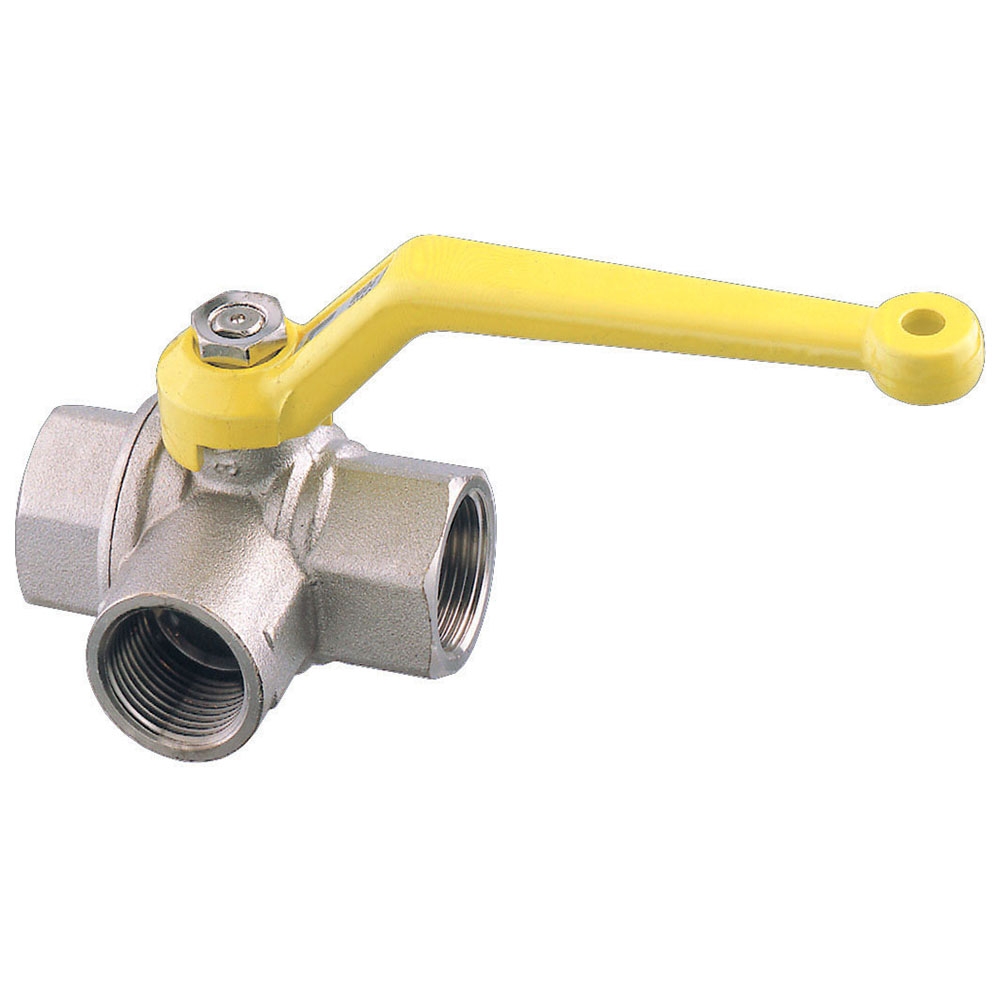

Guidi nickel plated brass 3-way diverter ball valve with female BSP parallel ISO 228 thread. Ideal if you are looking for a way to divert and control flow without the need for a Tee and multiple valves. Allows you to direct flow in one direction at a time. From one inlet you can direct flow into two different outlets or from the opposite flow direction, for one outlet the user can choose from either of two inlets.
- THREAD : G = EN 10226/1 (BS 21) BSPT Compliant with UNI EN ISO 9093-1
Details
| Weight2 | 185 g |
|---|---|
| Material | Nickel Plated Brass |
| Qty Per Pack | 1 |
| Brand | Guidi |
| Packaging Type | LOOSE |

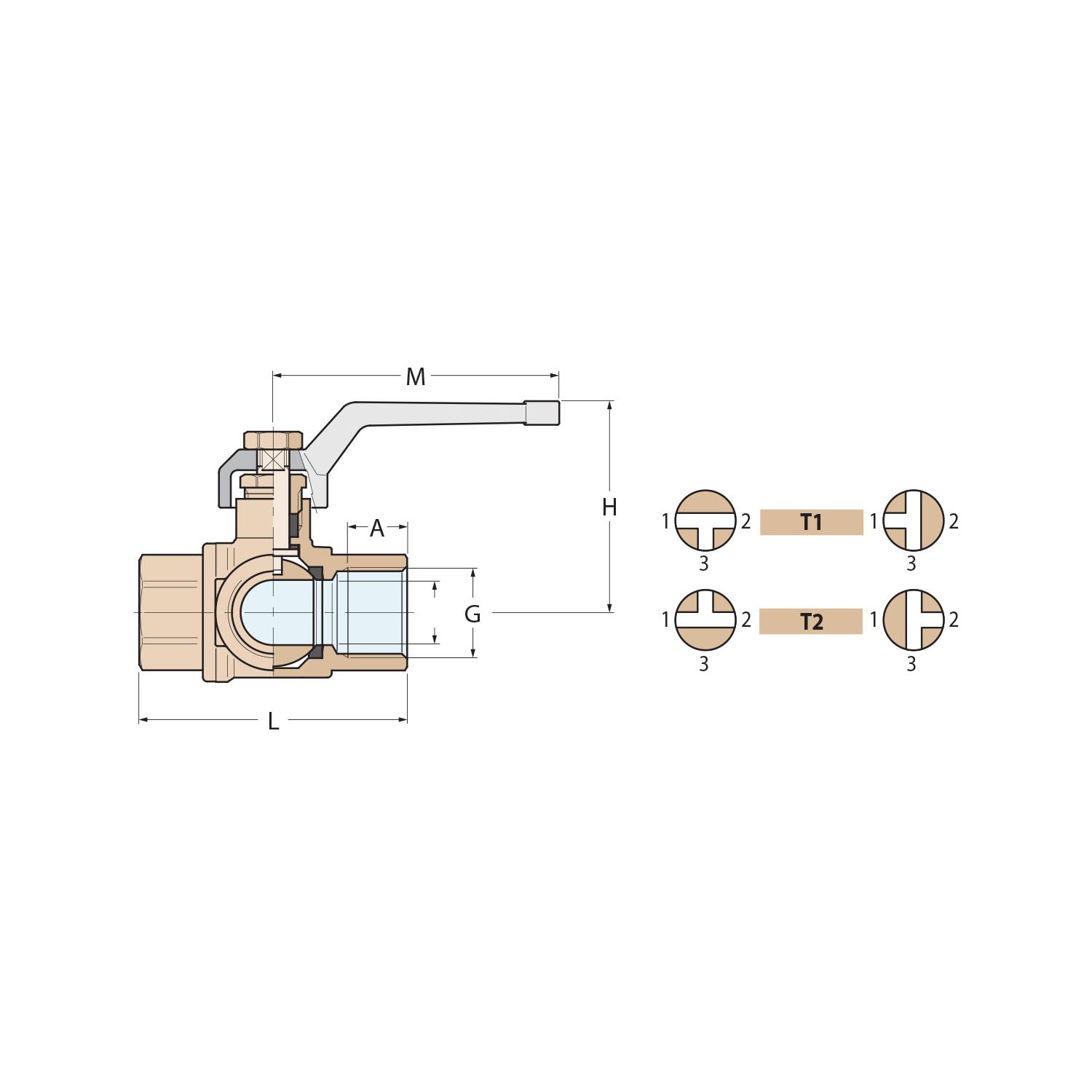

| A | 11.4 mm |
| F | 10 mm |
| H | 48 mm |
| L | 52 mm |
| G | 3/8 in |
| M | 110 mm |
| Range | Loose Packed |
| Size | 3/8" |
| PN | 16 |
| Barcode | 0001900120003 |
