Guidi
1171L-130167
Guidi Chrome-Plated Brass Deck Fillers in FUEL FILL in 1 in 1/2
Product Overview

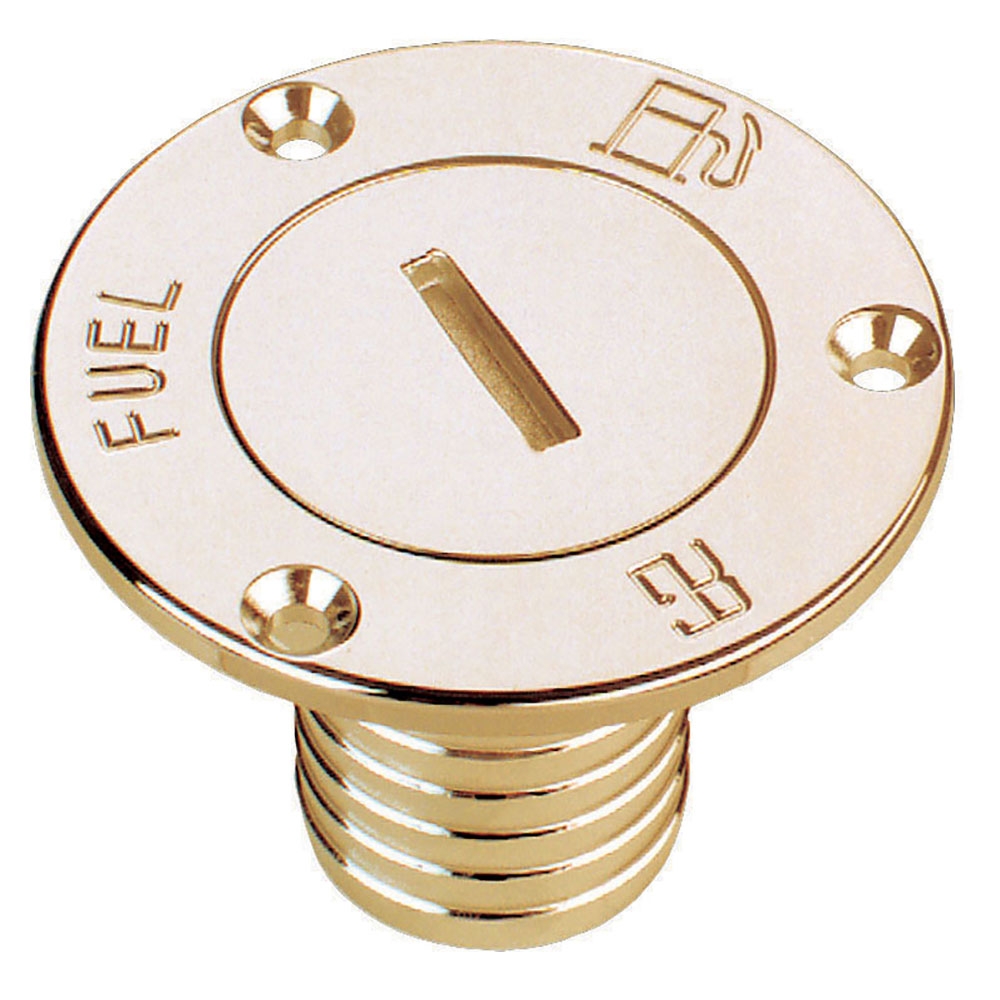

Guidi deck filler with barbed hose connector. High quality solid brass fitting, machined and polished finish. Complete with slot for opening, stamped identification. 1 1/2" BSP thread and O ring. Three countersunk holes for fixing.
- THREAD : G = ISO 228/1 (BS2779) BSP
Details
| Weight2 | 430 g |
|---|---|
| Material | Chrome Plated Brass |
| Qty Per Pack | 1 |
| Brand | Guidi |
| Packaging Type | LOOSE |

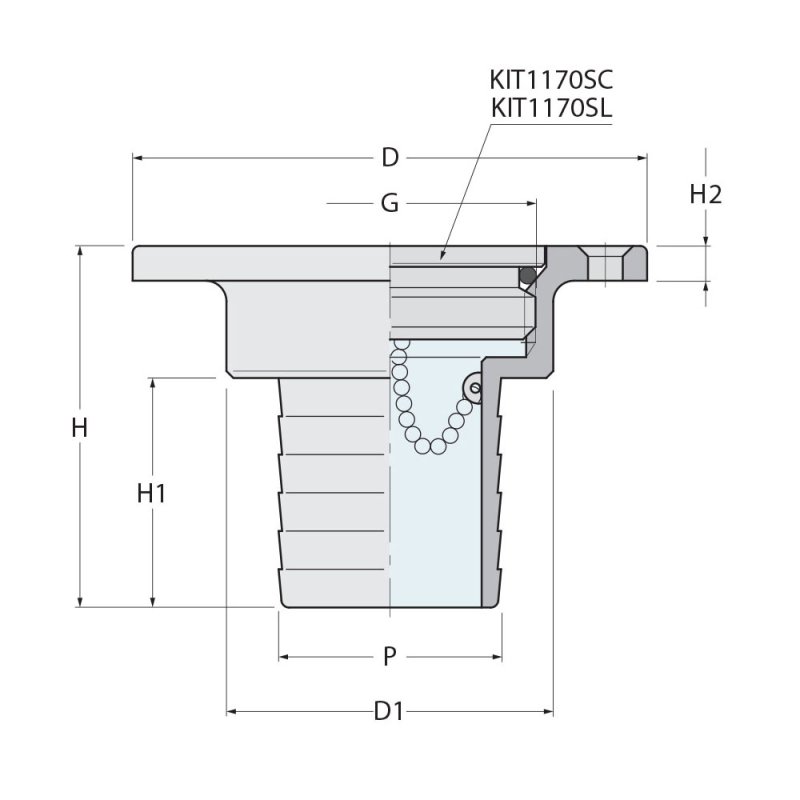

| D | 83 mm |
| D1 | 54 mm |
| H | 65 mm |
| G | 1 in 1/2 |
| H1 | 45 mm |
| H2 | 5 mm |
| P | 38 mm |
| Range | Loose Packed |
| Size | 1-1/2" |
| Barcode | 001171L130167 |
