Guidi
1551-120005

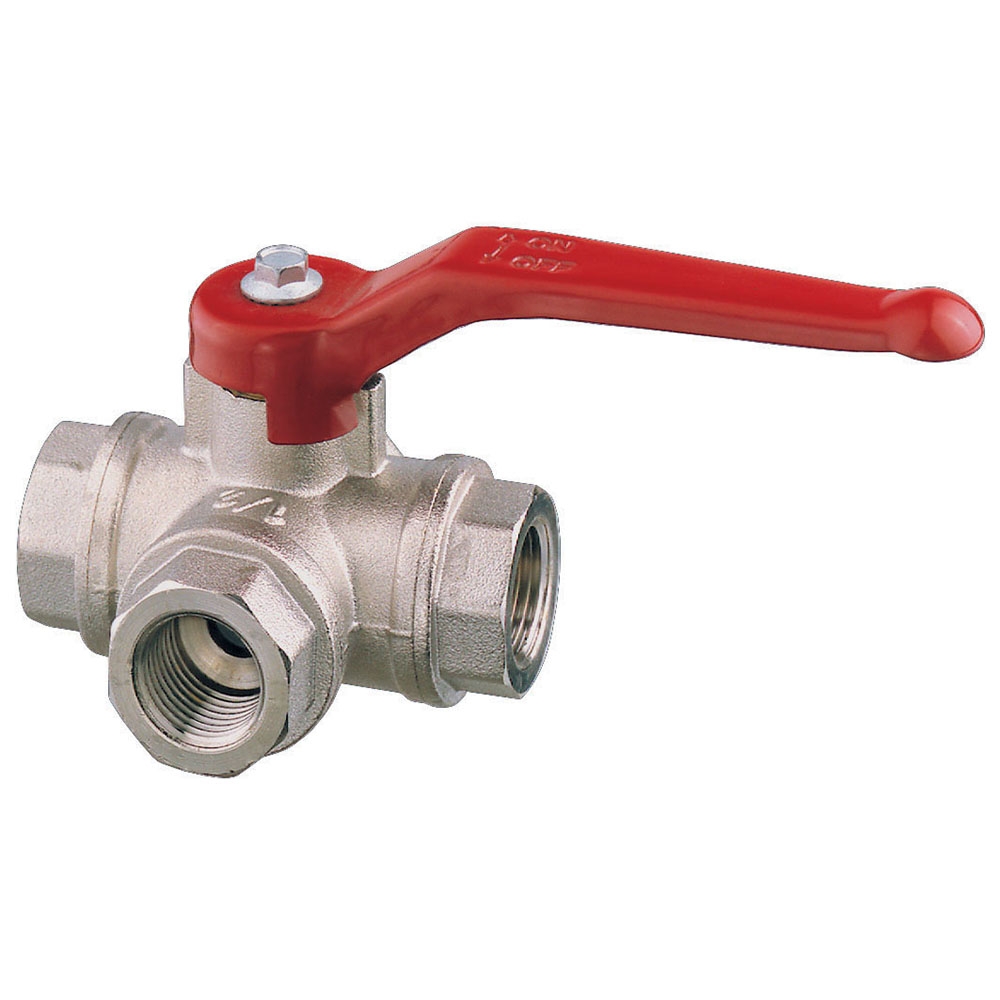

Guidi Nickel Plated Brass 3 Way in T in Ball Valve F-F-F - PN32 - 3/4 in
Product Overview
Guidi nickel plated brass 3-way ball valve with female BSP parallel ISO 228 thread. T port valves are ideal for a way to divert and control flow without the need for a Tee and multiple valves. Great for mixing since you can merge two inlets into a single outlet. (Also called Mixing Ball Valves) The opposite flow direction is also possible which allows a single source to divert flow in two directions simultaneously . Can also be use to flow between just two ports, either to the left, to the right or straight through.
- THREAD : G = ISO 228/1 (BS 2779) BSP
Details
| Weight2 | 860 g |
|---|---|
| Material | Nickel Plated Brass |
| Qty Per Pack | 1 |
| Brand | Guidi |
| Packaging Type | LOOSE |

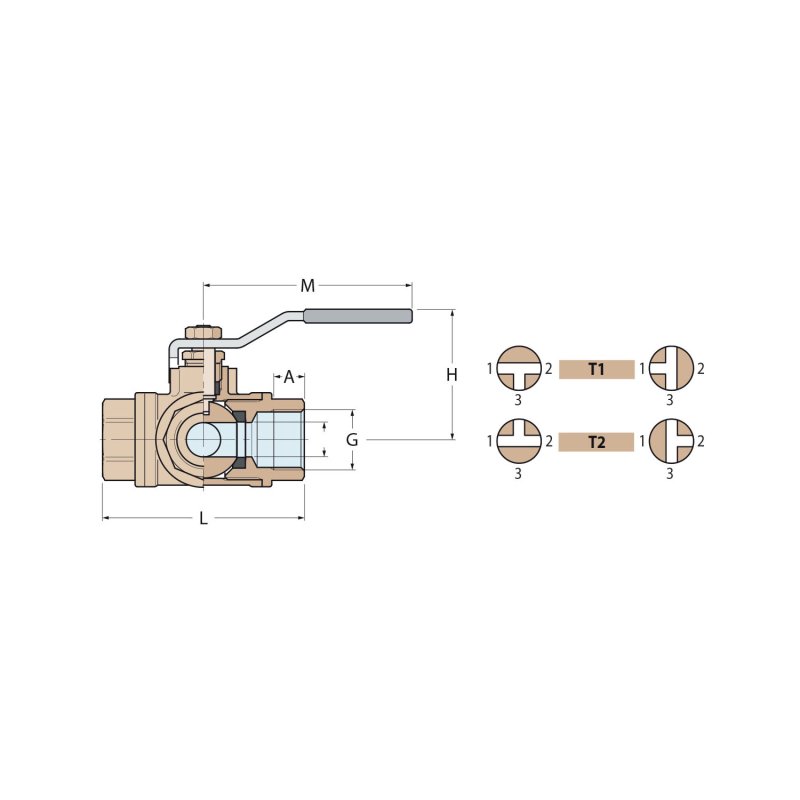

| A | 16 mm |
| F | 15 mm |
| H | 66 mm |
| L | 90 mm |
| G | 3/4 in |
| M | 125 mm |
| Range | Loose Packed |
| Size | 3/4" |
| PN | 32 |
| Barcode | 0001551120005 |
