Guidi
1112B-200005

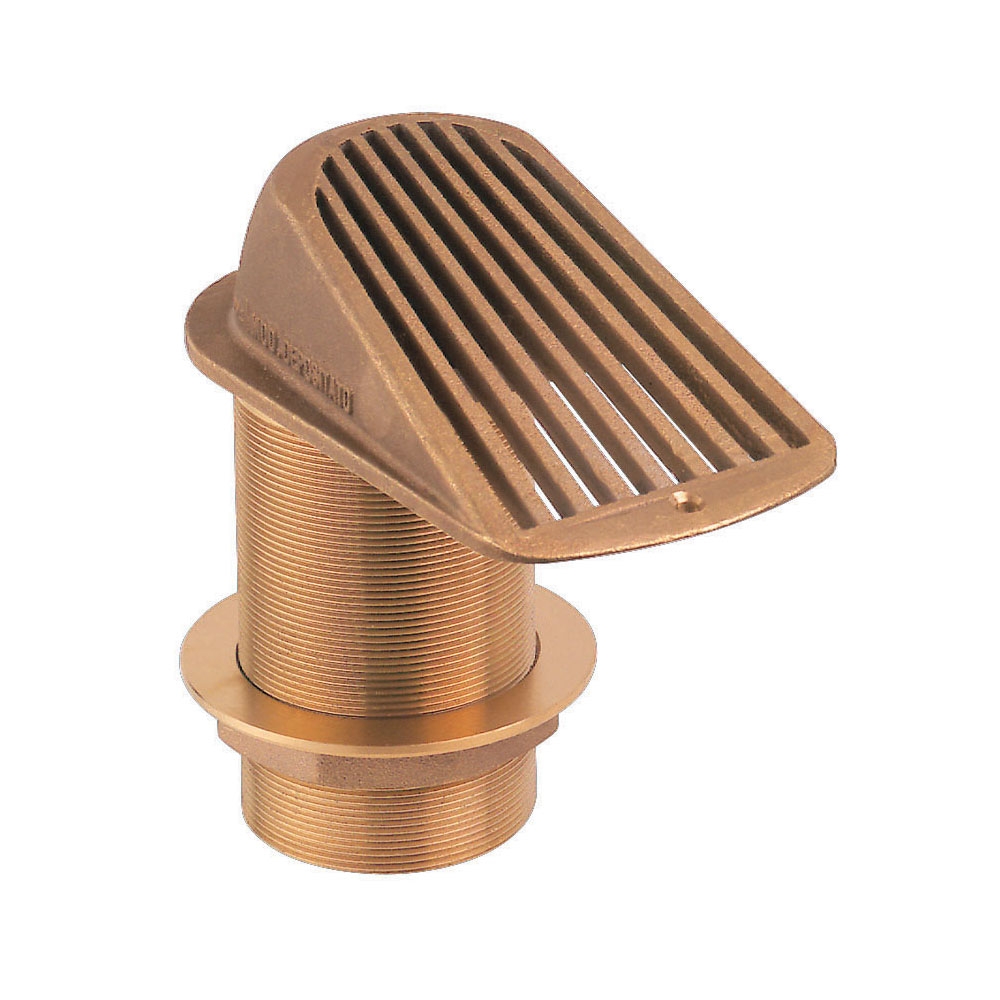

Guidi Bronze Grated Water Intake in 2000 in Series 3/4 in
Product Overview
Premium quality Guidi water intake made from UNI 7013/8 . Engineered for maximum water flow and reduced cavitation with a sleek design. Guidi bronze contains less than 6% zinc and therefore is the most suitable alloy for below waterline and thru-hull use and unlike DZR brass is resistant to galvanic corrosion even without bonding.
- Thread : G = ISO 228/1 (BS 2779) BSP
- All thru-hull fittings should be electrically bonded to help prevent galvanic corrosion. See 1145 series for bonding washers & terminals
Details
| Weight2 | 360 g |
|---|---|
| Material | Bronze |
| Qty Per Pack | 1 |
| Brand | Guidi |
| Packaging Type | LOOSE |

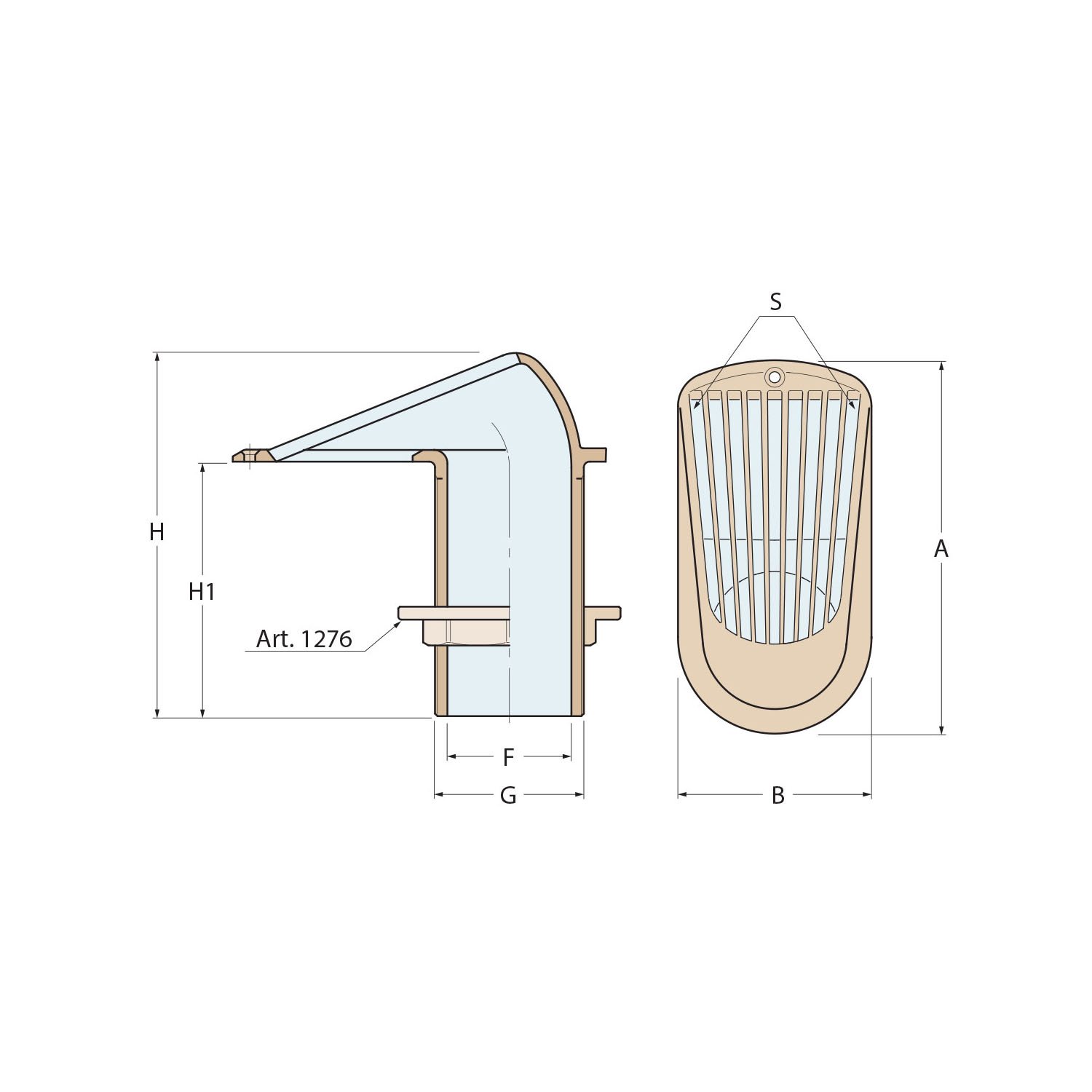

| A | 81 mm |
| B | 40 mm |
| F | 15 mm |
| H | 103 mm |
| S | 7 cm² |
| G | 3/4 in |
| H1 | 80 mm |
| Range | Loose Packed |
| Size | 3/4" |
| Barcode | 001112B200005 |
