Rocna
ME000165

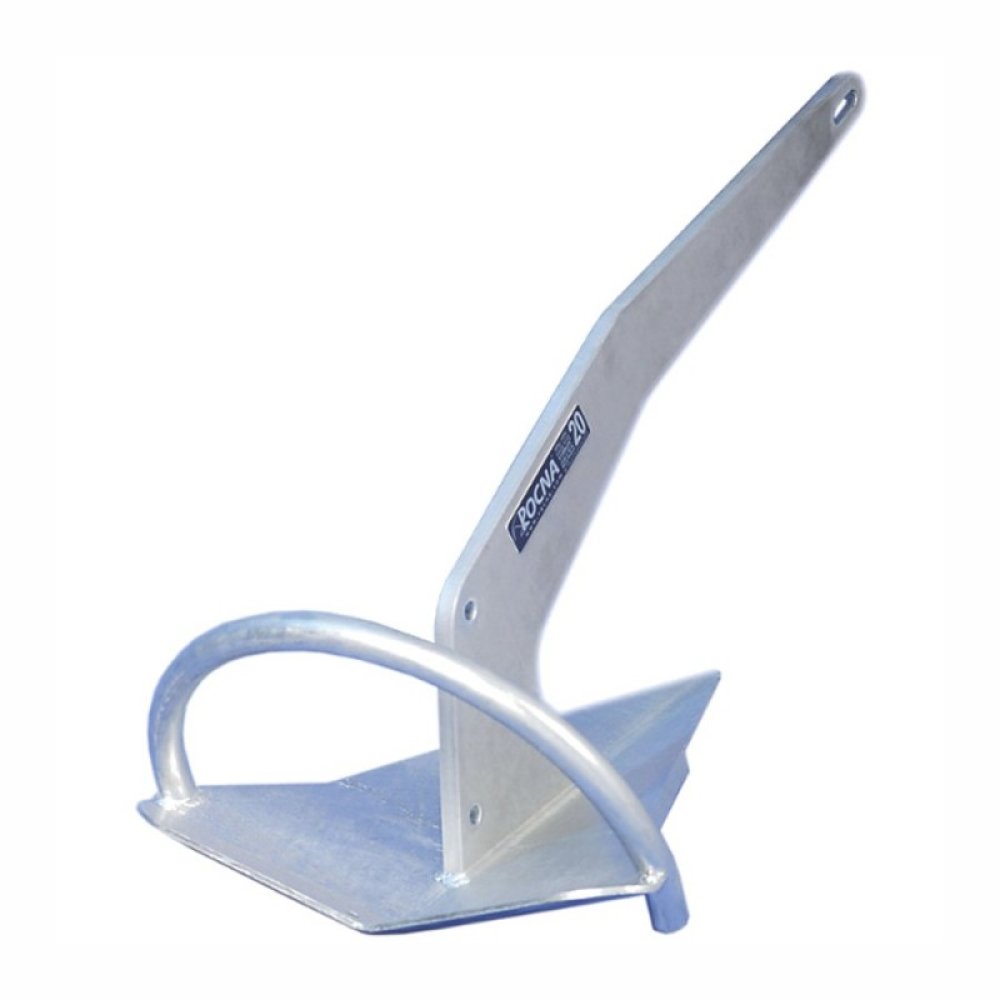

Rocna Galvanised Anchor
Product Overview
The Rocna Anchor is a true multi-purpose anchor that sets and holds in most seabeds, from soft mud to hard sand, clay, grass, and kelp. Precision setting: The roll bar (A) ensures that the anchor always arrives at the ideal angle for penetration, and the setting skids (B) guide the fluke tip (C), which acts as a sharp chisel cutting into the seabed. With a third of the anchor's weight on its fluke tip, an instant, reliable set is ensured with every use. Rock solid holding power: of all anchor types, a concave fluke (D) gives the greatest resistance, and through clever design, Rocna provides the largest fluke area possible. In very soft seabeds, this provides the holding power to secure your boat. On hard or weedy sea floors, Rocna's chisel tip (C) ensures that it cuts through and bites deep.
Details
| Material | Galvanised Steel |
|---|---|
| Brand | Rocna |

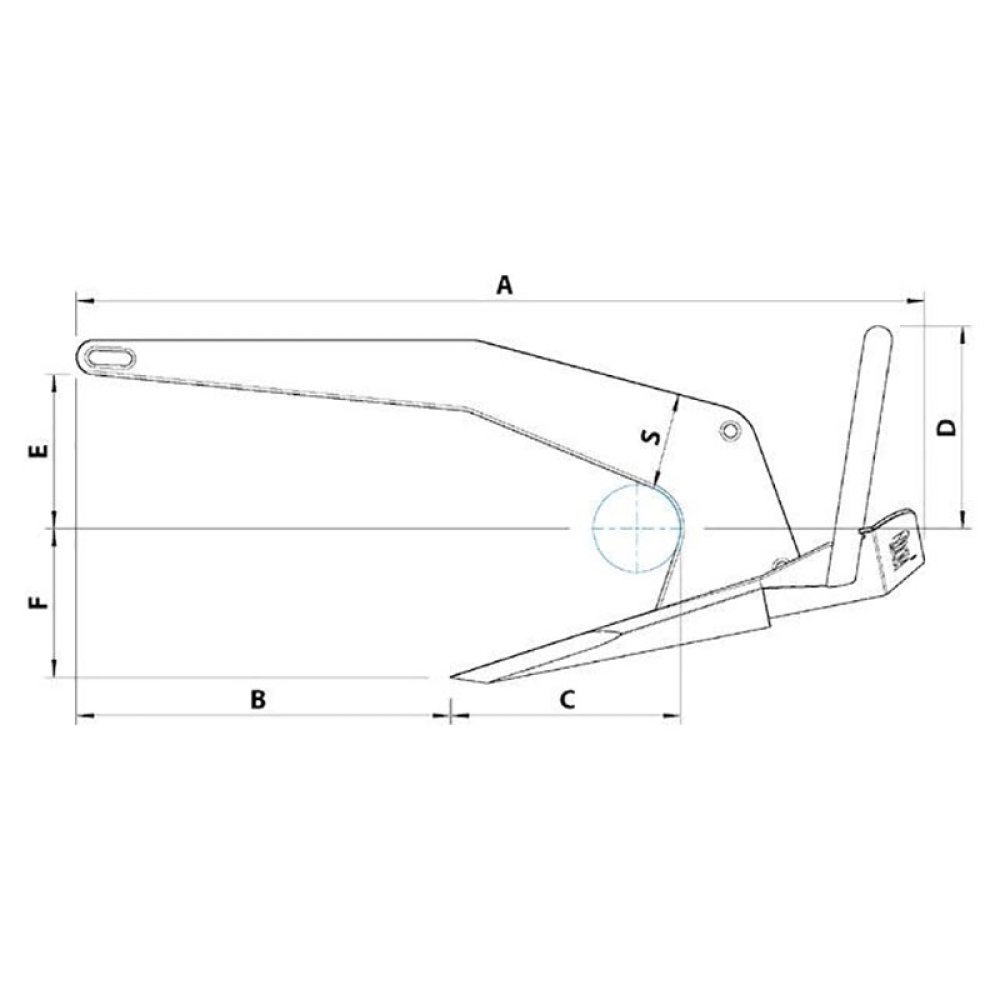

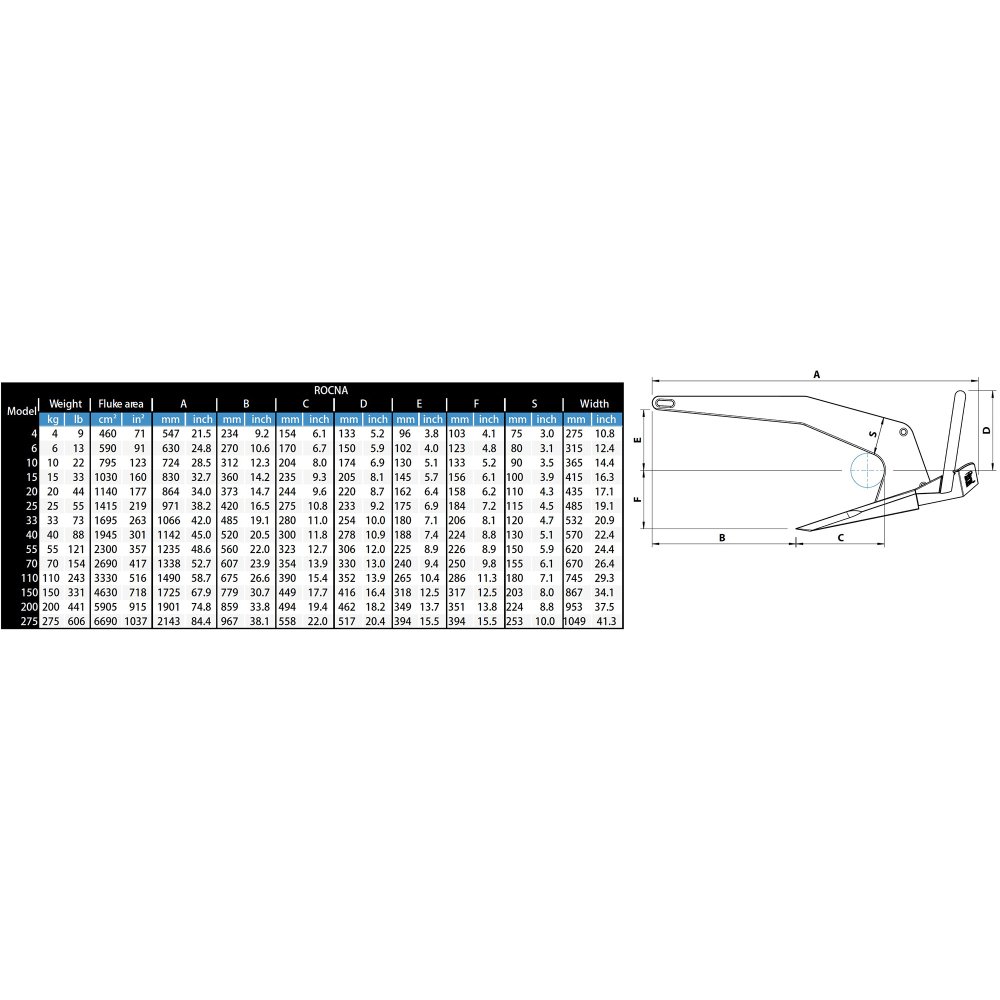

| Product Code | Product Title | Material | Qty Per Pack | A | B | C | D | E | F | S | Width | Weight2 | Brand | Fluke Area |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 77.106.030 | Rocna Galvanised Anchor 4 kg | Galvanised Steel | 1 | 547 mm | 234 mm | 154 mm | 133 mm | 96 mm | 103 mm | 75 mm | 275 mm | 4 kg | Rocna | 460 cm² |
| 77.106.031 | Rocna Galvanised Fisherman Anchor 4 kg | Rocna | ||||||||||||
| 77.106.032 | Rocna Galvanised Anchor 6 kg | Galvanised Steel | 1 | 630 mm | 270 mm | 170 mm | 150 mm | 102 mm | 123 mm | 80 mm | 315 mm | 6 kg | Rocna | 590 cm² |
| 77.106.034 | Rocna Galvanised Anchor 10 kg | Galvanised Steel | 1 | 724 mm | 312 mm | 204 mm | 174 mm | 130 mm | 133 mm | 90 mm | 365 mm | 10 kg | Rocna | 795 cm² |
| 77.106.035 | Rocna Anchor Galvanized 15Kg | Galvanised Steel | 1 | 830 mm | 360 mm | 235 mm | 205 mm | 145 mm | 156 mm | 100 mm | 415 mm | 15 kg | Rocna | 1030 cm² |
| 77.106.036 | Rocna Anchor Galvanized 20Kg | Galvanised Steel | 1 | 864 mm | 373 mm | 244 mm | 220 mm | 162 mm | 152 mm | 110 mm | 435 mm | 20 kg | Rocna | 1140 cm² |
| 77.106.037 | Rocna Anchor Galvanized 25Kg | Galvanised Steel | 1 | 971 mm | 420 mm | 275 mm | 233 mm | 175 mm | 184 mm | 115 mm | 485 mm | 25 kg | Rocna | 1415 cm² |
| 77.106.038 | Rocna Galvanised Anchor 33 kg | Galvanised Steel | 1 | 1066 mm | 485 mm | 280 mm | 254 mm | 180 mm | 206 mm | 120 mm | 532 mm | 33 kg | Rocna | 1695 cm² |
| 77.106.039 | Rocna Galvanised Anchor 40 kg | Galvanised Steel | 1 | 1142 mm | 520 mm | 300 mm | 278 mm | 188 mm | 224 mm | 130 mm | 570 mm | 40 kg | Rocna | 1945 cm² |
| 77.106.040 | Rocna Galvanised Anchor 55 kg | Galvanised Steel | 1 | 1235 mm | 560 mm | 323 mm | 306 mm | 225 mm | 226 mm | 150 mm | 620 mm | 55 kg | Rocna | 2300 cm² |
| 77.106.041 | Rocna Galvanised Anchor 70 kg | Galvanised Steel | 1 | 1338 mm | 607 mm | 354 mm | 330 mm | 240 mm | 250 mm | 155 mm | 670 mm | 70 kg | Rocna | 2690 cm² |
| 77.106.042 | Rocna Galvanised Anchor 110 kg | Galvanised Steel | 1 | 1490 mm | 675 mm | 390 mm | 352 mm | 265 mm | 286 mm | 180 mm | 745 mm | 110 kg | Rocna | 3330 cm² |
| 77.106.043 | Rocna Galvanised Anchor 150 kg | Galvanised Steel | 1 | 1725 mm | 779 mm | 449 mm | 416 mm | 318 mm | 317 mm | 203 mm | 867 mm | 150 kg | Rocna | 4630 cm² |
| 77.106.044 | Rocna Galvanised Anchor 200 kg | Galvanised Steel | 1 | 1901 mm | 859 mm | 494 mm | 462 mm | 349 mm | 351 mm | 224 mm | 953 mm | 200 kg | Rocna | 5905 cm² |
| 77.106.045 | Rocna Galvanised Anchor 275 kg | Galvanised Steel | 1 | 2143 mm | 967 mm | 558 mm | 518 mm | 394 mm | 394 mm | 253 mm | 1049 mm | 275 kg | Rocna | 6690 cm² |
