Seaflo
DP103005542

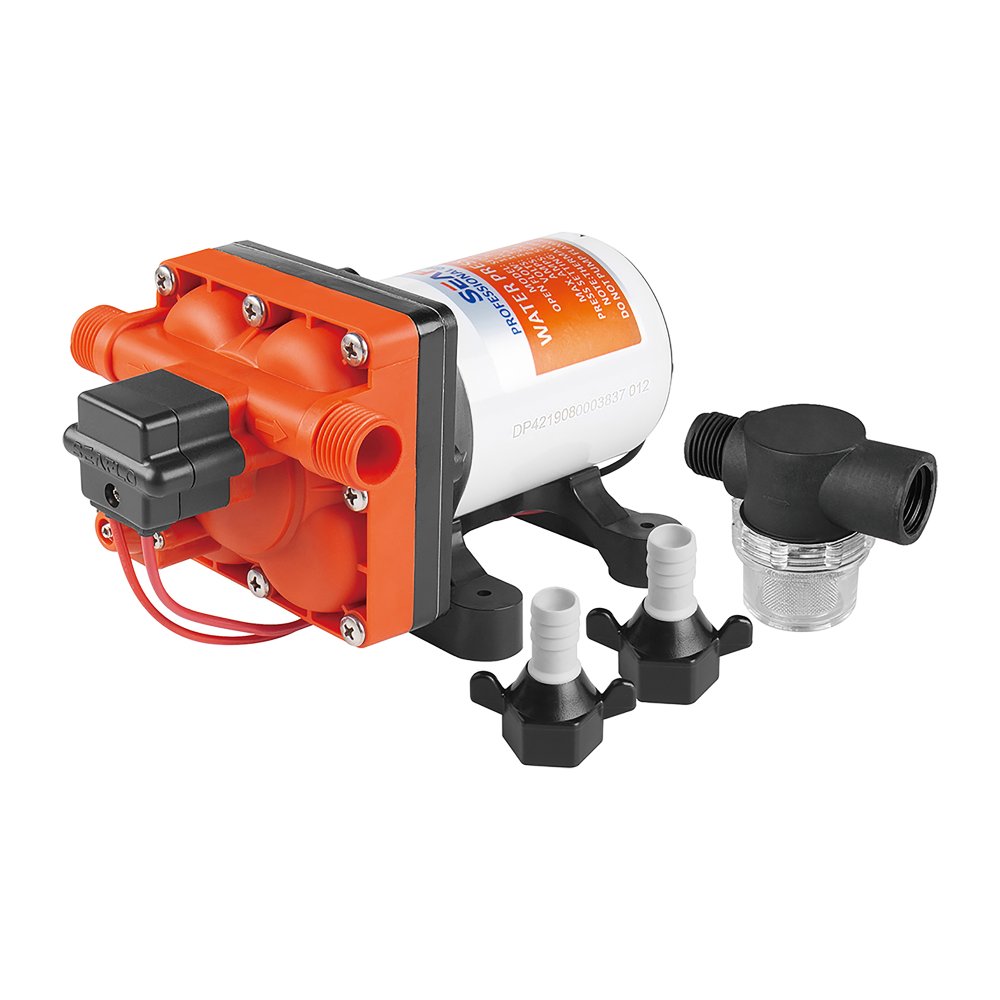

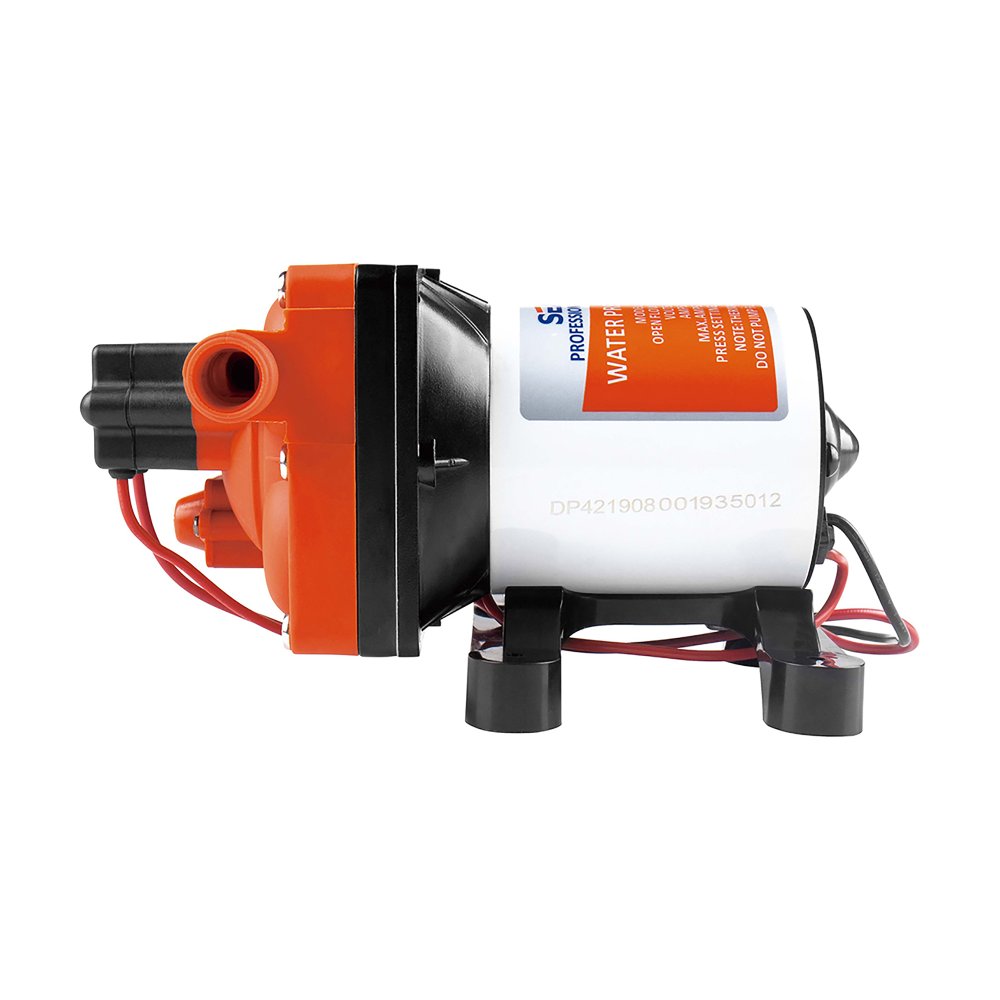

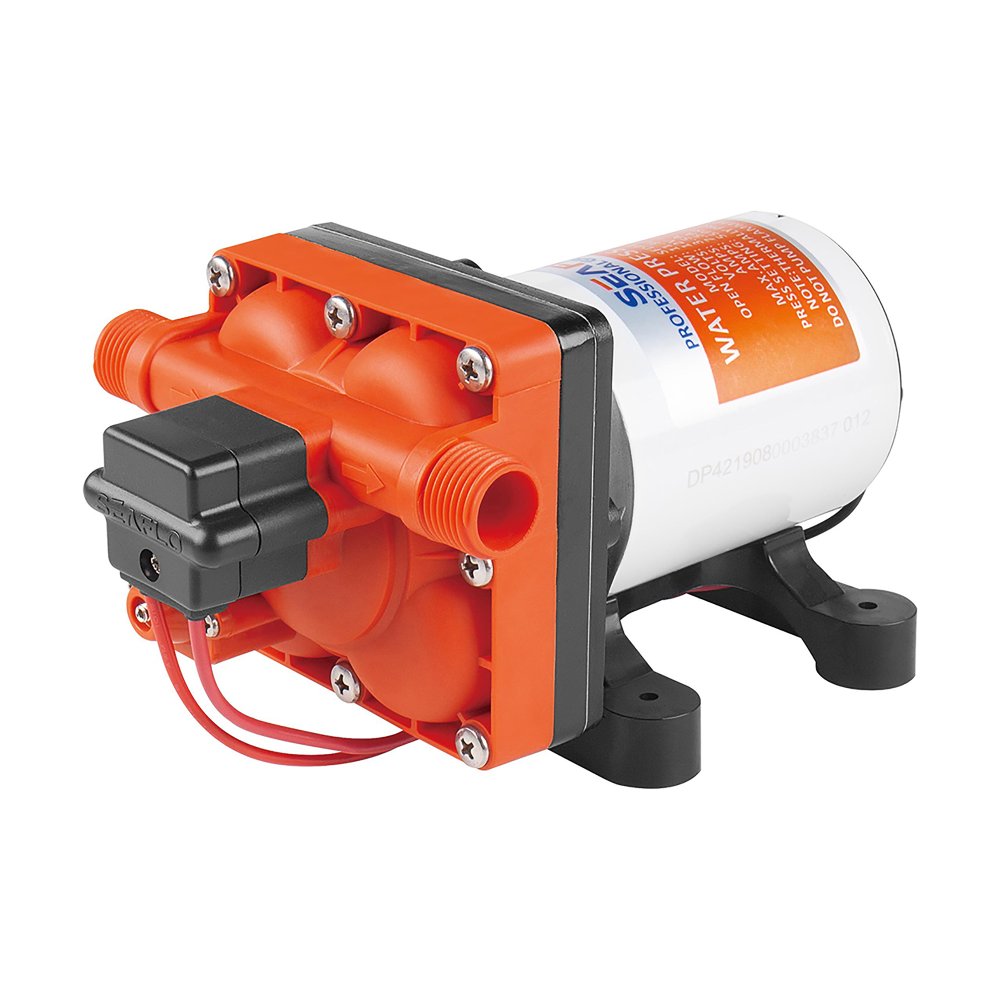

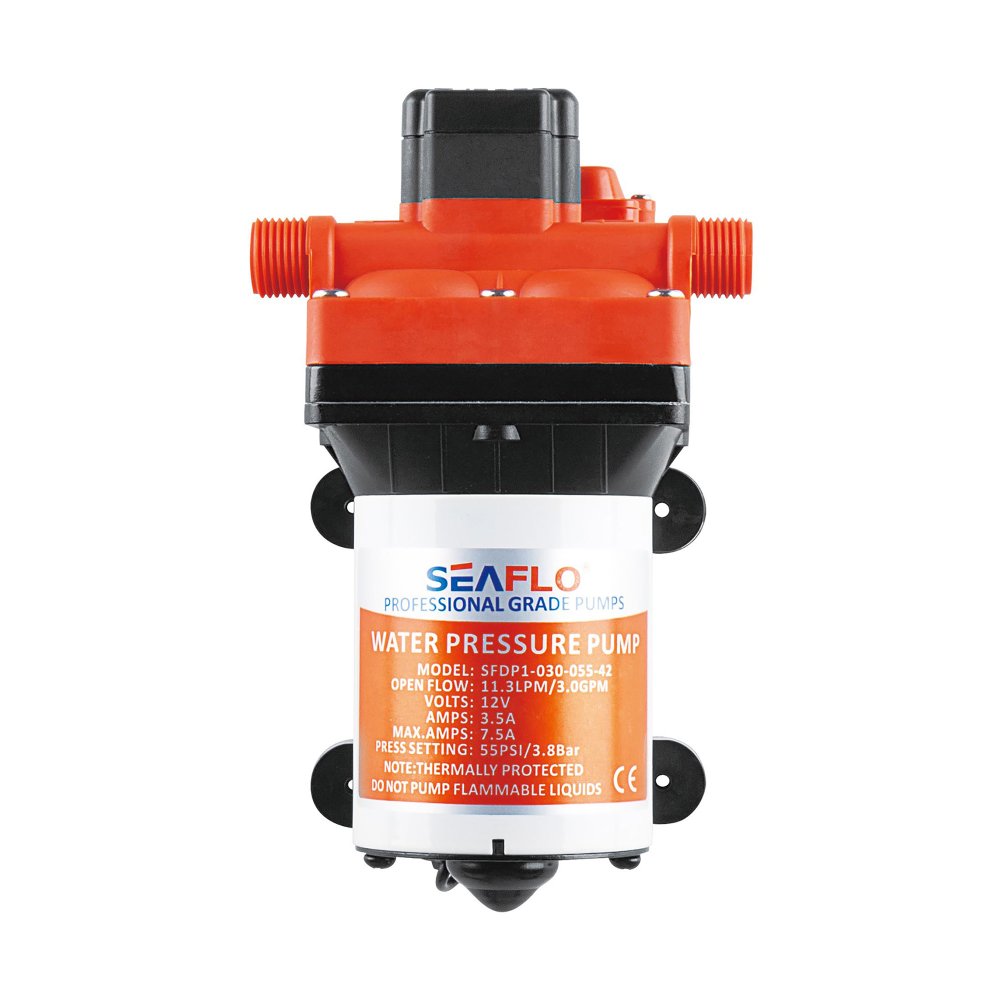

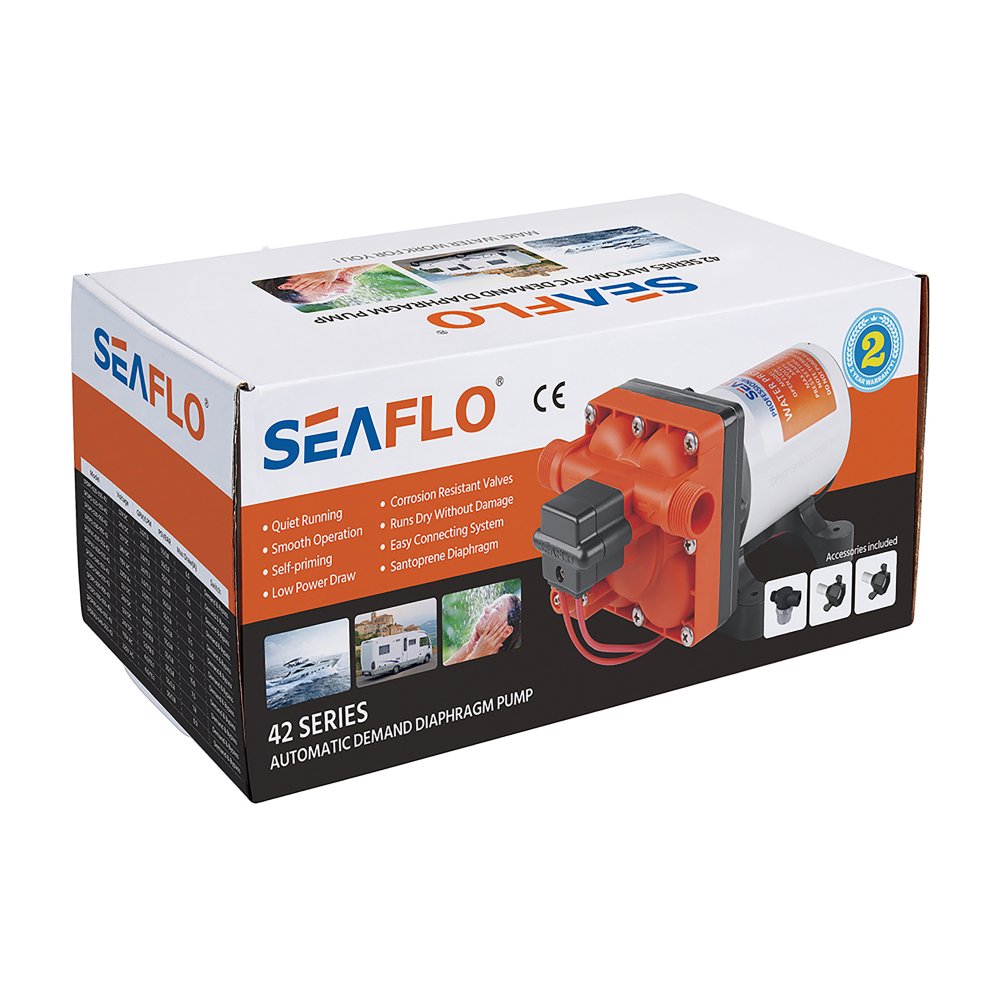

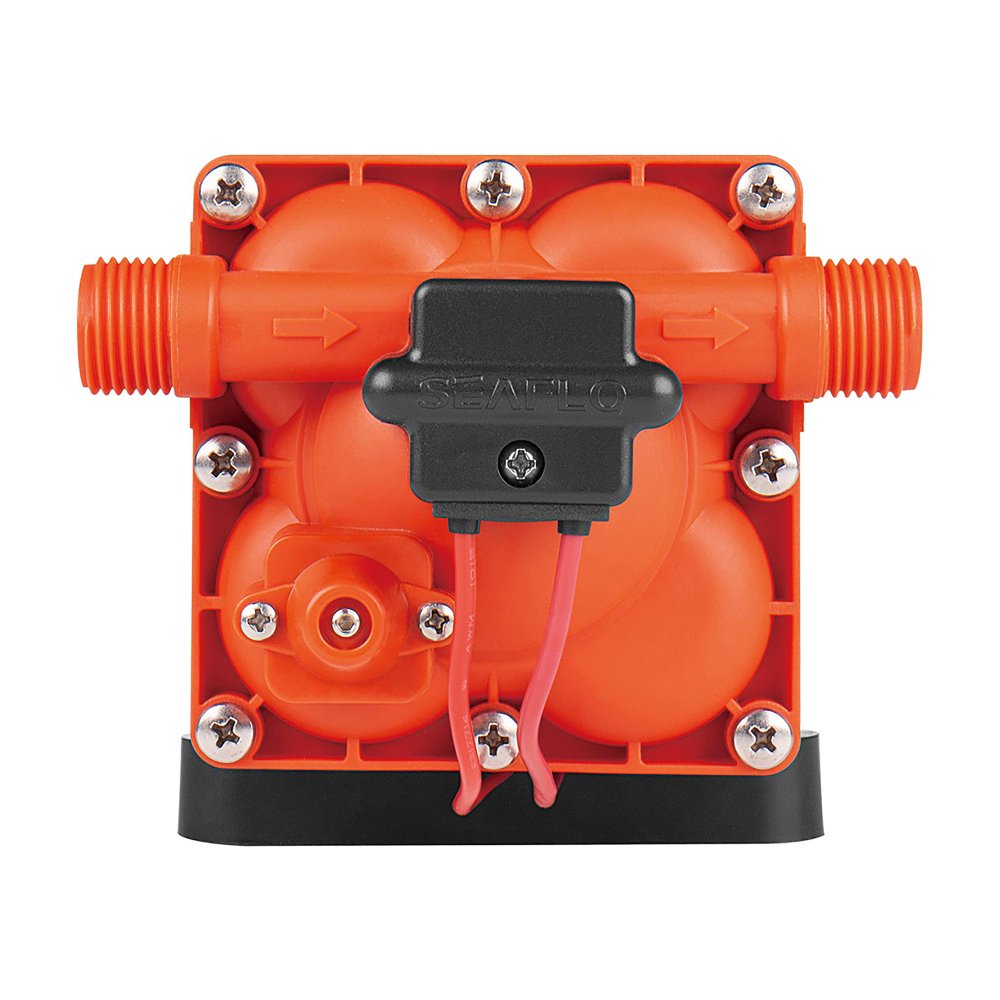

Seaflo Water Pressure Pump - 42 Series 12V 3.0 GPH / 1.3 LPH
Product Overview
The water pressure pump - 42 series has: A 4-chamber diaphragm pump, on-demand long life pressure switch, adjustable pressure switch. Is self-priming and capable of being run dry. Is thermal overload protected and has Marine grade Blocked wiring. Quiet operation with rubber mounting base for vibration and noise reduction.
- Internal bypass technology reduces cycling
- Industry standard mount pattern
- 60°C (140°F) temperature limit
- Shut-off pressure 55 PSI: 41 PSI±5 PSI (±0.3 bar)
- Valves: EPDM Diaphragm: Santoprene Inlet/Outlet Ports: 1/2"-14 MNPT
- Meets or exceeds RoHS, SGS and ISO standards
- 4 Year Warranty
Details
| Weight2 | 1.9 kg (3.0 GPM), 2.7 kg, (4.0 / 5.0 GPM) |
|---|---|
| Qty Per Pack | 1 |
| Brand | Seaflo |
| Qty of Packs | 1 |
| Voltage | 12 V |
| Flow Rate | 3.0 GPH / 11.3 LPH |
| Control Type | Switch & Bypass |
| Wire Connector | 16 AWG x 24 cm |
| Priming Capabilities | 1.8 m / 6' |
| Max Draw | 7.0 A |
| Shut off pressure PSI BAR | 55 / 3.8 |
| Barcode | 6971170932344 |
| Manufacturer Warranty | 4 Years |
