Seaflo
DP201004021

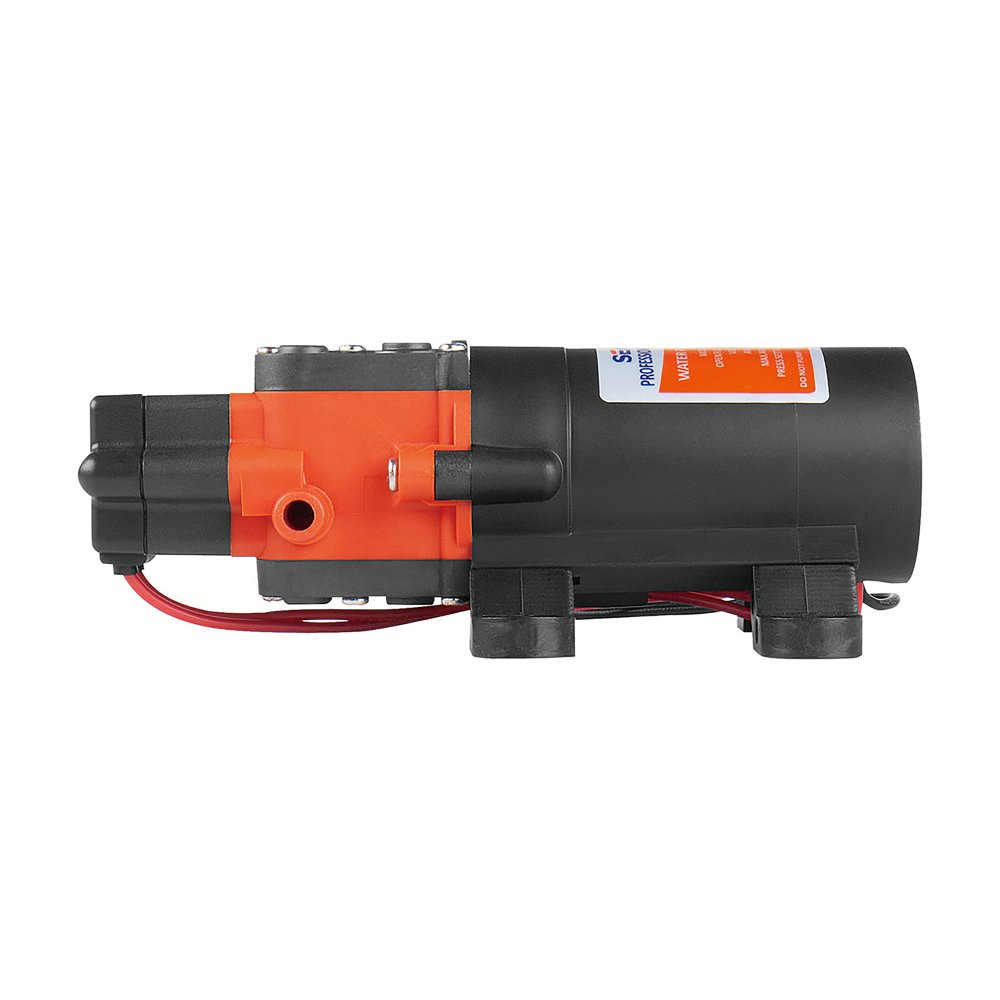

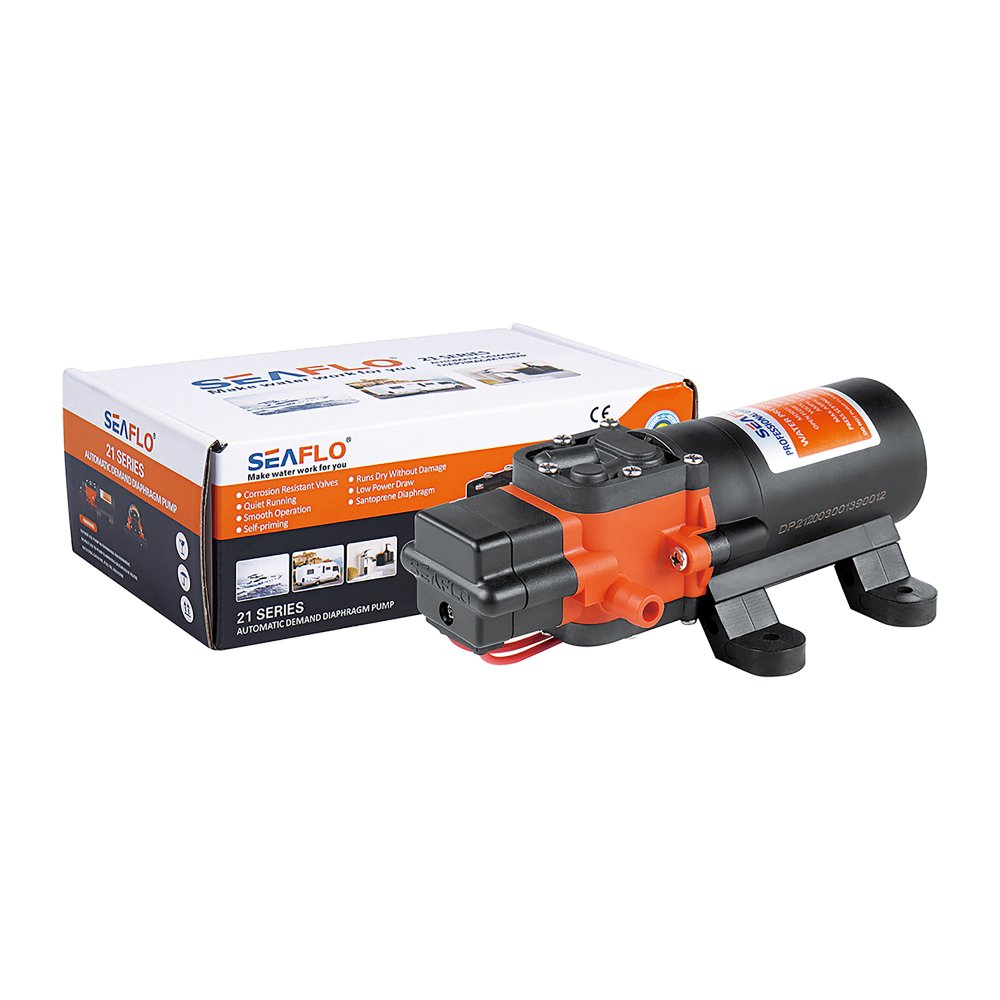

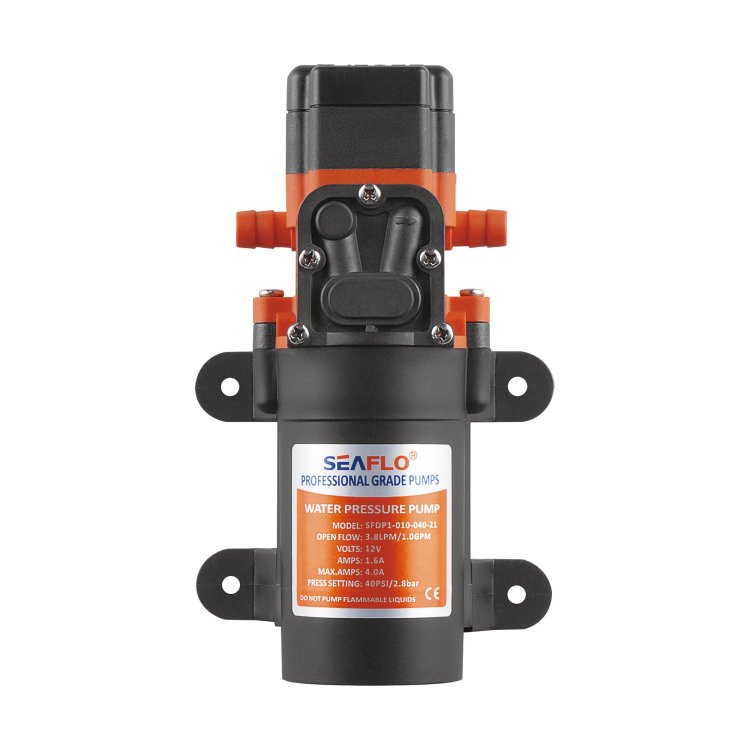

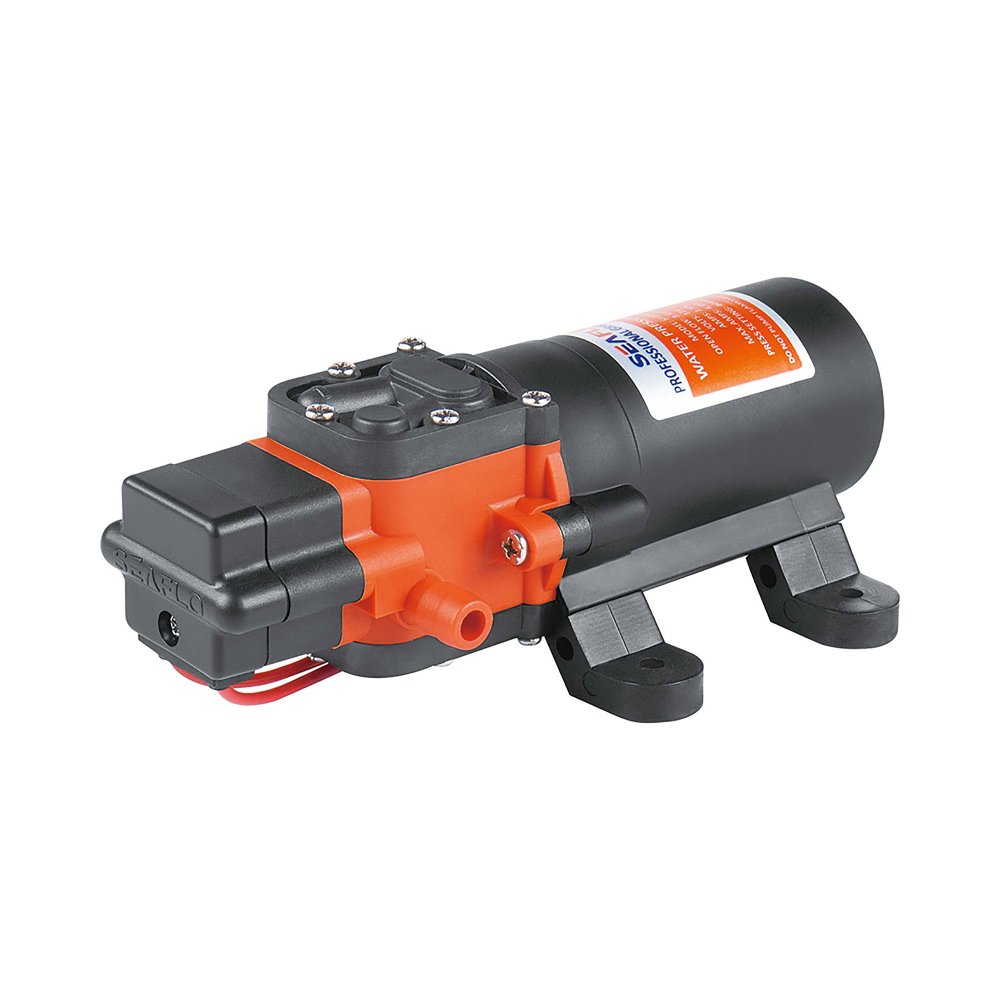

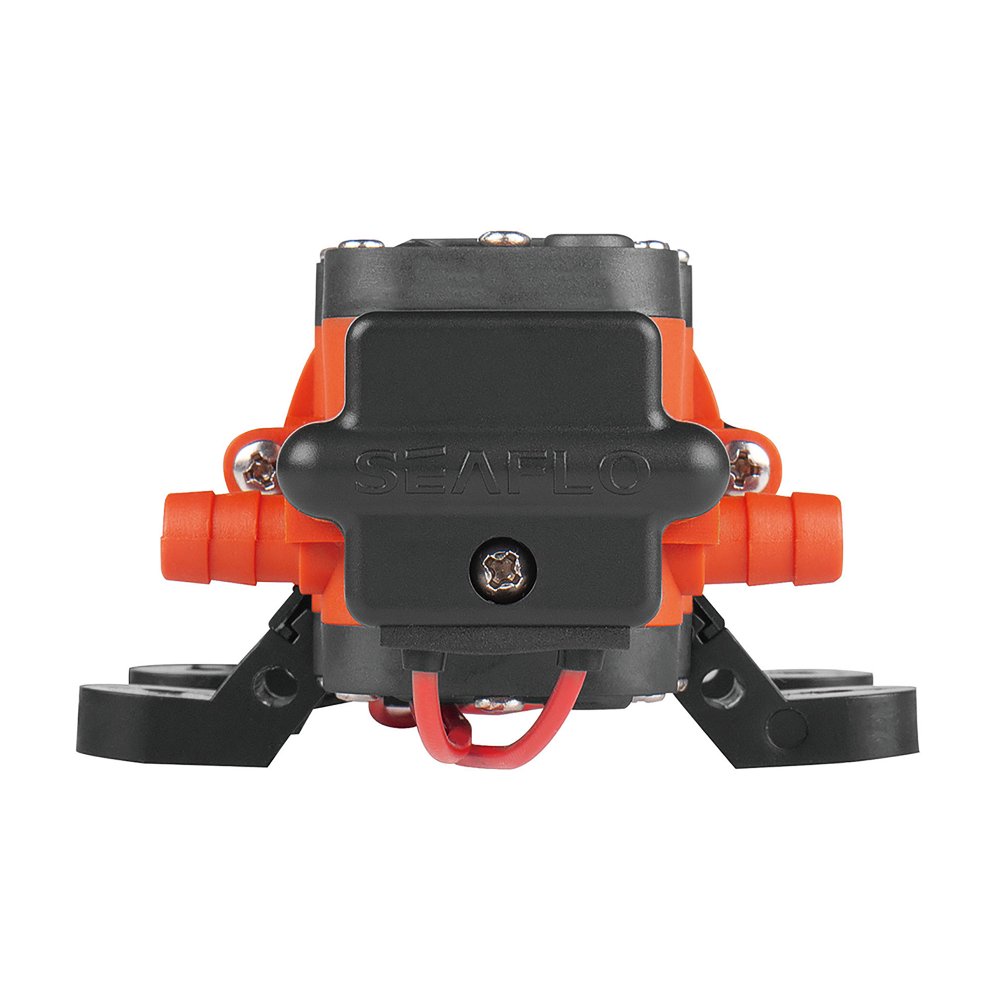

Seaflo Water Pressure Pump - 21 Series 24V 1.0 GPH / 3.8 LPH
Product Overview

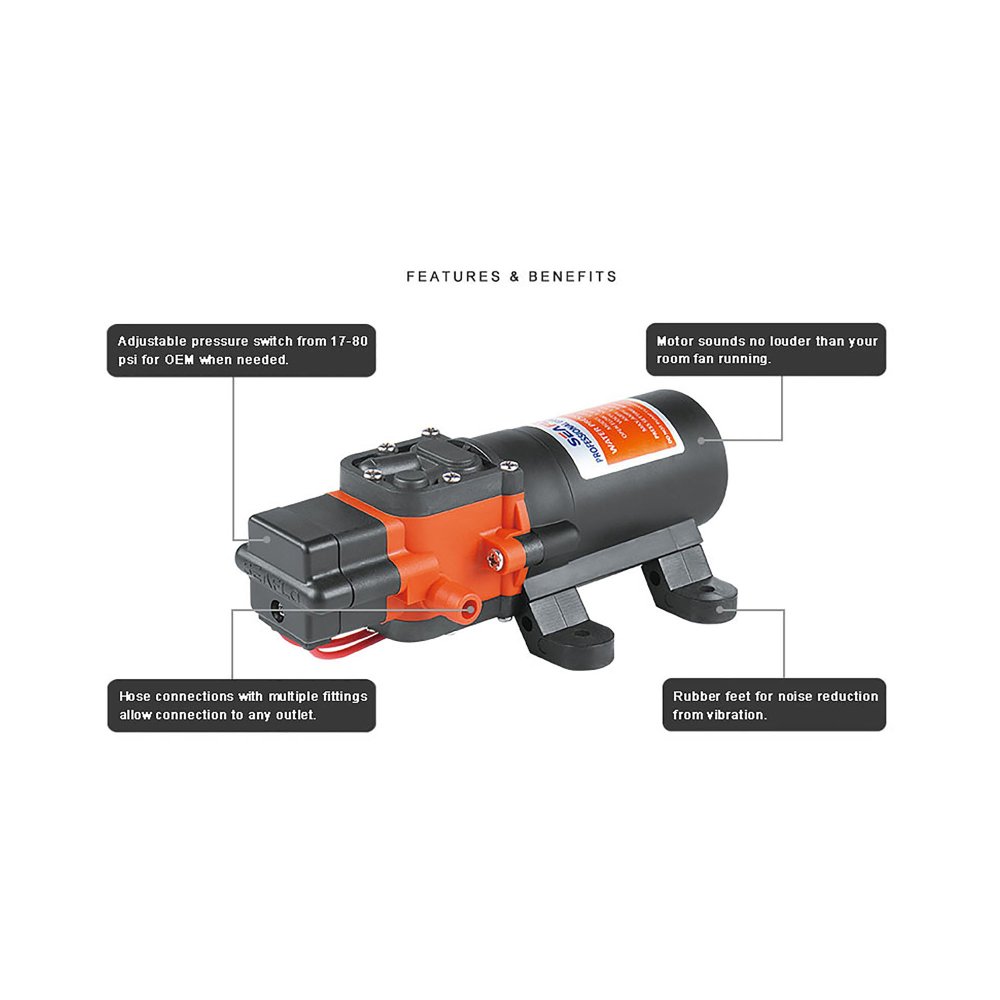

The water pressure pump - 21 series has: An on-demand long life pressure switch, adjustable pressure settings. Is self-priming and capable of being run dry. Has a compact design, ignition protected and quiet operation with rubber feet for vibration and noise reduction.
- 2 Chamber diaphragm pump
- Capable of supplying 1-2 fixtures
- Industry standard mount pattern
- Marine grade blocked wiring
- 43°C (110°F) temperature limit
- Shut-off pressure 35 PSI: 25 PSI±5 PSI (±0.3 bar) Shut-off pressure 40 PSI: 30 PSI±5 PSI (±0.3 bar) Shut-off pressure 70 PSI: 56 PSI±5 PSI (±0.3 bar)
- Valves: EPDM Diaphragm: Santoprene Inlet/Outlet Ports: 10 mm / 3/8" hose barbs
- Meets or exceeds, RoHS, SGS and ISO standards
- 4 Year Warranty
Details
| Weight2 | 600 g |
|---|---|
| Qty Per Pack | 1 |
| Brand | Seaflo |
| Qty of Packs | 1 |
| Voltage | 24 V |
| Flow Rate | 1.0 GPH / 3.8 LPH |
| Control Type | Switch |
| Wire Connector | 18 AWG x 35 cm |
| Priming Capabilities | 1.2 m / 4' |
| Max Draw | 2.0 A |
| Shut off pressure PSI BAR | 40 / 2.8 |
| Barcode | 6971170930029 |
| Manufacturer Warranty | 4 Years |
