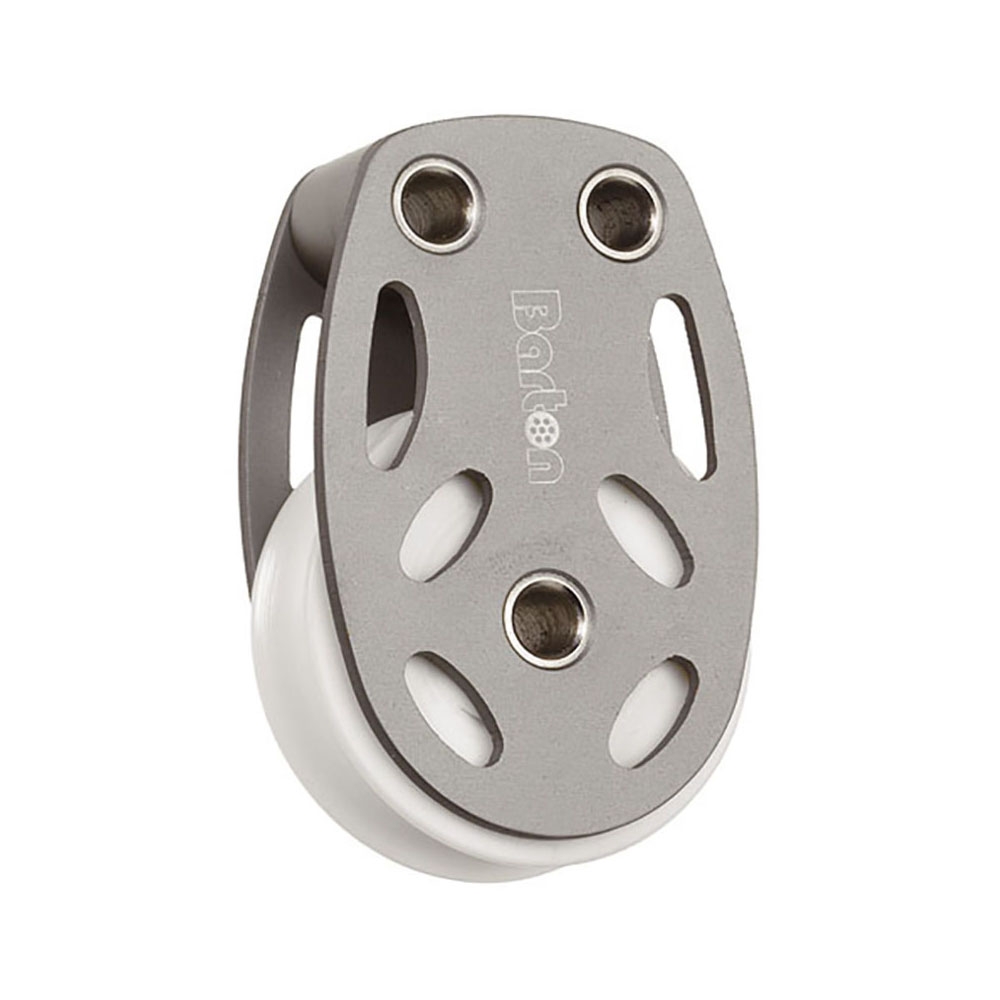

Barton Marine Foot Blocks
Product Overview
Manufactured from marine grade aluminium and grey anodised for high UV stability and durability.
- Hollow stainless steel rivets allow for through-bolt fastening, giving added strength
- Through-bolt mounting also means that these blocks can easily be stacked to achieve double block capabilities. Note: stacking blocks will reduce working loads
- Fastenings of the minimum diameter suggested should be used to gain full load capability
- Ensure that suitable mounting pads are used under deck
Details
| Brand | Barton Marine |
|---|---|
| Packaging Type | Retail Packed |
| Product Code | Product Title | Length | Packaging Type | Breakload | Rope or Wire Diameter | Width | Height | Weight2 | Brand | SWL | Size | Sheave Diameter | Sheave Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BA82995 | Barton Marine Foot Blocks 50 mm | 79 mm | Retail Packed | 1000 kg | 12 mm | 50 mm | 21 mm | 112 g | Barton Marine | 500 kg | 50 mm | 50 mm | 15 mm |
| BA82996 | Barton Marine Foot Blocks 65 mm | 101 mm | Retail Packed | 1600 kg | 16 mm | 65 mm | 25 mm | 208 g | Barton Marine | 800 kg | 65 mm | 65 mm | 18 mm |
| BA82997 | Barton Marine Foot Blocks 85 mm | 130 mm | Retail Packed | 3000 kg | 18 mm | 85 mm | 30 mm | 416 g | Barton Marine | 1500 kg | 85 mm | 85 mm | 21 mm |
