BEP

BEP-777Z10W200

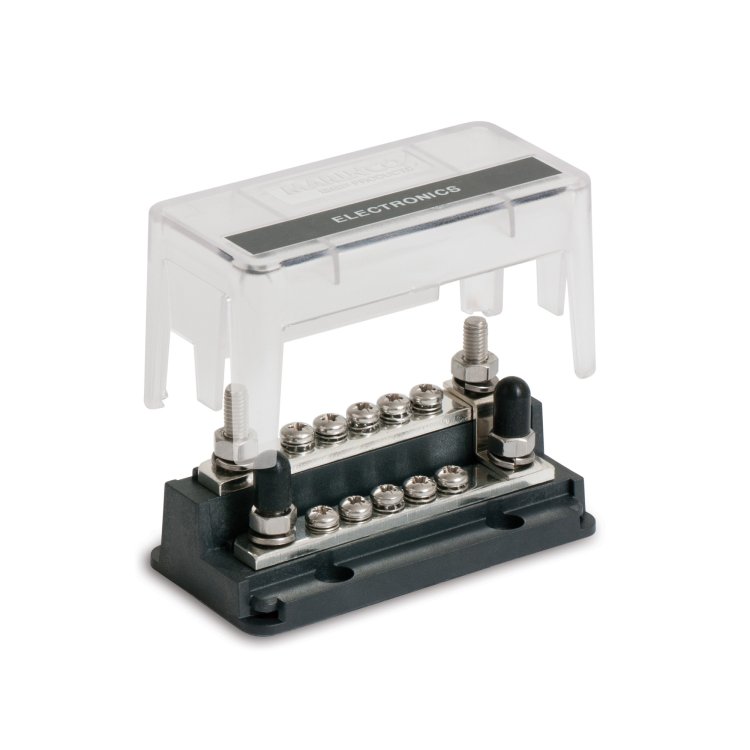

Pro Installer 10-Way, Z Bus Bar

Product Overview

BEP products have created a completely new concept for small cable termination with the Z-bar range. These bus bars maximise power density by utilising high and low level bars to optimise cable runs, saving even more installation space.

  • 10-way and 18-way versions
  • 4 x 6 mm (1/4") studs with anti-seize lubricant
  • 4 mm (5/32") terminals with captive lock washers
  • 200 A maximum per bar (2 x 200 A)
  • 50 V DC
  • Tinned CDA102 Copper conductors
  • Stainless steel studs, washers, nuts for longevity in the marine environment
  • Also available to order in BULK. Code: BEP-777Z10W200B

    • Details

    Brand BEP
    Barcode 843687006732

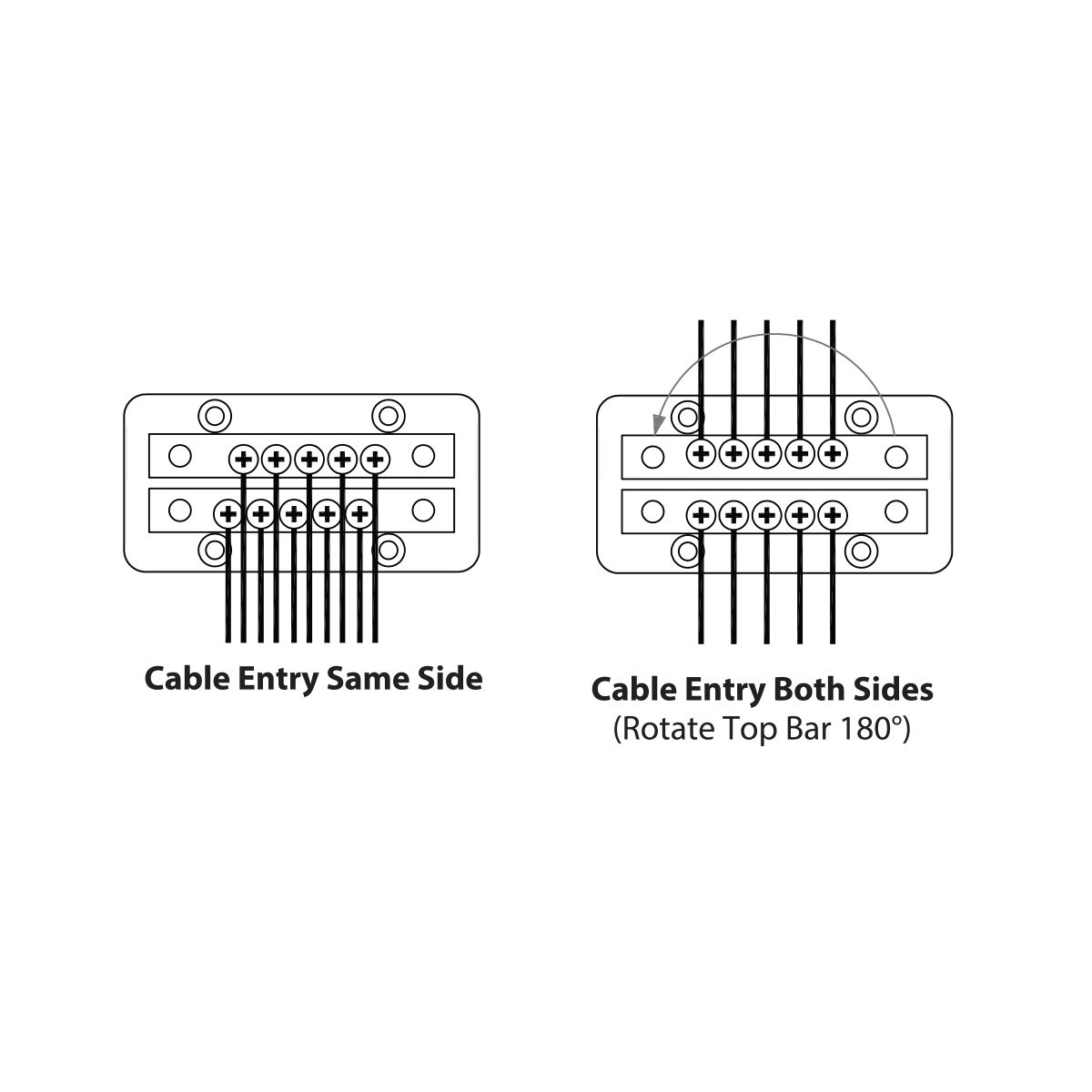

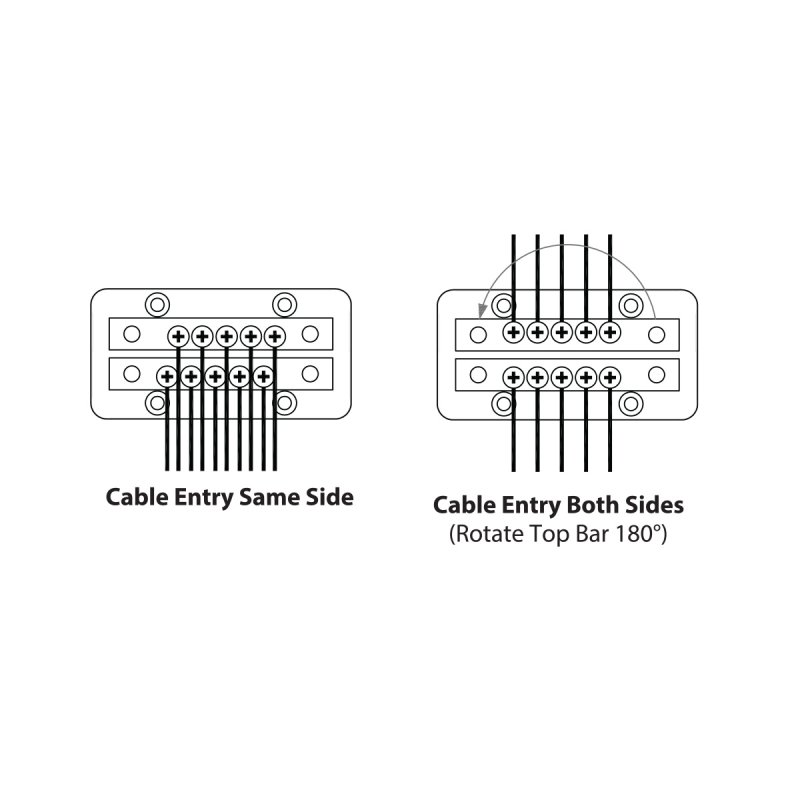

    Technical Diagram: Pro Installer 10-Way, Z Bus Bar
