Seaflo
DP104504041

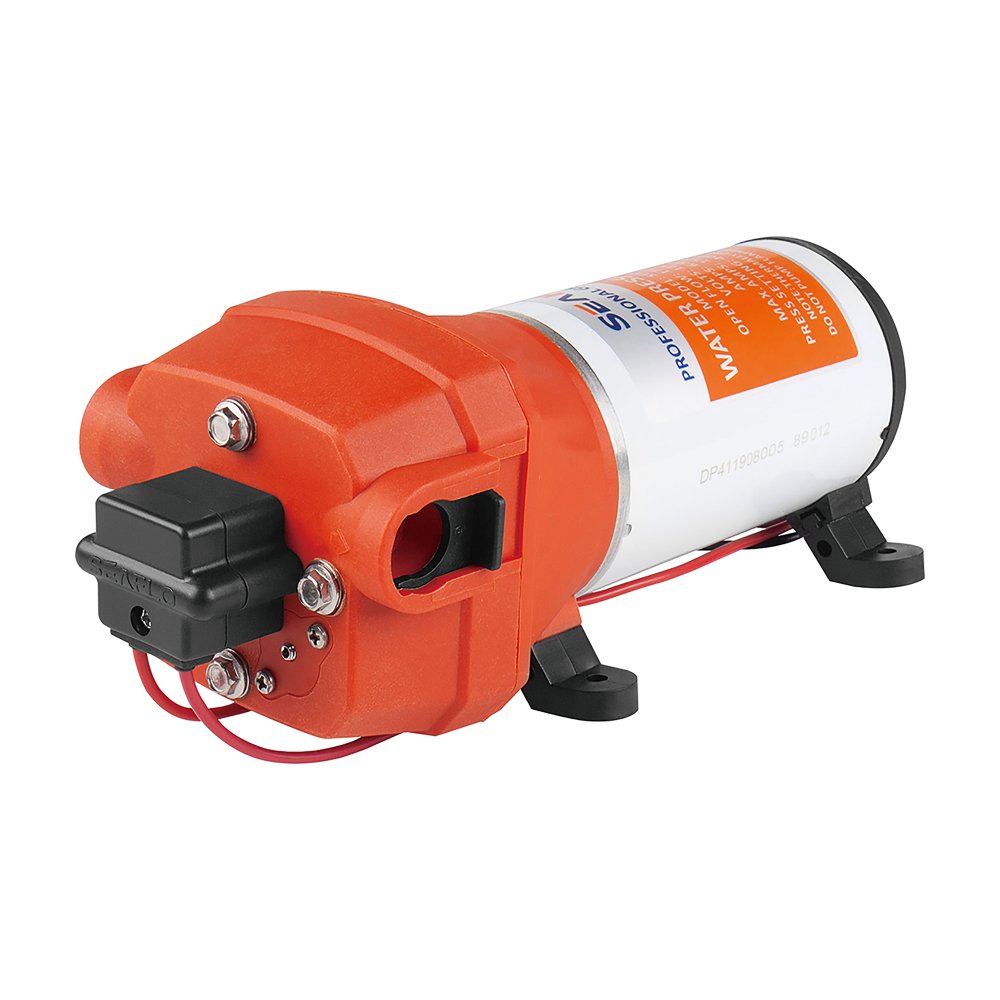

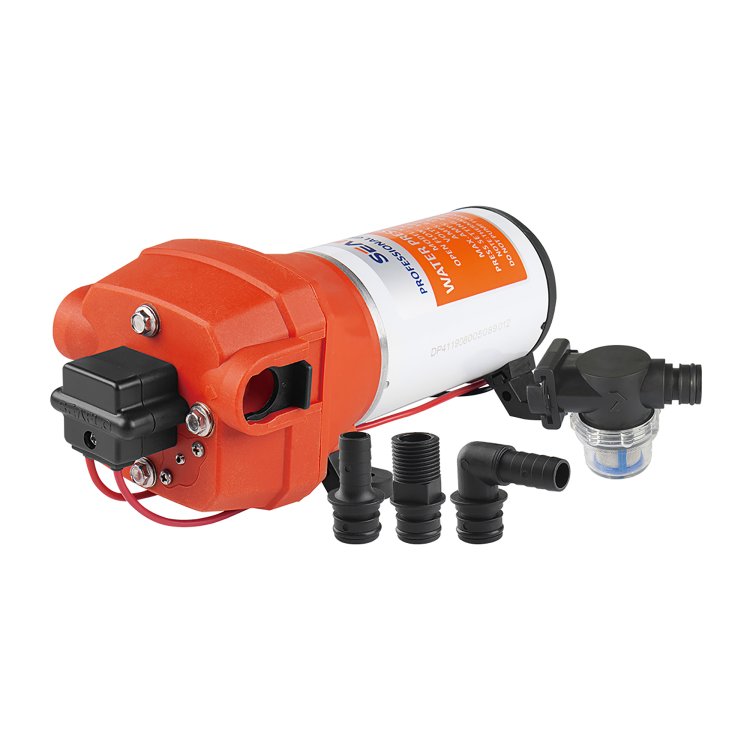

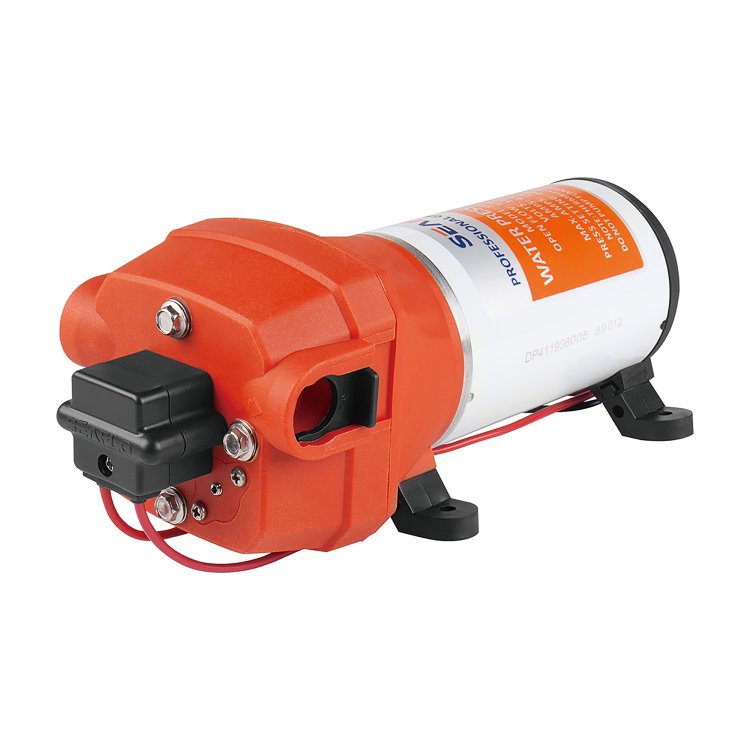

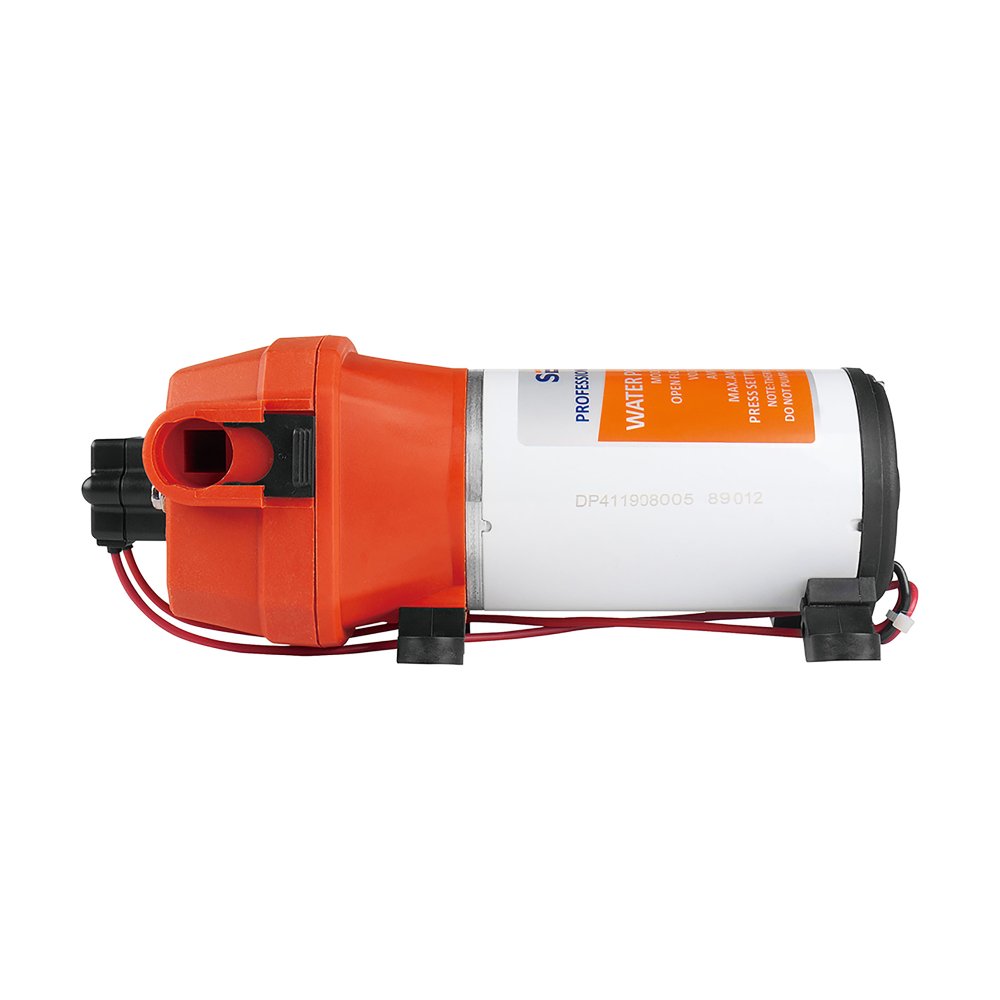

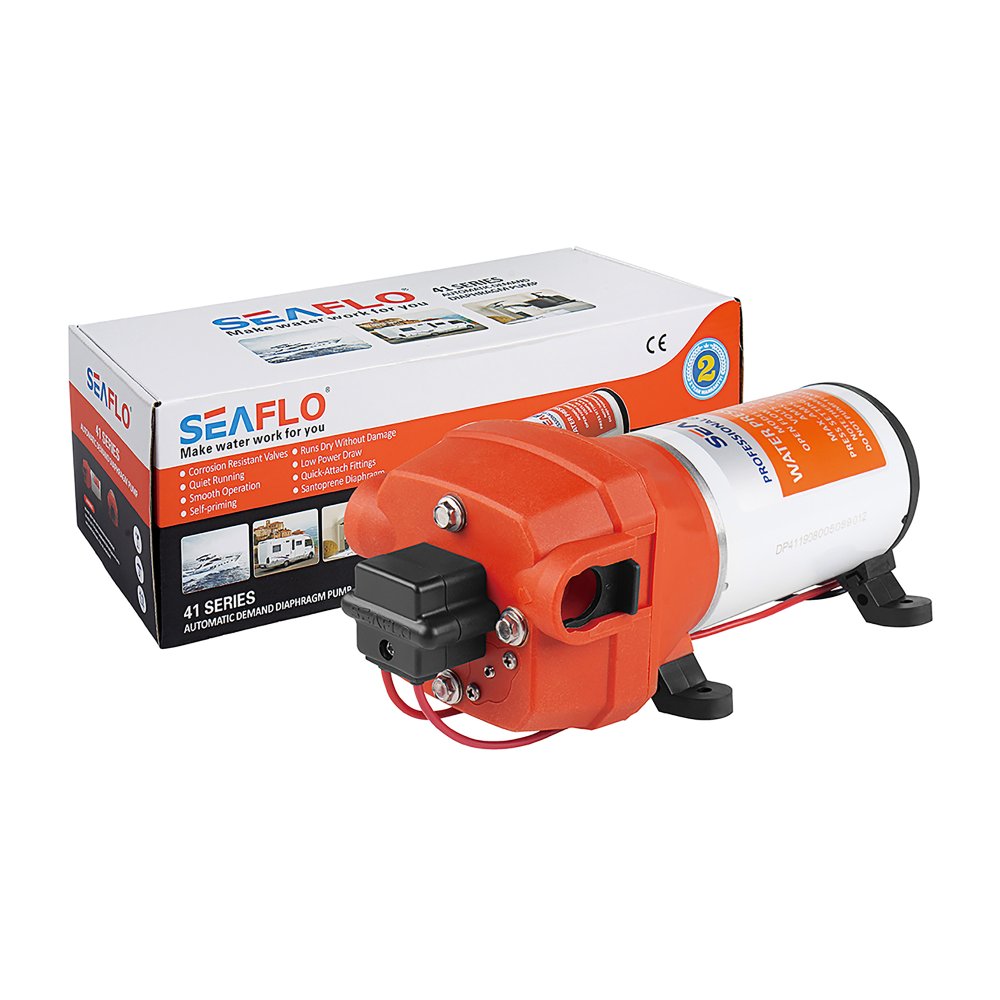

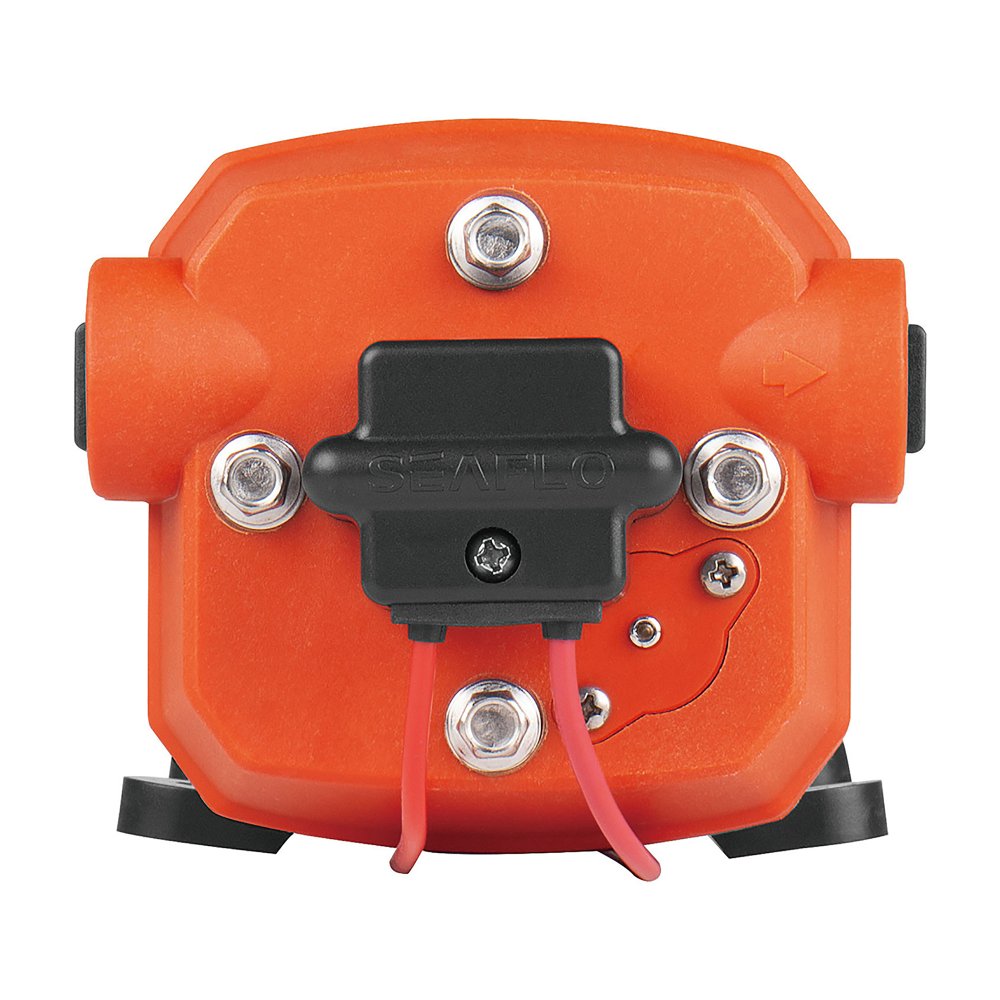

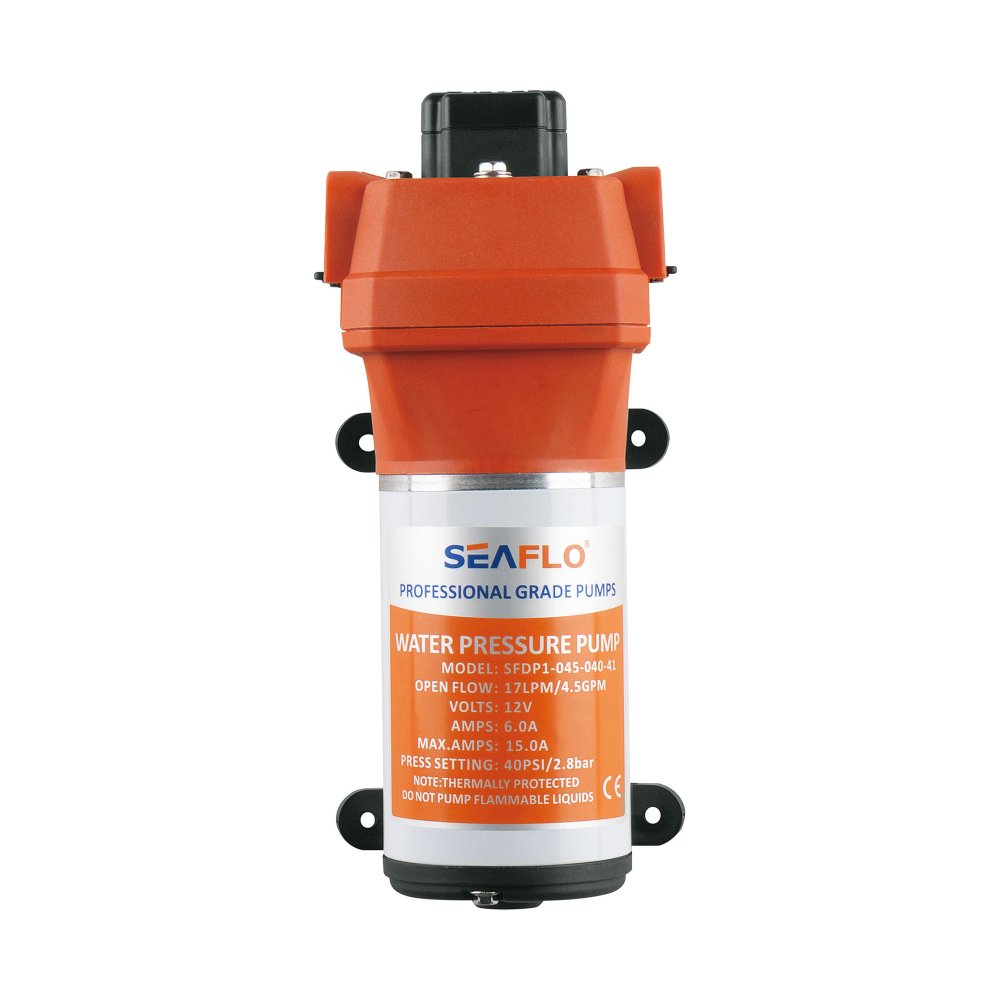

Seaflo Water Pressure Pump - 41 Series 12V 4.5 GPH / 7.0 LPH
Product Overview
The water pressure pump - 41 series has: A 4-chamber diaphragm pump, on-demand long life pressure switch, adjustable pressure switch. Is self-priming and capable of being run dry. Is thermal overload protected and has Marine grade blocked wiring. Quiet operation with rubber feet for vibration and noise reduction.
- Capable of supplying up to 3 fixtures (2.7 / 3.3 GPM models) or up to 4 fixtures (4.5 GPM model).
- Can be used for fresh & salt water Ideal in water systems with no accumulator tank
- Internal bypass technology reduces cycling
- Industry standard mount pattern
- 60°C (140°F) temperature limit
- Shut-off pressure 17 PSI: 9 PSI±5 PSI (±0.3 bar) Shut-off pressure 35 PSI: 25 PSI±5 PSI (±0.3 bar) Shut-off pressure 40 PSI: 30 PSI±5 PSI (±0.3 bar)
- Valves: EPDM Diaphragm: Santoprene Inlet/Outlet Ports: 3/4" Quick-Connect fittings
- Meets or exceeds RoHS, SGS and ISO standards
- 4 Year Warranty
Details
| Weight2 | 1.8 kg (2.7 / 3.3 GPM), 2.3 kg (4.5 GPM) |
|---|---|
| Brand | Seaflo |
| Voltage | 12 V |
| Flow Rate | 4.5 GPH / 17.0 LPH |
| Control Type | Switch & Bypass |
| Wire Connector | 16 AWG x 11.4 cm |
| Priming Capabilities | 1.8 m / 6' |
| Max Draw | 12.13 A |
| Shut off pressure PSI BAR | 40 / 2.8 |
| Barcode | 6971170930968 |
| Manufacturer Warranty | 4 Years |
