Seaflo
DP104006051

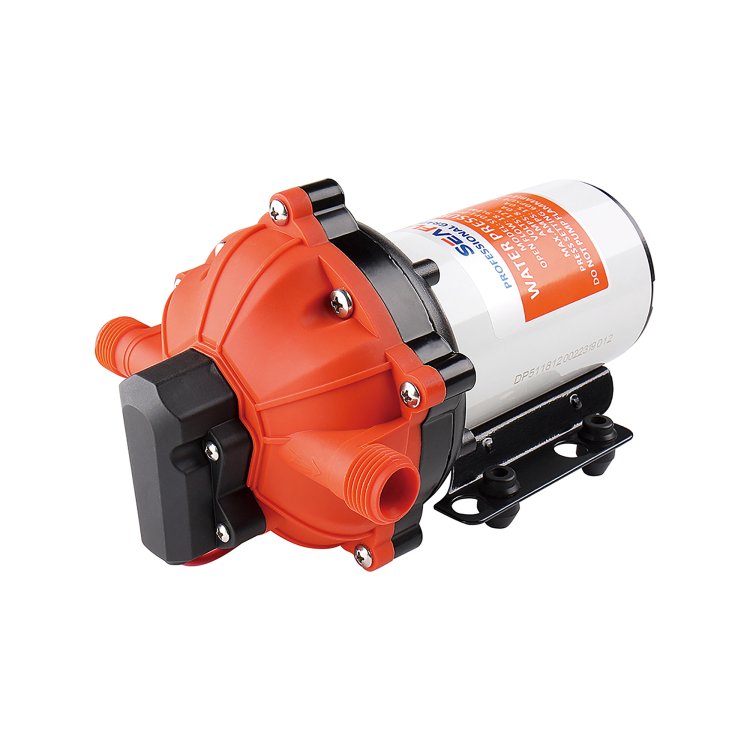

Seaflo Water Pressure Pump - 51 Series 12V 4.0 GPH / 15.0 LPH
Product Overview
The water pressure pump - 51 series: Can supply up to 4 fixtures. A 5-Chamber heavy duty diaphragm pump, on-demand long life pressure switch, precise pressure control and stable performance. Is self-priming and capable of being run dry. Is thermal overload protected and has marine grade blocked wiring. Very quiet operation with rubber mounting base for vibration & noise reduction. Has adjustable position mounting feet, Good heat dissipation and good sealing performance, waterproof and dustproof.
- Can be used for fresh & salt water
- Low starting pressure, reduces cycling
- Ideal in water systems with no accumulator tank
- Marine grade blocked wiring
- 60°C (140°F) temperature limit
- Shut-off pressure 60 PSI: 60 PSI±5 PSI (±0.3 bar)
- Valves: EPDM Diaphragm: Santoprene Inlet/Outlet Ports: 1/2"-14 MNPT
- Meets or exceeds RoHS, SGS and ISO standards
- 4 Year Warranty
Details
| Weight2 | 2.68 kg |
|---|---|
| Brand | Seaflo |
| Voltage | 12 V |
| Flow Rate | 4.0 GPH / 15.0 LPH |
| Control Type | Switch |
| Wire Connector | 16 AWG x 23 cm |
| Priming Capabilities | 1.8 m / 6' |
| Max Draw | 11.0 A |
| Shut off pressure PSI BAR | 60 / 4.2 |
| Barcode | 6971170932399 |
| Manufacturer Warranty | 4 Years |
