Guidi
1522-200002
Guidi Bronze Gate Valve 1/4 in
Product Overview
Standard Guidi gate valve made from with female BSP parallel thread ISO 228. Ideal for controlling the flow of fluids around the vessel although not suitable for use as a sea cock or thru-hull as they can not provide a quick visual reference on whether they are open or closed.
- THREAD : G = ISO 228/1 (BS 2779) BSP
Details
| Weight2 | 170 g |
|---|---|
| Material | Bronze |
| Qty Per Pack | 1 |
| Brand | Guidi |
| Packaging Type | LOOSE |

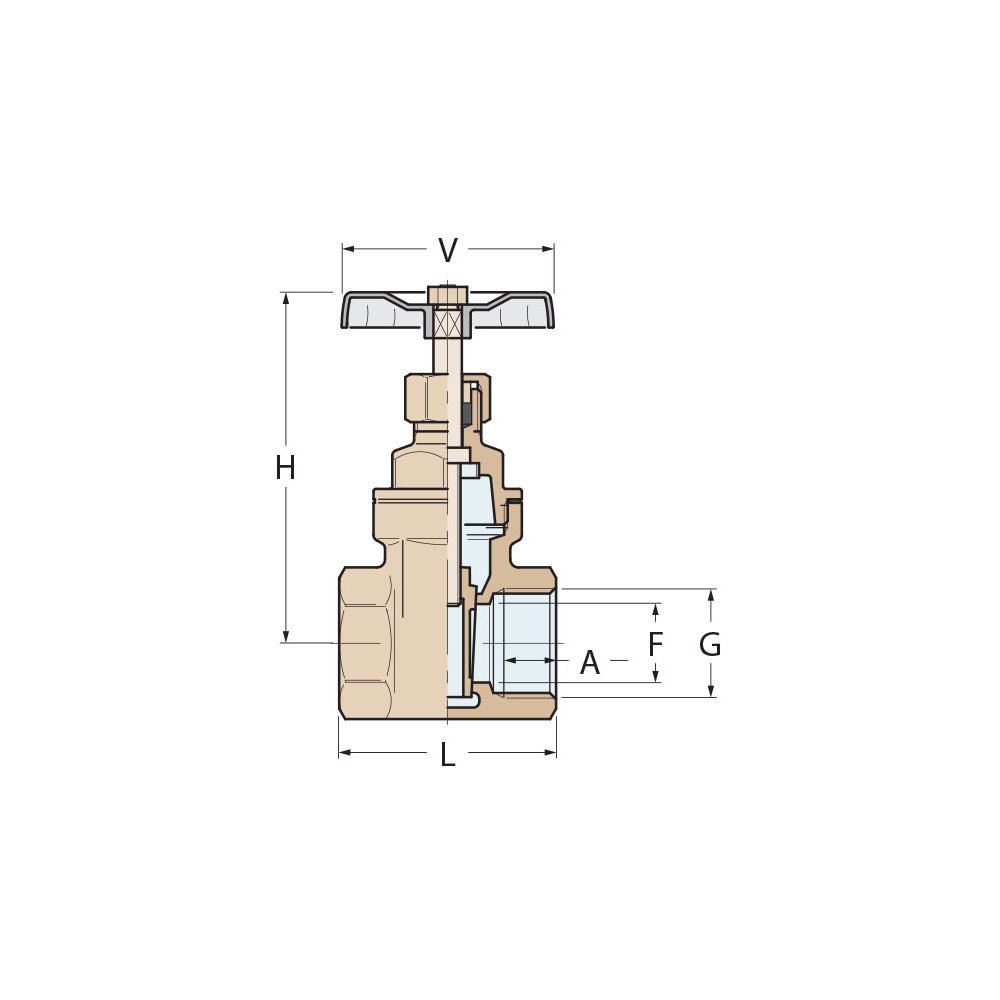

| A | 8 mm |
| F | 11 mm |
| H | 67 mm |
| L | 33 mm |
| G | 1/4 in |
| Range | Loose Packed |
| Size | 1/4" |
| V | 45 mm |
| Barcode | 0001522200002 |
